2920-00-674-6977
Engine Accessory Generator
2920006746977 006746977 1117715
A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT. View more Engine Accessory Generator
January 2023
16
Marketplace 2920-00-674-6977
Request a Quotation from participating marketplace vendors
Related Documents 2920-00-674-6977 3+ Documents (More...)
Every Day 2920-00-674-6977 RQST Updated Every Day 2920-00-674-6977 RQST NE Related Documents 2920-00
Accessory Generator 2920006746977 (Identification) 1/2 NSN 2920-00-674-6977 (Identification) 2/2 - -
Engine Accessory Generator 2920006746977 day Upgrade your Account Upgrade 2920-00-674-6977Engine
Accessory Generator2920006746977 006746977 1117715 GENERATOR,ENGINE ACCESSORY 2 EA NS Request Quotation
Restrictions 2920-00-674-6977
2920-00-674-6977 is a Engine Accessory Generator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2920-00-674-6977
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-00-674-6977
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 2920-00-674-6977
- Part Number
- Manufacturer
- Status
- 1117715
- Manufacturer
- 16764 - General Motors Corp Delco Remy Div (Replaced)
- Original Design
- Original Design
- 1117715
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1117715
- 61928 - General Motors Corp Ac-Delco Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1117715
- 1LW55 - Borgwarner Pds (Anderson), L.L.C. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 2920-00-674-6977
- Characteristic
- Specifications
- FIIG
- Specifications
- A14700
- Distance From Raised Face To Second Mounting Center [BCMK]
- 7.125 Inches Nominal
- Distance From Raised Face To First Mounting Hole Center [BCGW]
- 3.125 Inches Nominal
- Angular Deviation Of First Hole From Top Center In Deg [BCMB]
- 38.0
- Angular Deviation Of Second Hole From First Hole In Deg [BCMC]
- 60.0
- Angular Deviation Of Third Hole From Second Hole In Deg [BCML]
- 164.0
- Armature Minimum Speed In Rpm At Full Current Output [BCGD]
- 1100
- Ground Polarity Type [AXHX]
- Negative
- Grounding Method [BCGN]
- Internal Or External
- Maximum Rated Armature Speed In Rpm [BCND]
- 2500
- Mounting Hole Thread Direction [ACJC]
- Right-Hand
- Mounting Hole Thread Class [CMLN]
- 2B
- Mounting Hole Thread Diameter [CMLL]
- 0.312 Inches Nominal
- Mounting Hole Thread Quantity Per Inch [CMLM]
- 18
- Mounting Hole Thread Series Designator [CMLK]
- Unc

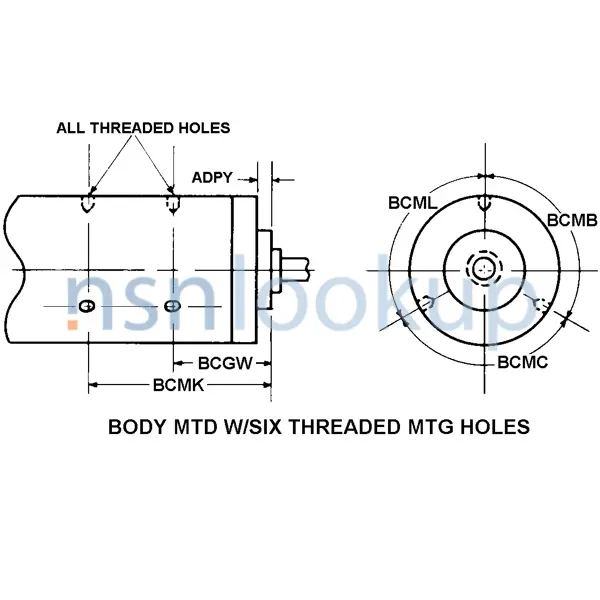

- Mounting Style [ADER]
- Body Mtd W/Six Threaded Mtg Holes
- Second Step Diameter [ABPT]
- 0.875 Inches Nominal
- Shaft Drive End Style [BCGS]
- Straight Shaft End, Threaded
- Shaft Rotation Direction [AKCT]
- Clockwise
- Special Features [FEAT]
- Two Additional Mtg Holes Located 60 Deg From Third Row Of Holes
- Voltage In Volts [ELEC]
- 12.0
- Submersibility [AHZV]
- Nonsubmersible
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [CFHL]
- 2A
- Thread Diameter [AWDP]
- 0.625 Inches Nominal
- Thread Length [AASA]
- 0.840 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 18
- Thread Series [BZRR]
- Unf
Similar Supply Items to 2920-00-674-6977
Freight Information 2920-00-674-6977
2920-00-674-6977 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of Z. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI. 2920-00-674-6977 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. 2920-00-674-6977 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 590 for ocean manifesting and military sealift. 2920-00-674-6977 is not classified as a special type of cargo when transported by water. 2920-00-674-6977 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
