2920-00-640-7889
Engine Accessory Generator
2920006407889 006407889 E59426M
A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT. View more Engine Accessory Generator
May 2023
8
Marketplace 2920-00-640-7889
Request a Quotation from participating marketplace vendors
Related Documents 2920-00-640-7889 1+ Documents (More...)
RQST NE Updated Every Day 2920-00-640-7889 RQST Updated Every Day 2920-00-640-7889 RQST NE Related Documents
2920-00-640-7889 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-29/fsc-2920/us 2920-00-640-7889
Restrictions 2920-00-640-7889
2920-00-640-7889 is a Engine Accessory Generator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2920-00-640-7889
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-00-640-7889
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 2920-00-640-7889
- Part Number
- Manufacturer
- Status
- E59426M
- Manufacturer
- 12204 - Chrysler Realty Company Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 2920-00-640-7889
- Characteristic
- Specifications
- FIIG
- Specifications
- A14700
- Distance From End To First Keyway Center [BCMW]
- 0.312 Inches Nominal
- Distance From End To Second Keyway Center [BCMZ]
- 1.562 Inches Nominal
- Bottom Mounting Hole Diameter [BCMH]
- 0.406 Inches Nominal
- Center To Center Distance Between Mounting Slots [AGAW]
- 3.250 Inches Nominal
- Center To Center Distance Between Top Mounting Slot And Bottom Mounting Hole [BCMJ]
- 5.375 Inches Nominal
- Cotter Pin Hole [BCGT]
- Included
- Distance Between Shaft Center And Bottom Mounting Hole Center [BCLY]
- 2.812 Inches Nominal
- First Keyway Width [BCMX]
- 0.125 Inches Nominal
- First Keyway Length [BCMY]
- 0.500 Inches Nominal
- First Step Diameter [ABPR]
- 0.499 Nominal Inches
- First Step Length [ABPS]
- 0.562 Nominal Inches
- Grounding Method [BCGN]
- External
- Maximum Rated Armature Speed In Rpm [BCND]
- 1500
- Mounting Style [ADER]
- Flange Mtd W/Two Mtg Slots And One Mtg Hole
- Maximum Output Current Rating In Amps [BCGF]
- 12.0
- Second Keyway Length [BCNB]
- 0.625 Inches Nominal
- Second Keyway Width [BCNC]
- 0.156 Inches Nominal

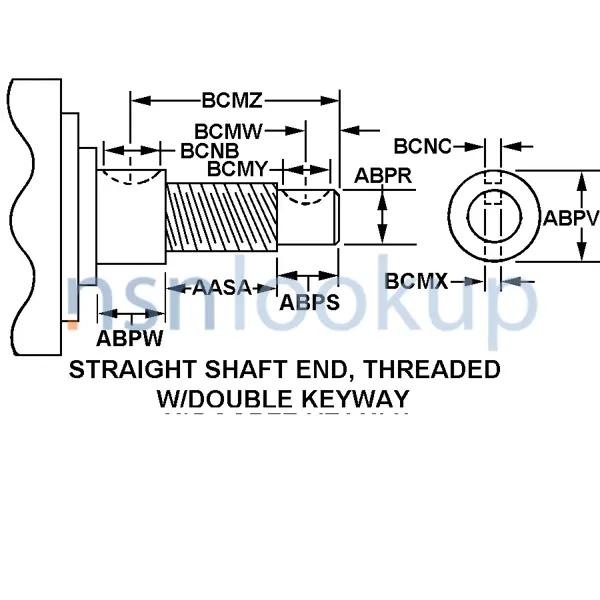

- Shaft Drive End Style [BCGS]
- Straight Shaft End, Threaded W/Double Keyway
- Shaft Rotation Direction [AKCT]
- Clockwise
- Slot Length [ABGD]
- 1.750 Inches Nominal
- Slot Width [ABGC]
- 0.438 Inches Nominal
- Pilot Diameter [AAVL]
- 3.624 Inches Nominal
- Pilot Height [ADPY]
- 0.188 Nominal Inches
- Voltage In Volts [ELEC]
- 12.0
- Submersibility [AHZV]
- Nonsubmersible
- Third Step Diameter [ABPV]
- 0.750 Inches Nominal
- Third Step Length [ABPW]
- 0.750 Nominal Inches
- Thread Class [CFHL]
- 2A
- Thread Diameter [AWDP]
- 0.625 Inches Nominal
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.438 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 18
- Thread Series [BZRR]
- Unf
DLA Procurement Analysis 2920-00-640-7889
Management Data 2920-00-640-7889
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 2920-00-640-7889
Freight Information 2920-00-640-7889
2920-00-640-7889 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of Z. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI. 2920-00-640-7889 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. 2920-00-640-7889 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 590 for ocean manifesting and military sealift. 2920-00-640-7889 is not classified as a special type of cargo when transported by water. 2920-00-640-7889 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
