2920-00-540-5321
Ignition Coil
2920005405321 005405321 26050759 1115285 22HS702 22HS759
An item specifically designed to produce the high voltage necessary to provide a spark for igniting combustible mixtures, primarily in internal combustion engines. View more Ignition Coil
May 2023
17
Marketplace 2920-00-540-5321
Request a Quotation from participating marketplace vendors
Related Documents 2920-00-540-5321 5+ Documents (More...)
FedMall Updated Every Day 1115285 RQST NE Updated Every Day 2920-00-540-5321 RQST NE Updated Every Day
2920-00-540-5321 RQST Updated Every Day 2920-00-540-5321 RQST NE Related Documents 2920-00-540-5321
2920-00-706-4795 Ignition Coil 2920007064795 007064795 www.nsnlookup.com /fsg-29/fsc-2920/us 2920-00-540-5321
Ignition Coil 2920005405321 005405321 Coil2920008916730 008916730 Cancelled - Replaced by NSN 2920
Documents 2920-00-706-4795 2+ Documents ( More https//www.nsnlookup.com /fsg-29/fsc-2920/us 2920-00-540-5321
Ignition Coil 2920005405321 005405321 Coil2920008916730 008916730 Cancelled - Replaced by NSN 2920
www.nsnlookup.com /fsg-29/fsc-2920/us 2920 https// https//www.nsnlookup.com /fsg-29/fsc-2920/us 2920-00-540-5321
Ignition Coil 2920005405321 005405321 5321 RQST NE Related Documents 2920-00-540-5321 https//www.nsnlookup.com
Ignition Coil 2920005405321 005405321 2920-00-540-5321 DEMIL https//www.nsnlookup.com https//www.nsnlookup.com
Navy (DN)NZDiscontinued-Use 2920-00-540-5321Defense Logistics Agency (DS)IZDiscontinued-Use 2920-00-540-5321
Restrictions 2920-00-540-5321
2920-00-540-5321 is a Ignition Coil that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2920-00-540-5321
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-00-540-5321
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
Approved Sources 2920-00-540-5321
- Part Number
- Manufacturer
- Status
- 1115285
- Manufacturer
- 1LW55 - Borgwarner Pds (Anderson), L.L.C. (Active)
- Primary Buy
- Primary Buy
- 26050759
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 22HS702
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 22HS759
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 1115285
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 22HS702
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 26050759
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 22HS759
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1115285
- 61928 - General Motors Corp Ac-Delco Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1115285
- 16764 - General Motors Corp Delco Remy Div (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2920-00-540-5321
- Characteristic
- Specifications
- FIIG
- Specifications
- T130-D
- Center To Center Distance Between First And Second Mounting Holes [AXPC]
- 2.000 Inches Nominal
- Dc Primary Voltage Rating [ARLX]
- 24.0 Volts Nominal
- Diameter [ABMZ]
- 3.120 Inches Nominal
- Distance From Base Of Coil To Mounting [AXPF]
- 3.190 Inches Nominal
- Environmental Protection [ADZC]
- Hermetically Sealed And Corrosion Resistant And Fungus Resistant
- Filling Medium [ARPA]
- Oil
- First Mounting Hole Diameter [AXHP]
- 0.312 Inches Nominal
- Ground Terminal [ARNY]
- Not Provided
- Height [HGTH]
- 6.920 Inches Nominal
- High Voltage Terminal Quantity [ARLZ]
- 1
- High Voltage Terminal Type [ARLY]
- Threaded Sleeve
- Mounting Removability [ARPC]
- Nonremovable
- Inclosure Material Type [AKPZ]
- Metallic
- Low Voltage Terminal Quantity [ARMB]
- 2
- Low Voltage Terminal Type [ARMA]
- Threaded Stud
- Radio Interference Shielding [ALBH]
- Not Provided
- Second Mounting Hole Diameter [AXNZ]
- 0.312 Inches Nominal

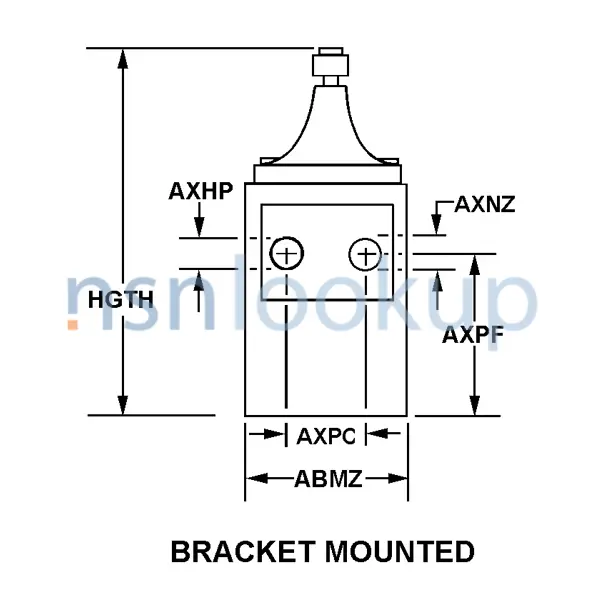

- Style Designator [STYL]
- Bracket Mounted
- Submersibility [AHZV]
- Nonsubmersible
DLA Procurement Analysis 2920-00-540-5321
Management Data 2920-00-540-5321
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 2920-00-540-5321
Freight Information 2920-00-540-5321
2920-00-540-5321 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063120. A Sub NMFC of X. It has a NMFC Description of SPARK COILS IN BOXES/PKGS 1241/1273. 2920-00-540-5321 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35190 which rates the freight between FCL and LCL. 2920-00-540-5321 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2920-00-540-5321 is not classified as a special type of cargo when transported by water. 2920-00-540-5321 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2920-00-540-5321
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 2920-00-540-5321 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
