2920-00-487-9461

Electrical Engine Starter Relay-Solenoid

2920004879461 004879461 11668620 SLV1000 SX7EG1 SX73G1 5X7EG1

An item having a moving plunger type core which travels parallel to the longitudinal axis of the coil(s), and which is primarily designed to perform the dual function of closing the circuit of a STARTER, ENGINE, ELECTRICAL and actuating the starter engaging mechanism. It must have provisions for attaching the mechanical linkage for actuating the engaging mechanism if the linkage is not included. May have provisions for manual actuation. Without contacts this item is known as a SOLENOID, ELECTRICAL. Without provisions for attaching mechanical linkage this item is known as a RELAY, ELECTROMAGNETIC. See also SWITCH, ENGINE STARTER, ELECTRICAL. View more Electrical Engine Starter Relay-Solenoid

2920-00-487-9461 RELAY-SOLENOID,ENGINE STARTER,ELECTRICAL 2920004879461 004879461

Managed by United States
NSN Created on 27 Jun 1974
Data Last Changed
November 2023
NATO Update Count
26
NATO Data Quality
2920-00-487-9461 RELAY-SOLENOID,ENGINE STARTER,ELECTRICAL 2920004879461 004879461 1/1
2920-00-487-9461 Photo 1/1

2920-00-487-9461 Product Information Product Information 2920-00-487-9461

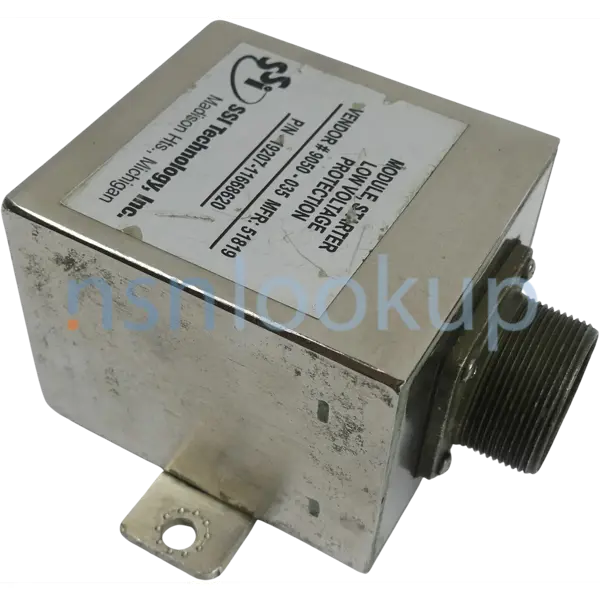

Starter Protection Relay, Under-Voltage, used on the AVDS-1790-2D, AVDS-1790-2DA, AVDS-1790-2C, AVDS-1790-2CA and AVDS-1790-2DR engines found in the M48, M60 and M88 vehicles.
