2920-00-462-4848
Electrical Engine Starter
2920004624848 004624848 1114667 101863-1
An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL. View more Electrical Engine Starter
May 2023
10
Marketplace 2920-00-462-4848
Request a Quotation from participating marketplace vendors
Related Documents 2920-00-462-4848 1+ Documents (More...)
(Identification) 1/2 NSN 2920-00-462-4848 (Identification) 2/2 - - 1.
STARTER,ENGINE,ELECTRICAL RQST NS Request Quotation Updated Every Day 2920-00-462-4848 RQST NE
Restrictions 2920-00-462-4848
IUID Required
2920-00-462-4848 is a Electrical Engine Starter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2920-00-462-4848
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-00-462-4848
- US Navy (N2H4)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- NSUS
- Spain (YB01)
- Effective Date:
- 1 Sep 2009
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2014
Approved Sources 2920-00-462-4848
- Part Number
- Manufacturer
- Status
- 1114667
- Manufacturer
- 1Y875 - Southern Automotive Wholesalers, Inc (Active)
- Primary Buy
- Primary Buy
- 101863-1
- 11083 - Caterpillar Inc (Active)
- Primary Buy
- Primary Buy
- 1114667
- 16764 - General Motors Corp Delco Remy Div (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2920-00-462-4848
- Characteristic
- Specifications
- FIIG
- Specifications
- A23400

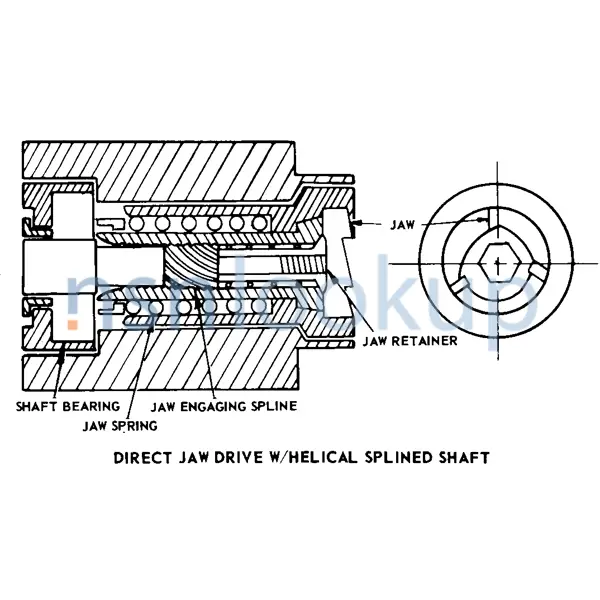

- Engaging Mechanism Style [AKCP]
- Direct Jaw Drive W/ Helical Splined Shaft
- Mounting Flange Shape Style [ADMD]
- Triangular
- Mounting Hole Diameter [ABTB]
- 0.534 Inches Nominal
- Mounting Hole Circle Radius [ABUH]
- 0.690 Inches Nominal
- Mounting Flange Angular Deviation In Deg [AKDB]
- 41.0
- Voltage In Volts [ELEC]
- 24.0
- Shaft Rotation Direction [AKCT]
- Counterclockwise
- Terminal Type And Quantity [TTQY]
- 4 Threaded Stud
- Fsc Application Data [ZZZV]
- Engine Electrical System Components,Nonaircraft
Management Data 2920-00-462-4848
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Jan 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- L
- R
- Refer To Net Price 1470.00
- NET PRICE 1470.00
- R
Navy
- Cognizance:
- 7H
- Special Material ID:
- TD
- Peculiar spares and repair parts in support of cognizance symbol 20 training equipment
- Issue, Repair, Requisition Restriction Code:
- BL
- Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipment
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 2920-00-462-4848
Freight Information 2920-00-462-4848
2920-00-462-4848 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of C. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI SUB3. 2920-00-462-4848 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. 2920-00-462-4848 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2920-00-462-4848 is not classified as a special type of cargo when transported by water. 2920-00-462-4848 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2920-00-462-4848
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- Wood Blocking and Bracing, Fasteners, or Steel Strapping, for Tie-down purposes. Rubber tired wheels shall be blocked clear of the floor of the crate or skid and shall not be load bearing
- Not Applicable
- ASTM-D6880, Class 2, Heavy Duty Wood Box
- Method 50
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
