2920-00-248-8815
Spark Plug
2920002488815 002488815 WS506 16L 50922 50331E DL8 14L DL8C
An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE. View more Spark Plug
May 2023
18
Marketplace 2920-00-248-8815
Request a Quotation from participating marketplace vendors
Related Documents 2920-00-248-8815 5+ Documents (More...)
WS506 SPARK PLUG 63 EA NS Request Quotation Subscribe to View Vendor Details... 50922 SPARK PLUG 6 EA
WS506 SPARK PLUG 27 EA NS Request Quotation Updated Every Day 16L RQST NE Updated Every Day 14L RQST
Spark Plug 2920002488815 002488815,WS506,16L 002488815WS506 Plug Managed by United States NSN Created
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NZDiscontinued-Use 2920-00-248-8815
https//www.nsnlookup.com /fsg-73/fsc-7330/no 7330-25-101-2421 Cooking Pot 7330251012421 251012421,716-14L
https//www.nsnlookup.com /fsg-73/fsc-7330/no 7330-25-101-2421 Cooking Pot 7330251012421 251012421,716-14L
-14L 110111618 0024248897 A fitting having three connections with the branch connection fixed at 90 degrees
Spark Plug 2920002488815 002488815,WS506,16L Every Day 16L RQST NE Updated Every Day 14L RQST https
Spark Plug 2920002488815 002488815,WS506,16L Plug Managed by United States NSN Created on 1 Jan
to View Vendor Details... 50922 SPARK PLUG 6 EA WS506 SPARK PLUG 27 EA NS Request Quotation Updated
Restrictions 2920-00-248-8815
2920-00-248-8815 is a Spark Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2920-00-248-8815
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-00-248-8815
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 2920-00-248-8815
- Part Number
- Manufacturer
- Status
- WS506
- Manufacturer
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- 50922
- 64104 - Dresser, Llc (Active)
- Secondary Buy
- Secondary Buy
- 50331E
- 64104 - Dresser, Llc (Active)
- Secondary Buy
- Secondary Buy
- DL8
- 0AFL4 - Champion Aerospace Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 14L
- 70040 - General Motors Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 16L
- 70040 - General Motors Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- DL8C
- 86850 - Champion Aviation Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- DL8C
- 0AFL4 - Champion Aerospace Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- DL8
- 86850 - Champion Aviation Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 16L
- 7X677 - General Motors Llc (Active)
- Advisory Reference
- Advisory Reference
- 14L
- 7X677 - General Motors Llc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 2920-00-248-8815
- Characteristic
- Specifications
- FIIG
- Specifications
- A10400

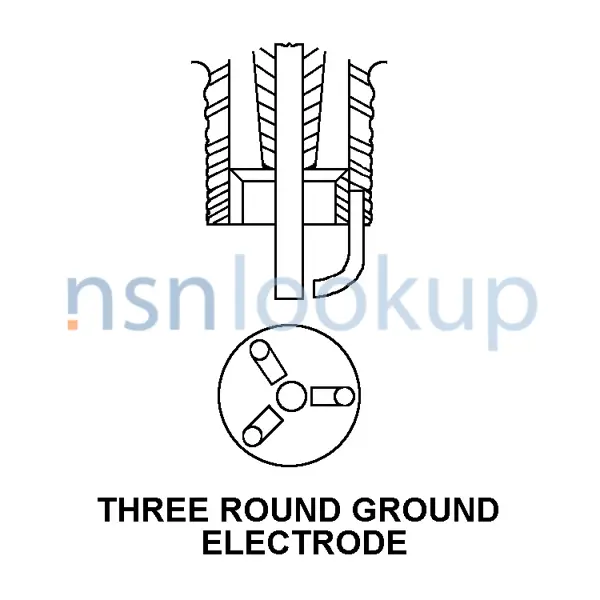

- Electrode Style [AYGA]
- Three Round Ground Electrode
- Body Style [AAQL]
- Unshielded, Threaded Post, Gasket Seat
- Height Above Mounting Surface [AYGJ]
- 2.320 Inches Nominal
- Mean Effective Pressure Rating [AYGF]
- 95.0 Pounds Per Square Inch Nominal
- Nondefinitive Spec/Std Data [ZZZT]
- 3 Type And B Class
- Reach Length [AHPM]
- 0.625 Inches Nominal
- Seat Major Diameter [AYGH]
- 1.000 Inches Maximum
- Special Features [FEAT]
- Industrial-Commercial Series
- Usage Design [ALBY]
- Engine Other Than Aircraft
- Width Across Flats [ASDB]
- 1.000 Inches Nominal
- Test Data Document [TEST]
- 81348-Ws506 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Size And Series/Type Designator And Location [AYGB]
- 18-1.5Mm Base
Similar Supply Items to 2920-00-248-8815
Freight Information 2920-00-248-8815
2920-00-248-8815 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 177080. A Sub NMFC of Z. It has a NMFC Description of SPARK PLUGS NOI IN BXS. 2920-00-248-8815 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2920-00-248-8815 is rated as class 100 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 87080 which rates the freight between FCL and LCL. 2920-00-248-8815 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 583 for ocean manifesting and military sealift. 2920-00-248-8815 is not classified as a special type of cargo when transported by water. 2920-00-248-8815 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
