2920-00-226-6545
Electrical Engine Starter
2920002266545 002266545 10911018-1 113904B
An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL. View more Electrical Engine Starter
September 2023
29
Product Information 2920-00-226-6545
Starter Motor for M35 1-1/2 Ton Truck
Marketplace 2920-00-226-6545
Request a Quotation from participating marketplace vendors
Related Documents 2920-00-226-6545 5+ Documents (More...)

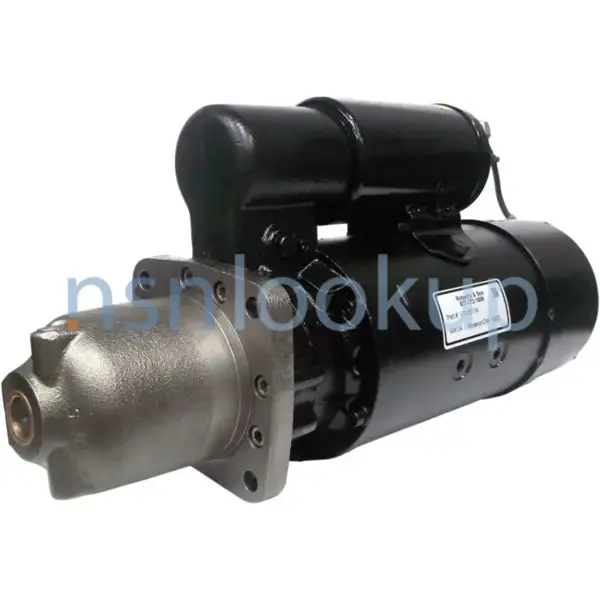

Photo 1/3 NSN 2920-00-226-6545 (Identification) 2/3 NSN 2920-00-226-6545 (Identification) 3/3 -
/fsg-29/fsc-2920/us 2920-00-226-6545 Electrical Engine Starter 2920002266545 10911018-1113904B An item
Electrical Engine Starter 2920002266545 Identification) 3/3 - - - United States (US) 4. 2920-00
-226-6545 Marketplace Restrictions Day 5995-99-226-6545 3 NSN 2920-00-226-6545 (Identification) 2/3 NSN
Electrical Engine Starter 2920002266545 day Upgrade your Account Upgrade 2920-00-226-6545Electrical
Engine Starter2920002266545 002266545 10911018 Vendor Details... 113904B STARTER 1 EA AR Request Quotation
Day 5995-99-226-6545 RQST NE Related Documents https//www.nsnlookup.com /fsg-29/fsc-2920/us 2920-00-226-6545
Electrical Engine Starter 2920002266545 Photo 1/3 NSN 2920-00-226-6545 (Identification) 2/3 NSN
Restrictions 2920-00-226-6545
IUID Required
2920-00-226-6545 is a Electrical Engine Starter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2920-00-226-6545
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2920-00-226-6545
- US Army (A203)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- BD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2920-00-226-6545
- Part Number
- Manufacturer
- Status
- 113904B
- Manufacturer
- 1LW55 - Borgwarner Pds (Anderson), L.L.C. (Active)
- Primary Buy
- Primary Buy
- 10911018-1
- 19207 - U S Army Tank Automotive Command (Active)
- Secondary Buy
- Secondary Buy
- 113904B
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 113904B
- 16764 - General Motors Corp Delco Remy Div (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2920-00-226-6545
- Characteristic
- Specifications
- FIIG
- Specifications
- A23400
- Armature Actuation Device Type [AKCW]
- Relay-Solenoid
- Engaging Mechanism Opening Angular Deviation In Deg [AKCQ]
- 127.5
- Engaging Mechanism To Armature Positional Relationship [AKCX]
- Straight
- Mounting Flange Angular Deviation In Deg [AKDB]
- 52.0
- Mounting Flange Shape Style [ADMD]
- Triangular
- Mounting Hole Circle Radius [ABUH]
- 1.875 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.654 Inches Minimum And 0.664 Inches Maximum
- Engaging Mechanism Style [AKCP]
- Peripheral Outboard Gear Drive W/Worm Shaft, Shaft, Shift Lever, Collar And Over-Running Clutch W/Drive Housing
- Lever Actuation Method [AKCR]
- Solenoid
- Shaft Rotation Direction [AKCT]
- Clockwise
- Voltage In Volts [ELEC]
- 24.0
- Terminal Type And Quantity [TTQY]
- 2 Threaded Stud
Management Data 2920-00-226-6545
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- R
- Refer To Net Price 373.00
- NET PRICE 373.00
- R
- Department of the Navy (DN)
- N
- V
- Discontinued Without Replacement
- V
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- NT
- Tactical Vehicles
M939 Family of Vehicles (Includes M939A1 and M939A2)
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9A
Similar Supply Items to 2920-00-226-6545
Freight Information 2920-00-226-6545
2920-00-226-6545 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of Z. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI. 2920-00-226-6545 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2920-00-226-6545 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2920-00-226-6545 is not classified as a special type of cargo when transported by water. 2920-00-226-6545 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2920-00-226-6545
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 25.8" H x 13.5" W x 10.5" L
- --
- --
- --
- Special Requirements
- 25.8" H x 13.5" W x 10.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Special requirement – See specific instructions or drawings provided
