2915-00-571-0519

Aircraft Submerged Pump

2915005710519 005710519 65-1010-6

A completely inclosed machine consisting of a positive or nonpositive displacement pump with a driving motor used to transmit or transfer fluid from an aircraft tank to an engine driven pump or to another tank. It is designed to be partially or completely submerged in the fluid it is intended to pump. View more Aircraft Submerged Pump

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
15

NATO Data Quality

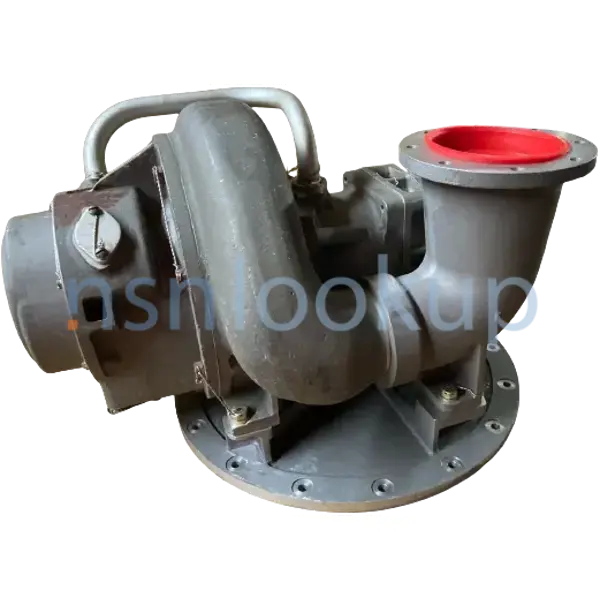

2915-00-571-0519 PUMP,SUBMERGED,AIRCRAFT 2915005710519 005710519 1/1 — 2915-00-571-0519 Photo 1/1

Product Information 2915-00-571-0519

KC-135 NO.3 CELL BODY FUEL TANK AIR REFUELING SUBMERSIBLE PUMP

Marketplace 2915-00-571-0519

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

65-1010-6 PUMP,SUBMERGED,AIRCRAFT 103 EA NS

Subscribe to View Vendor Details...

2915-00-571-0519 PUMP,SUBMERGED,AIRCRAFT RQST NS

Updated Every Day

2915-00-571-0519 RQST NE

Restrictions 2915-00-571-0519

IUID Required

2915-00-571-0519 is a Aircraft Submerged Pump that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 2915-00-571-0519

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 2915-00-571-0519

US Air Force (FXX4)
Effective Date:: 1 Apr 2000
Former MOE Rule:: FEE4; AMC 0 AMSC 0 AMSC F IMC E DSOR FT

US Navy (NAXP)
Effective Date:: 1 Apr 2000
Supplementary Receivers:: GG; AMC 0 AMSC 0 AMSC 5 IMC E DSOR FT

Approved Sources 2915-00-571-0519

Part Number
Manufacturer
Status
65-1010-6: 42280 - Gardner Denver Nash Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC X

Datasheet 2915-00-571-0519

Characteristic
Specifications
FIIG: A23900
End Item Identification [AGAV]: Kc-135 Aircraft, No.3 Cell Body Fuel Tank Air Refueling Installation
Reference Data And Literature [RDAL]: T.O.1C-135Wb-4,Figure 62
Part Name Assigned By Controlling Agency [CXCY]: Pump,Fuel Transfer

Management Data 2915-00-571-0519

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: Department of the Navy (DN); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Air Force (DF): L; F; When Exhausted Use 2915-00-758-8152
Department of the Air Force (DF): L; R; Refer To Net Price 4997.83; NET PRICE 4997.83
Department of the Navy (DN): N; F; When Exhausted Use 2915-00-758-8152
Department of the Navy (DN): N; R; Refer To Net Price 3963.00; NET PRICE 3963.00
Department of the Navy (DN): N; R; Refer To Net Price 4101.00; NET PRICE 4101.00

Navy

Cognizance:

7R: Bypass

Issue, Repair, Requisition Restriction Code:

AR: Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved

Similar Supply Items to 2915-00-571-0519

Freight Information 2915-00-571-0519

2915-00-571-0519 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114215. A Sub NMFC of Z. It has a NMFC Description of ASSEMBLIES JET AIRCRAFT ENGINE. 2915-00-571-0519 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2915-00-571-0519 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 2915-00-571-0519 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 2915-00-571-0519 is classified as Aircraft Engine, Internal Combustion Engine or Fuel Control Device when transported by water. 2915-00-571-0519 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 2915-00-571-0519

Responsible Activity
Packaging Data Source: Secondary Inventory Control Activity (SICA); Packaging Data does not meet current MIL-STD-2073-1E

Storage Environment: Heated General Purpose – Heated 40 F and above

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 36.5" H x 26.5" W x 19.0" L; --; --; Preservative Coating Only; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: Vendor's Protective Grease or Oil Coating; MIL-P-130, Laminated and Creped Wrapping Paper; Wood Blocking and Bracing, Fasteners, or Steel Strapping, for Tie-down purposes. Rubber tired wheels shall be blocked clear of the floor of the crate or skid and shall not be load bearing; Not Applicable; PPP-B-1672, Type III, Telescoping Encapsulated Cushioning in Reusable Box; --

Intermediate Pack Level

Quantity of Unit Packs
Container: --; No Requirement
