2910-01-079-3494
Fluid Filter Head
2910010793494 010793494 23539159 1DD151 10663160-001 23533674 5148171
A component of a fluid filter designed to contain the inlet and/or outlet ports of the filter. It acts as a cover and attaches to the fluid filter body or mounts directly to an integral cavity in an engine, manifold, casing, or the like. The item may include relief, check, by-pass valves, and/or fluid filter element(s). It may have means for supporting the filter element(s), and means for mounting the filter. Excludes HEAD, SEDIMENT STRAINER and COVER, FLUID FILTER. View more Fluid Filter Head
Managed by United States
NSN Created on 1 Jul 1979
Data Last Changed
August 2025
August 2025
NATO Update Count
37
37
NATO Data Quality
Marketplace 2910-01-079-3494
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 2910-01-079-3494 3+ Documents (More...)
23539159 1DD151 10663160-001 23533674 5148171 A component of a fluid filter designed to contain the

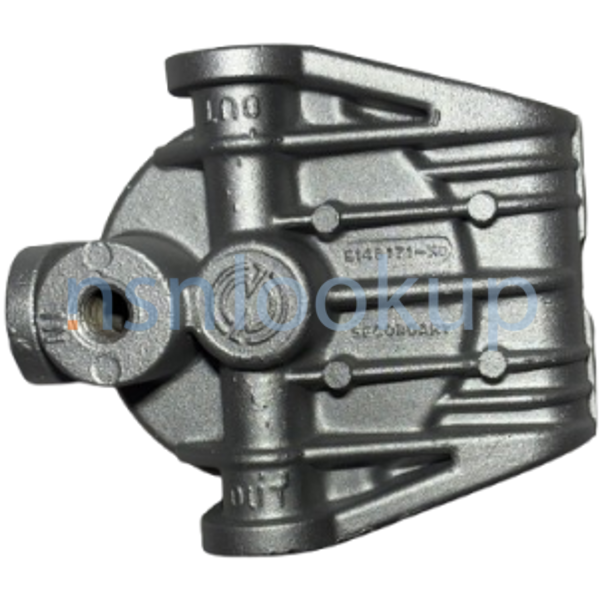

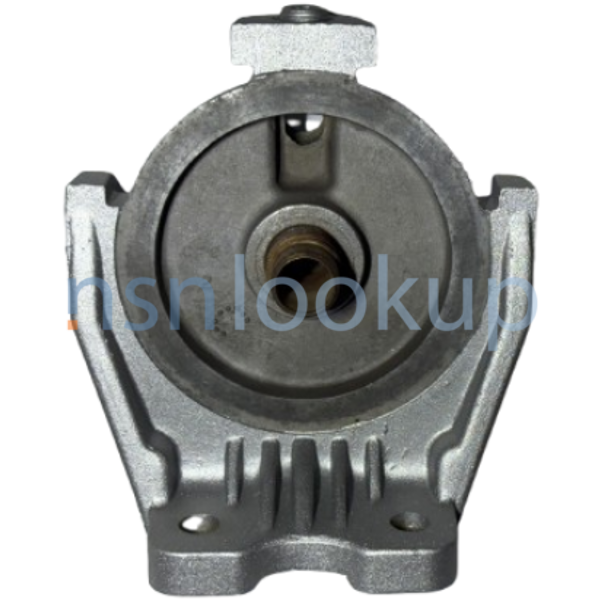

Photo 1/2 2910-01-079-3494 Photo 2/2 - - 1.
HEAD,FLUID FILTER 1 EA NS Request Quotation Subscribe to View Vendor Details... 2910-01-079-3494
Photo 1/2 2910-01-079-3494 Photo 2/2 - - 1.
HEAD,FLUID FILTER 1 EA NS Request Quotation Subscribe to View Vendor Details... 2910-01-079-3494
to enable JavaScript in your web browser . 2910-99-255-8161Fuel Filter Head2910992558161 992558161 5148171
$1 a day Upgrade your Account Upgrade 2910-01-366-0746Fluid Filter Element2910013660746 013660746 5148171
Fluid Filter Head 2910010793494 010793494 Account Upgrade 2910-01-079-3494Fluid Filter Head2910010793494
$1 a day Upgrade your Account Upgrade 2910-01-366-0746Fluid Filter Element2910013660746 013660746 5148171
Fluid Filter Head 2910010793494 010793494 Account Upgrade 2910-01-079-3494Fluid Filter Head2910010793494
$1 a day Upgrade your Account Upgrade 2910-01-366-0746Fluid Filter Element2910013660746 013660746 5148171
www.nsnlookup.com /fsg-29/fsc-2910/us 2910-01-366-0746 Fluid Filter Element 2910013660746013660746 5148171
$1 a day Upgrade your Account Upgrade 2910-01-366- 0746Fluid Filter Element2910013660746 013660746 5148171
www.nsnlookup.com /fsg-29/fsc-2910/us 2910-01-366-0746 Fluid Filter Element 2910013660746013660746 5148171
$1 a day Upgrade your Account Upgrade 2910-01-366- 0746Fluid Filter Element2910013660746 013660746 5148171
Restrictions 2910-01-079-3494
2910-01-079-3494 is a Fluid Filter Head that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2910-01-079-3494
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2910-01-079-3494
- US Army (A920)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Coast Guard (C911)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- C001
- US Air Force (FUGC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FUAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEJBHXHD
- Brazil (YA01)
- Effective Date:
- 1 Nov 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2004
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 2910-01-079-3494
- Part Number
- Manufacturer
- Status
- 23539159
- Manufacturer
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Primary Buy
- Primary Buy
- 1DD151
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 10663160-001
- 56161 - General Dynamics Land Systems (Active)
- Secondary Buy
- Secondary Buy
- 23533674
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1DD151
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5148171
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2910010793494
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2910-01-079-3494
- Characteristic
- Specifications
- FIIG
- Specifications
- T384-E
- Bolt Circle Diameter [ABKG]
- 2.188 Inches Nominal
- Filter Element [CDYD]
- Not Included
- Hole Diameter [AAUB]
- 0.425 Inches Nominal
- End Item Identification [AGAV]
- 2320-01-304-2277 And 2320-01-304-2278 Pls
- Material [MATT]
- Aluminum Alloy
- Mounting Bolt Hole [CDYC]
- Provided
- Outlet Nominal Thread Size [CSJD]
- 0.250 Inches
- Outlet Port Type [CDXQ]
- Threaded Female, Plain
- Outlet Thread Direction [ARTY]
- Right-Hand
- Outlet Thread Series Designator [ARTX]
- Npt
- Inlet Nominal Thread Size [CRHS]
- 0.250 Inches
- Inlet Port Type [CDXM]
- Threaded Female, Plain
- Inlet Thread Direction [ACRX]
- Right-Hand
- Inlet Thread Series Designator [ARNX]
- Npt
- Quantity [NMBR]
- 2
- Overall Height [ABKW]
- 3.000 Inches Nominal
- Overall Length [ABHP]
- 4.750 Inches Nominal
- Overall Width [ABMK]
- 5.438 Inches Nominal
- Special Features [FEAT]
- Used On Diesel Engine,Detroit Diesel,60 Series
- Valve [CDXY]
- Not Included
Weapon Systems (WSDC) 2910-01-079-3494
DLA Procurement Analysis 2910-01-079-3494
- Last Stock Position:
- 160 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2910-01-079-3494
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 2910-01-079-3494
Freight Information 2910-01-079-3494
2910-01-079-3494 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133320. A Sub NMFC of X. It has a NMFC Description of MACHINERY PARTS OIL/FUEL FILTER. 2910-01-079-3494 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64100 which rates the freight between FCL and LCL. 2910-01-079-3494 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2910-01-079-3494 is not classified as a special type of cargo when transported by water. 2910-01-079-3494 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2910-01-079-3494
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 2910-01-079-3494 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
