2910-01-037-4984

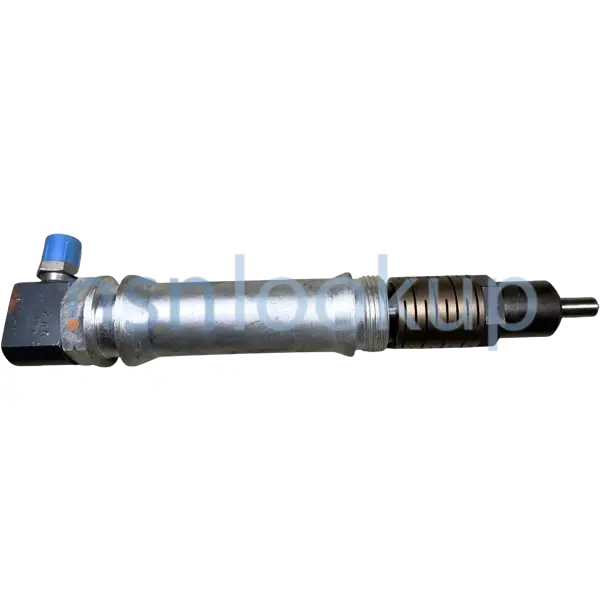

Fuel Injector Assembly
2910010374984 010374984 10912452 10912452-3 KT7854 KT-7854 2910000646269 10912452-2 KT7850
An item consisting of springs, o-rings, plungers and miscellaneous internal and external parts that provide atomized fuel at specific pressure(s) to engine combustion chambers. It may include NOZZLE, FUEL INJECTION. View more Fuel Injector Assembly
May 2025
33
Marketplace 2910-01-037-4984
Request a Quotation from participating marketplace vendors
Related Documents 2910-01-037-4984 3+ Documents (More...)
Quotation Subscribe to View Vendor Details... 10912452-2 INJECTOR ASSEMBLY,FUEL 21 EA NS Request Quotation
INJECTOR ASSEMBLY,FUEL 15 EA NS Request Quotation Subscribe to View Vendor Details... 10912452-2 INJECTOR
Fuel Injector Assembly 2910010374984, 2910-01-037-4984Fuel Injector Assembly2910010374984 010374984
10912452 10912452-3 KT7854 KT-7854 2910000646269 Fuel Injector Assembly 2910000646269 Request a Quotation
-4 10912452 An item consisting of springs, o-rings, plungers and miscellaneous internal and external
10912452-3 KT7854 KT-7854 2910000646269 Fuel Injector Assembly 2910000646269 Request a Quotation from
Restrictions 2910-01-037-4984
2910-01-037-4984 is a Fuel Injector Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2910-01-037-4984
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2910-01-037-4984
- US Army (A204)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A202
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 2910-01-037-4984
- Part Number
- Manufacturer
- Status
- 10912452
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 10912452-3
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- KT7854
- 84760 - Stanadyne Corporation (Active)
- Secondary Buy
- Secondary Buy
- KT-7854
- 01843 - Ambac International Corporation (Active)
- Secondary Buy
- Secondary Buy
- 2910000646269
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2910010374984
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 10912452-2
- 19207 - U S Army Tank Automotive Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- KT7850
- 01843 - Ambac International Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2910000646269
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 2910010374984
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2910-01-037-4984
- Characteristic
- Specifications
- FIIG
- Specifications
- A516Z0
- End Item Identification [AGAV]
- Nsn 2350-00-678-5773
- Special Features [FEAT]
- Consists Of: 1 Ea Nozzle, Cage 19207, P/N 10912481; 1 Ea Packing, P/N M83248/1-911; 1 Ea Packing, P/N M83248/1-126; 1 Ea Connector, Cage 01843; P/N Sd78117; As Required, Shim, Cage 01843, Part Numbers, Sr7828-1, Sr7828-2, Sr7828-3, Sr7828-4, Sr7828-5
Management Data 2910-01-037-4984
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- E
- Replaced By 2910-01-509-7176
- E
- Department of the Army (DA)
- A
- R
- Refer To Net Price 207.00
- NET PRICE 207.00
- R
- Department of the Army (DA)
- I
- E
- Replaced By 2910-01-509-7176
- E
- US Marine Corps (DM)
- M
- F
- When Exhausted Use 2910-01-509-7176
- F
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- JT
- Tanks
Recovery Vehicle, M51/M74/M88
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 26
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 2910-01-037-4984
Freight Information 2910-01-037-4984
2910-01-037-4984 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 2910-01-037-4984 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2910-01-037-4984 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 2910-01-037-4984 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2910-01-037-4984 is not classified as a special type of cargo when transported by water. 2910-01-037-4984 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2910-01-037-4984
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 10.1" H x 2.3" W x 1.6" L
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 11.1" H x 2.7" W x 2.1" L
- --
- --
- --
- Special Requirements
- 11.1" H x 2.7" W x 2.1" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-21260, Preservative and Break-in Lubricating Oil, Internal Combustion Engine, Grade 10, 30 or 50
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- 1/4 inch thick
- --
- No special marking
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
