2835-01-459-6815

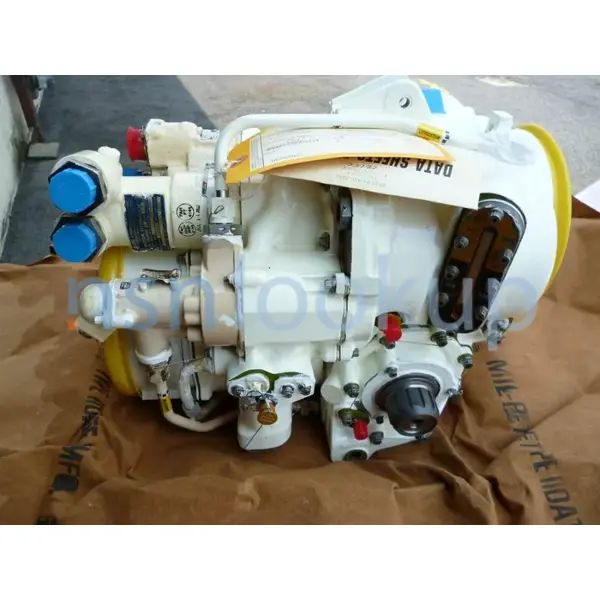

Turbine Engine Accessory Drive Gearbox
2835014596815 014596815 386720-6-1 68-520059-219
A complete assembly of gears, bearings, shafts, seals, and necessary miscellaneous parts, encased in a housing, designed for driving and/or attaching various aircraft or engine accessories and components. View more Turbine Engine Accessory Drive Gearbox
May 2023
9
Marketplace 2835-01-459-6815
Request a Quotation from participating marketplace vendors
Related Documents 2835-01-459-6815 1+ Documents (More...)
/fsg-28/fsc-2835/us
United States (US) 4. 2835-01-459-6815 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 2835-01-459-6815 RQST Updated Every Day 2835-01-459-6815 RQST NE Related Documents
Restrictions 2835-01-459-6815
IUID Required
2835-01-459-6815 is a Turbine Engine Accessory Drive Gearbox that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2835-01-459-6815
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2835-01-459-6815
- US Air Force (FUU4)
- Effective Date:
- 1 Sep 2000
- Former MOE Rule:
- FEE4
- Singapore (YJ01)
- Effective Date:
- 1 Oct 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2008
Approved Sources 2835-01-459-6815
- Part Number
- Manufacturer
- Status
- 386720-6-1
- Manufacturer
- 99193 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- 68-520059-219
- 76301 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 2835-01-459-6815
- Characteristic
- Specifications
- FIIG
- Specifications
- A530F0
- End Item Identification [AGAV]
- F-15
- Reference Data And Literature [RDAL]
- Allied Signal B-4 Cgb
- Overall Length [ABHP]
- 12.000 Inches Minimum And 14.000 Inches Maximum
- Part Name Assigned By Controlling Agency [CXCY]
- Ggearbox O/L,Central
Management Data 2835-01-459-6815
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- L
- G
- Replaces 2835-01-046-1679
- AAA
- G
- Department of the Air Force (DF)
- L
- G
- Replaces 2835-01-034-6948
- AAB
- G
- Department of the Air Force (DF)
- L
- R
- Refer To Net Price 125292.17
- NET PRICE 125292.17
- R
- Department of the Air Force (DF)
- L
- Dod I&S Family Master Nsn - - -
- AAC
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 8
- 97X4830.FCL4 - Materiel Support DIV (MSD) - Materiel Support Division (MSD), which includes those Air Force Centrally Managed Investment Items (ERRC XD1=C and XD2=T) except for those still managed in budget programs (BP) 15, 25, 82, 83, and 84 as stock fund exempt. MSD also includes items centrally procured and managed as Expense Items (ERRC XB3=N and XF3=P). Reference AFMAN 23–110, Volume 1, Part 3, Chapter 7, Paragraph 7.3.1
- Aggregation Code:
- RP
- GAS TURBINE ENGINES (FSC RESIDUAL MMAC)
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - T
- Expendable. Reparable. Condemn at Depot. AF Recoverable Assembly Management System (AFRAMS).
NATO Stock Numbers Related to 2835-01-459-6815
Freight Information 2835-01-459-6815
2835-01-459-6815 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 121870. A Sub NMFC of X. It has a NMFC Description of GEAR/SPEED INCREASING/REDUCING MACH. 2835-01-459-6815 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64910 which rates the freight between FCL and LCL. 2835-01-459-6815 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 2835-01-459-6815 is not classified as a special type of cargo when transported by water. 2835-01-459-6815 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2835-01-459-6815
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 10.7" H x 10.2" W x 12.0" L
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 25.0" H x 19.0" W x 17.0" L
- --
- --
- --
- Any Suitable Process
- 25.0" H x 19.0" W x 17.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-1672, Type III, Telescoping Encapsulated Cushioning in Reusable Box
- Method 50
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
