2815-01-335-4579

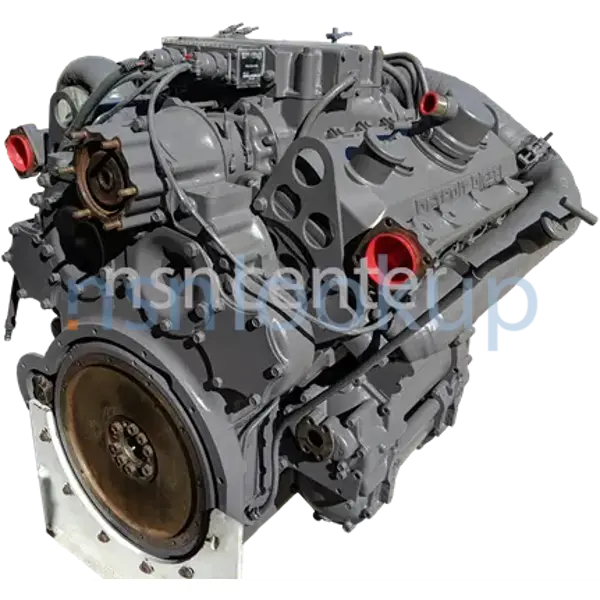

Diesel M109a5 8V71t Lhr 440Hp Engine
2815013354579 013354579 57K1003
A reciprocating internal combustion engine in which the power necessary to produce motion of the mechanism is obtained by igniting a compressed fuel and air mixture within the cylinder or cylinders by extreme heat resulting from compression. The engine consists of a cylinder block assembly complete with cylinder head(s) and oil pan(s). It may include attachments or accessories, such as starter motor, transmission for auxiliary equipment, clutch, oil filter, flywheel, flywheel housing or battery charging generator. A fuel tank is not included. For a complete operating power unit mounted on a base, see POWER UNIT (1), DIESEL. View more Diesel Engine
February 2025
10
Product Information 2815-01-335-4579
LHR Engine Model 7083-7391
A liquid-cooled, two-stroke cycle, low heat rejection, diesel, model 8V71T equipped with an exhaust-driven turbocharger.
Buy 2815-01-335-4579 7083-7391 M109A5 Engine
The engine develops 440 horsepower at 2300 rpm.
Model: Detroit Diesel 7083-7391
Used on:
- M109A5 Self-Propelled Howitzer (SPH)
- M109A6 Self-Propelled Howitzer (SPH)
- M992A1 FAASV (CAT) Armored Ammunition Supply Vehicle
- M992A2 FAASV (CAT) Armored Ammunition Supply Vehicle
- M1050
Marketplace 2815-01-335-4579
Request a Quotation from participating marketplace vendors
Related Documents 2815-01-335-4579 5+ Documents (More...)
Day 2815-01-335-4579 RQST Updated Every Day 2815-01-335-4579 RQST NE Related Documents 2815-01-335-4579
2815013354579 013354579,57K1003 57K1003 A reciprocating internal combustion engine in which the power
Engine 2815013354579 013354579,57K1003 Marketplace 2815-01-335-4579 Need Help?
Engine 2815013354579 013354579,57K1003 Marketplace 2815-01-335-4579 Need Help?
Diesel Engine 2815013354579 013354579,57K1003 PrebentEnd Item Identification [AGAV] 2815-01-335
Quotation Subscribe to View Vendor Details... 12268389 https//www.nsnlookup.com /fsg-28/fsc-2815/us 2815-01-335-4579
Diesel Engine 2815013354579 013354579,57K1003 PrebentEnd Item Identification [AGAV] 2815-01-335
vendors Request Updated Every Day 4710-01-351-8369 https//www.nsnlookup.com /fsg-28/fsc-2815/us 2815-01-335-4579
Diesel Engine 2815013354579 013354579,57K1003 Every Day 2815-01-335-4579 RQST NE Updated Every
Swivel Nut, Inverted Flare Single EndDesign Form [ARJD]PrebentEnd Item Identification [AGAV] 2815-01-335-4579
Restrictions 2815-01-335-4579
IUID Required
2815-01-335-4579 is a Diesel M109a5 8V71t Lhr 440Hp Engine The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2815-01-335-4579
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2815-01-335-4579
- US Army (A202)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- BDBF
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Dec 1997
- Republic of Korea (ZH01)
- Effective Date:
- 1 Sep 2013
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Norway (ZT01)
- Effective Date:
- 1 Mar 2006
Approved Sources 2815-01-335-4579
- Part Number
- Manufacturer
- Status
- 57K1003
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 2815-01-335-4579
- Characteristic
- Specifications
- FIIG
- Specifications
- T197-A
- Cylinder Quantity [AAXZ]
- 8
- Accessory Components And Quantity [AKYD]
- Model 8V71t,7083-7391 Engine Is Depicted On Dwg 12268500
- Supplementary Features [SUPP]
- C/O,Container,Nsn 8145012812914; 1 Damper,Vibration,Nsn 2815003541418; 2 Element,Lub,Nsn 2940005806283;1 Ea,Element Filter,Nsn's 2910002871912 And 2940007457330;1 Gasket,Flywheel,Nsn 5330011678094;See Dwg 57K1003 For Misc Hdwe And Parts Del From This Assy; Engine Used On M992,M109a6,And M1050
Management Data 2815-01-335-4579
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Jun 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- L
- R
- Refer To Net Price 105619.00
- NET PRICE 105619.00
- R
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- KF
- Combat Vehicles
Howitzer, Full Tracked, Self- propelled 155mm M109
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 2815-01-335-4579
Freight Information 2815-01-335-4579
2815-01-335-4579 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 120800. A Sub NMFC of Z. It has a NMFC Description of ENGINES, INTERNAL COMBUSTION, NOI. 2815-01-335-4579 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2815-01-335-4579 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 61410 which rates the freight between FCL and LCL. 2815-01-335-4579 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2815-01-335-4579 is not classified as a special type of cargo when transported by water. 2815-01-335-4579 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2815-01-335-4579
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Freeze – Below 32 F (Below 0 C)
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 70.4" H x 57.6" W x 54.9" L
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 70.4" H x 57.6" W x 54.9" L
- --
- --
- --
- Special Requirements
- 70.4" H x 57.6" W x 54.9" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
