2815-00-586-4656
Engine Poppet Valve
2815005864656 005864656 1B132 1B1132
A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine. View more Engine Poppet Valve
May 2023
5
Marketplace 2815-00-586-4656
Request a Quotation from participating marketplace vendors
Related Documents 2815-00-586-4656 5+ Documents (More...)
(Identification) 1/2 NSN 2815-00-586-4656 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 2815-00-586-4656 RQST NE Updated Every Day 2815-00-586-4656 RQST
vendors Request Updated Every Day 2815-00-600-3249 https//www.nsnlookup.com /fsg-28/fsc-2815/us 2815-00-586-4656
Engine Poppet Valve 2815005864656 005864656 Restrictions Approved Sources Datasheet Management
https//www.nsnlookup.com /fsg-66/fsc-6605/us 6605-00-314-7315 Roller Arm 6605003147315 003147315,979-1B132
https//www.nsnlookup.com /fsg-66/fsc-6605/us 6605-00-314-7315 Roller Arm 6605003147315 003147315,979-1B132
Upgrade 6605-00-314-7315Roller Arm6605003147315 003147315 979-1B132 B206-148 8341-4 206-148 R10825 B21201
Restrictions 2815-00-586-4656
2815-00-586-4656 is a Engine Poppet Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2815-00-586-4656
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2815-00-586-4656
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 2815-00-586-4656
- Part Number
- Manufacturer
- Status
- 1B132
- Manufacturer
- 11976 - Chicago Pneumatic Tool Co (Obsolete)
- Original Design
- Original Design
- 1B1132
- 11976 - Chicago Pneumatic Tool Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2815-00-586-4656
- Characteristic
- Specifications
- FIIG
- Specifications
- A11200
- Material And Location [ANNQ]
- Steel Overall
- Head Style [AASK]
- Flat
- Head Height [AASU]
- 0.2500 Inches Nominal
- Outside Diameter [ABKV]
- 0.9690 Inches Nominal
- Neck Radius [ALZB]
- 0.1880 Inches Nominal
- Seat Angle In Deg [AJFY]
- 45.0

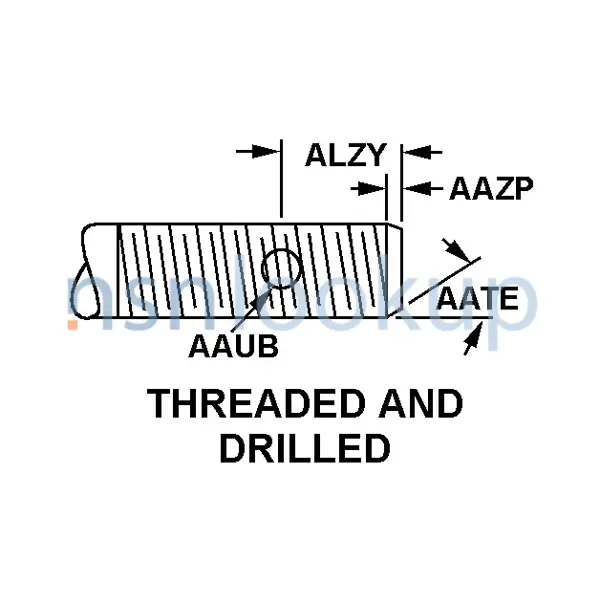

- Stem Style [ALYX]
- Threaded And Drilled
- Hole Diameter [AAUB]
- 0.0940 Inches Nominal
- Chamfer Length [AAZP]
- 0.0310 Inches Nominal
- Stem Length [ALZD]
- 7.8750 Inches Nominal
- Stem Diameter [ALZE]
- 0.3120 Inches Nominal
- Distance From Hole Center To Stem End [ALZY]
- 0.1880 Inches Nominal
- Chamfer Angle In Deg [AATE]
- 45.0
- Thread Size And Series/Type Designator [THDS]
- 0.312-18 Unc
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Screw Thread Length [AJYR]
- 0.9380 Inches Nominal
- Carbon Relief Groove [ALYZ]
- Not Included
DLA Procurement Analysis 2815-00-586-4656
Management Data 2815-00-586-4656
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 2815-00-586-4656
Freight Information 2815-00-586-4656
2815-00-586-4656 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 2815-00-586-4656 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 2815-00-586-4656 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2815-00-586-4656 is not classified as a special type of cargo when transported by water. 2815-00-586-4656 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 2815-00-586-4656 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
