2815-00-528-6073
Valve Spring Retainer Lock
2815005286073 005286073 8076
A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers. View more Valve Spring Retainer Lock
January 2023
7
Marketplace 2815-00-528-6073
Request a Quotation from participating marketplace vendors
Related Documents 2815-00-528-6073 1+ Documents (More...)
fsc-2815/us 2815-00-528-6073 Valve Spring Retainer Lock 2815005286073 8076 A metal item designed for
Marketplace Restrictions Approved Sources Datasheet Management 2815-00-528-6073 RQST NE Updated
Restrictions 2815-00-528-6073
2815-00-528-6073 is a Valve Spring Retainer Lock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 2815-00-528-6073
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2815-00-528-6073
- Part Number
- Manufacturer
- Status
- 8076
- Manufacturer
- 15434 - Cummins Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 2815-00-528-6073
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-H
- Distance From Bottom To First Groove Center [BRPY]
- 0.278 Inches Minimum And 0.279 Inches Maximum
- Distance From Bottom To First Ridge Center [BRPX]
- 0.092 Inches Nominal
- Casehardening Indicator [AASG]
- Not Casehardened
- Distance Between First And Second Ridge Centers [BRPR]
- 0.323 Inches Nominal
- First Groove Width [ALZQ]
- 0.190 Inches Minimum And 0.192 Inches Maximum
- First Ridge Radius [BRPN]
- 0.275 Inches Nominal
- First Ridge Width [BRPZ]
- 0.184 Inches Nominal
- Material [MATT]
- Steel,Sae 1020
- Metallic Hardness Rating [AETC]
- 77.0 Nominal Rockwell B
- Minimum Inside Diameter [BKKZ]
- 0.625 Inches
- Outside Included Angle In Deg [BRQJ]
- 11.0
- Largest Inside Diameter [AGRU]
- 0.750 Inches Minimum And 0.755 Inches Maximum
- Largest Outside Diameter [AGWM]
- 1.030 Inches Minimum And 1.032 Inches Maximum
- Largest Outside Width [BQTG]
- 0.200 Inches Nominal
- Second Ridge Width [BRQB]
- 0.184 Inches Nominal
- Second Ridge Radius [BRPP]
- 0.275 Inches Nominal
- Overall Height [ABKW]
- 0.558 Inches Minimum And 0.560 Inches Maximum

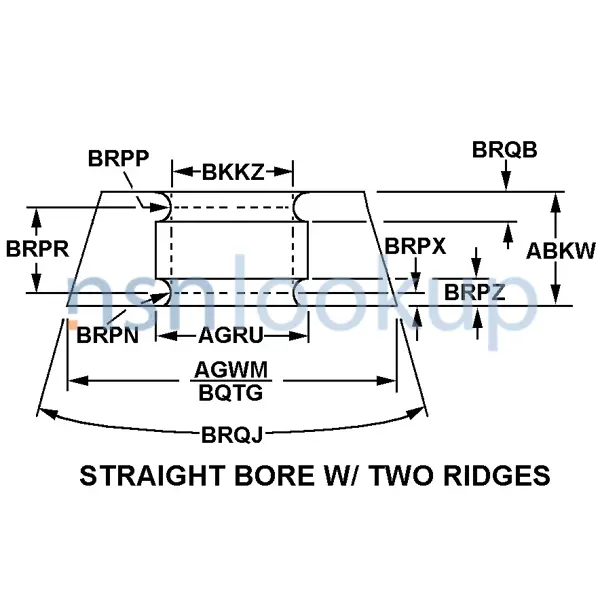

- Style Designator [STYL]
- Straight Bore W/Two Ridges
- Thread Provision [AFEW]
- Unthreaded
NATO Stock Numbers Related to 2815-00-528-6073
Freight Information 2815-00-528-6073
2815-00-528-6073 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 2815-00-528-6073 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 2815-00-528-6073 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2815-00-528-6073 is not classified as a special type of cargo when transported by water. 2815-00-528-6073 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2815-00-528-6073
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-21260, Preservative and Break-in Lubricating Oil, Internal Combustion Engine, Grade 10, 30 or 50
- --
- --
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
