2815-00-499-4233
Valve Tappet Adjusting Screw
2815004994233 004994233 P211882
An externally threaded screw-like device with a hexagon, square, slotted or any other type drive end. The other end may have a spherical ball, socket or other type of machined surface. It may have a concentric hole along the longitudinal centerline and a hole perpendicular to the axis joining the concentric hole for lubrication. It is specifically designed to be used as a means for adjusting engine poppet valve tappet clearances and may be furnished with a lock nut. View more Valve Tappet Adjusting Screw
May 2023
17
Marketplace 2815-00-499-4233
Request a Quotation from participating marketplace vendors
Related Documents 2815-00-499-4233 1+ Documents (More...)
RQST NE Updated Every Day 2815-00-499-4233 RQST Updated Every Day 2815-00-499-4233 RQST NE Related Documents
2815-00-499-4233 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-28/fsc-2815/us 2815-00-499-4233
Restrictions 2815-00-499-4233
2815-00-499-4233 is a Valve Tappet Adjusting Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2815-00-499-4233
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2815-00-499-4233
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- HD
- Argentina (YF01)
- Effective Date:
- 1 Feb 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 2815-00-499-4233
- Part Number
- Manufacturer
- Status
- P211882
- Manufacturer
- 17572 - Sterling Engine Co Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 2815-00-499-4233
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-M
- Casehardening Indicator [AASG]
- Casehardened
- End Largest Diameter [BNKG]
- 0.747 Inches Nominal
- End Length [AXMB]
- 0.625 Inches Nominal
- End Spherical Radius [BQTD]
- 0.375 Inches Nominal
- Material [MATT]
- Steel
- Slot Width [ABGC]
- 0.075 Inches Nominal
- Slot Depth [AAZT]
- 0.125 Inches Nominal
- Smallest Diameter [AYTY]
- 0.418 Inches Nominal
- Overall Length [ABHP]
- 1.875 Inches Nominal

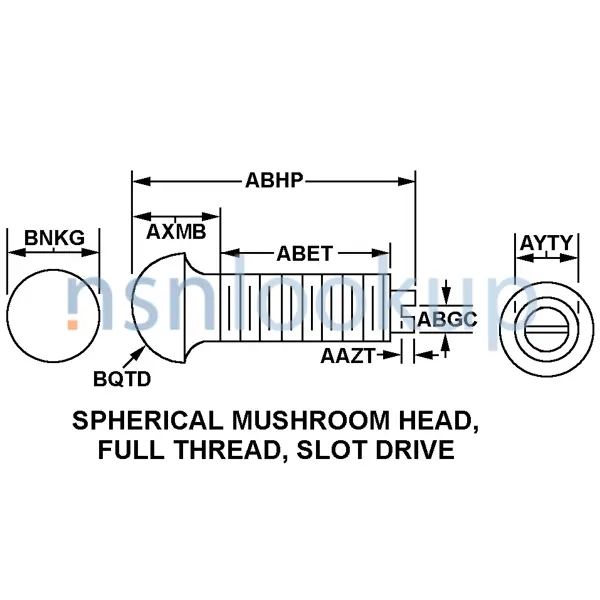

- Style Designator [STYL]
- Spherical Mushroom Head, Full Thread, Slot Drive
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [ABET]
- 1.065 Inches
- Thread Series [BZRR]
- Unf
- Thread Size [ABUJ]
- 1/2-20
DLA Procurement Analysis 2815-00-499-4233
Management Data 2815-00-499-4233
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 2815-00-499-4233
Freight Information 2815-00-499-4233
2815-00-499-4233 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 2815-00-499-4233 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 2815-00-499-4233 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2815-00-499-4233 is not classified as a special type of cargo when transported by water. 2815-00-499-4233 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2815-00-499-4233
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 5lb to 7.5lb, all dimensions less than 24"
- Above 110G
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 2815-00-499-4233 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
