2815-00-410-1956

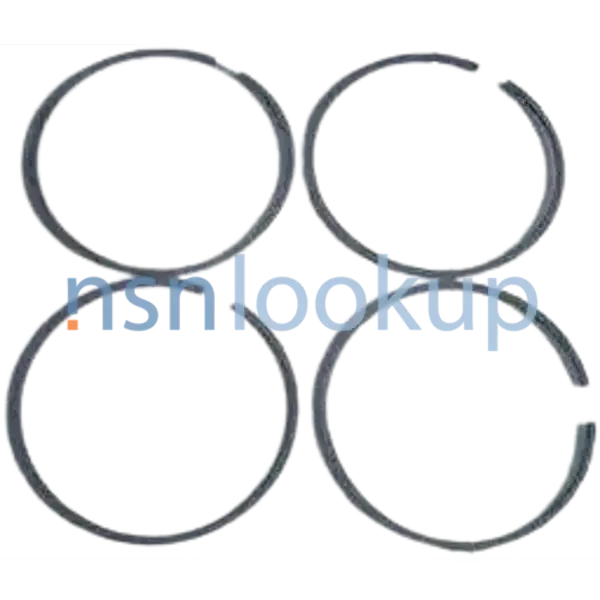

Piston Ring Set
2815004101956 004101956 5704478 C5795-83 360010103-3
Two or more complete RING, PISTON grouped for a single piston or for all pistons of an internal combustion engine, air compressor, or the like. View more Piston Ring Set
November 2023
22
Marketplace 2815-00-410-1956
Request a Quotation from participating marketplace vendors
Related Documents 2815-00-410-1956 5+ Documents (More...)
220-24p TM-9-2815-220-24P Parts Manual for AVDS-1790-2CA AVDS-1790-2DA and AVDS-1790-2DR Page 346 5704478
2815-00-410-1956 KITS 19207 57044792815-00-410 https//www.nsnlookup.com /equipment-intelligence/land
2815-00-410-1956 KITS 19207 5704479 2815-00-410-1957 KITS 19207 5704482 3120-01-018-0192 KITS 19207
19207 5704478 RING SET,PISTON V RING, PISTON (12) 8-11 RING,PISTON (12) 8-12 RING,PISTON (12) 8
-1790-2CA, AVDS-1790-2DA and AVDS-1790-2DR Page 347 ITEM 19207 57044772815-00-410-1248 KITS 19207 5704478
2815-00-410-1956 KITS 19207 5704479 2815-00-410 https//www.nsnlookup.com /equipment-intelligence/land
Restrictions 2815-00-410-1956
2815-00-410-1956 is a Piston Ring Set that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2815-00-410-1956
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2815-00-410-1956
- US Army (A920)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Marine Corps (MC40)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Mar 1999
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1999
Approved Sources 2815-00-410-1956
- Part Number
- Manufacturer
- Status
- 5704478
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- C5795-83
- 75370 - Kaydon Ring & Seal Inc (Active)
- Secondary Buy
- Secondary Buy
- 360010103-3
- 0L7R7 - Tecmotiv Usa, Inc (Active)
- Secondary Buy
- Secondary Buy
- 2815004101956
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2815004101956
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2815-00-410-1956
- Characteristic
- Specifications
- FIIG
- Specifications
- A08400
- Bore Diameter Oversize [ACYA]
- 0.030 Inches
- Standard Bore Diameter [ACXZ]
- 5.750 Inches
- Ring Set Component Parts [AETE]
- Compression Ring,11668316-3,19207,2;Oil Ring,11668317-3,19207,1; Scraper Ring,11668315-3,19207,1
- Piston Accommodation Quantity [AETD]
- 1
Weapon Systems (WSDC) 2815-00-410-1956
DLA Procurement Analysis 2815-00-410-1956
- Last Stock Position:
- 150 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2815-00-410-1956
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- JT
- Tanks
Recovery Vehicle, M51/M74/M88
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 0
- Non-combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 2815-00-410-1956
Freight Information 2815-00-410-1956
2815-00-410-1956 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126700. A Sub NMFC of X. It has a NMFC Description of PISTON RINGS,IRON. 2815-00-410-1956 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 2815-00-410-1956 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64230 which rates the freight between FCL and LCL. 2815-00-410-1956 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2815-00-410-1956 is not classified as a special type of cargo when transported by water. 2815-00-410-1956 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2815-00-410-1956
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 2815-00-410-1956 2 Records
Contracting Technical Data File (CTDF) 2815-00-410-1956 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- R
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
