2815-00-365-2275
Valve Spring Retainer Lock
2815003652275 003652275 3B1143 321143 LK131 IPD3B1143 J135 H224 R155 U135
A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers. View more Valve Spring Retainer Lock
Managed by United States
NSN Created on 1 Jan 1961
Data Last Changed
May 2023
May 2023
NATO Update Count
41
41
NATO Data Quality
Marketplace 2815-00-365-2275
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
U135 LOCK,VALVE SPRING RETAINER 1 EA NS
R155 LOCK,VALVE SPRING RETAINER 7 EA NS
R-155 LOCK,VALVE SPRING RETAINER 1 EA NS
Updated Every Day 2815-00-365-2275 RQST NE
Updated Every Day 2815-00-365-2275 RQST
Updated Every Day 2815-00-365-2275 RQST NE
Related Documents 2815-00-365-2275 5+ Documents (More...)
3B1143 321143 LK131 IPD3B1143 J135 H224 R155 U135 A metal item designed for the purpose of securing
U135 LOCK,VALVE SPRING RETAINER 1 EA NS Request Quotation R155 LOCK,VALVE SPRING RETAINER 7 EA NS Request
2815-00-365-2275 Valve Spring Retainer Lock 2815003652275 Reference RNCC 3 RNVC 1 DAC G 4820-LL-N01-
U135 LOCK,VALVE SPRING RETAINER 1 EA NS Request Quotation R155 LOCK,VALVE SPRING RETAINER 7 EA NS Request
2815-00-365-2275 Valve Spring Retainer Lock 2815003652275 Reference RNCC 3 RNVC 1 DAC G 4820-LL-N01-
$1 a day Upgrade your Account Upgrade 2840-00-601-6538Guide Afterburner N2840006016538 006016538 321143
LINK ASSEMBLY 1 EA NS Request Quotation 321143 CONNECTING LINK, RIGID 1 EA NS Request Quotation 321143
LINK ASSEMBLY 1 EA NS Request Quotation 321143 CONNECTING Guide Afterburner N 2840006016538006016538
LINK ASSEMBLY 1 EA NS Request Quotation 321143 CONNECTING LINK, RIGID 1 EA NS Request Quotation 321143
LINK ASSEMBLY 1 EA NS Request Quotation 321143 CONNECTING Guide Afterburner N 2840006016538006016538
web browser . 3040-01-475-0311Aors Adptr Piston3040014750311 014750311 820-6896279PC2 4820-LL-N01-J135
30/fsc-3040/us 3040-01-475-0311 Aors Adptr Piston 3040014750311014750311 820-6896279PC24820-LL-N01-J135
https//www.nsnlookup.com /fsg-53/fsc-5325/de 5325-12-126-5156 Retaining Ring 5325121265156 121265156,J135
30/fsc-3040/us 3040-01-475-0311 Aors Adptr Piston 3040014750311014750311 820-6896279PC24820-LL-N01-J135
https//www.nsnlookup.com /fsg-53/fsc-5325/de 5325-12-126-5156 Retaining Ring 5325121265156 121265156,J135
$1 a day Upgrade your Account Upgrade 3040-00-104-0352Rigid Connecting Link3040001040352 001040352 321143
LINK, RIGID 1 EA NS Request Quotation 321143 LINK ASSEMBLY 1 EA NS Request Quotation 321143 CONNECTING
LINK, RIGID 1 EA NS Request Quotation 321143 LINK ASSEMBLY 1 EA NS Request Quotation 321143 CONNECTING
LINK, RIGID 1 EA NS Request Quotation 321143 LINK ASSEMBLY 1 EA NS Request Quotation 321143 CONNECTING
LINK, RIGID 1 EA NS Request Quotation 321143 LINK ASSEMBLY 1 EA NS Request Quotation 321143 CONNECTING
how to enable JavaScript in your web browser . 5325-12-126-5156Retaining Ring5325121265156 121265156 J135
Retaining Ring 5325121265156121265156,J135 Aors Adptr Piston 3040014750311014750311 web browser https
Valve Spring Retainer Lock 2815003652275 J135 LOCK,VALVE SPRING RETAINER 1 EA NS Request Quotation
Retaining Ring 5325121265156121265156,J135 Aors Adptr Piston 3040014750311014750311 web browser https
Valve Spring Retainer Lock 2815003652275 J135 LOCK,VALVE SPRING RETAINER 1 EA NS Request Quotation
Restrictions 2815-00-365-2275
2815-00-365-2275 is a Valve Spring Retainer Lock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2815-00-365-2275
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2815-00-365-2275
- US Army (A920)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZCL
- US Coast Guard (C911)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- C001
- US Air Force (FGGC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FGAX
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTHD
- Hungary (WH01)
- Effective Date:
- 1 Jul 2013
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Mar 1997
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Jan 2000
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 2815-00-365-2275
- Part Number
- Manufacturer
- Status
- 3B1143
- Manufacturer
- 11083 - Caterpillar Inc (Active)
- Primary Buy
- Primary Buy
- 321143
- 57217 - Striegel Supply, Inc. (Active)
- Secondary Buy
- Secondary Buy
- LK131
- 78557 - Toledo Pickling & Steel Sales (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- IPD3B1143
- 55883 - Industrial Parts Depot, Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- J135
- 80825 - Allied Motor Parts Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- H224
- 91465 - Aluminum Industries Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- R155
- 59875 - Eaton Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- U135
- 77535 - Associated Spring Us, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2815-00-365-2275
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-H
- Casehardening Indicator [AASG]
- Casehardened
- Material [MATT]
- Steel
- Minimum Inside Diameter [BKKZ]
- 0.493 Inches
- Inside Included Angle In Deg [BRQH]
- 105.0
- Largest Top Countersink Diameter [BQTH]
- 0.469 Inches Nominal
- Largest Inside Diameter [AGRU]
- 0.375 Inches Nominal
- Largest Outside Diameter [AGWM]
- 0.654 Inches Minimum And 0.656 Inches Maximum
- Overall Height [ABKW]
- 0.545 Inches Minimum And 0.547 Inches Maximum
- Special Features [FEAT]
- Simula To Style 25 Except Tapered Bore 2.500 Per Ft To Countersink; Splint In Three Sections 120 Deg

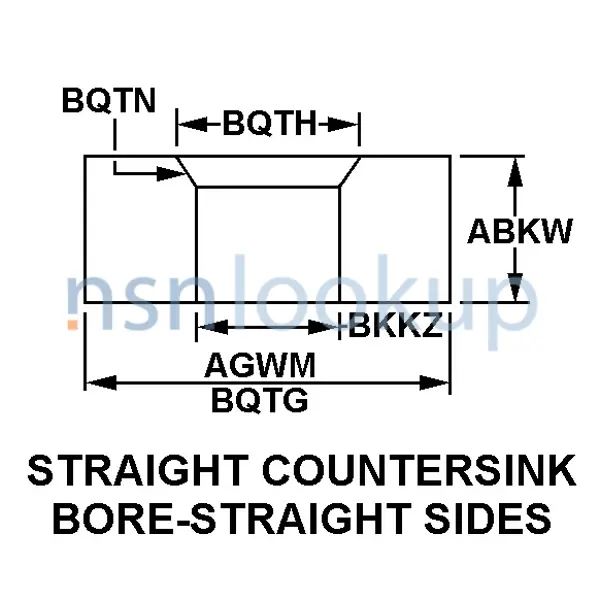

- Style Designator [STYL]
- Straight Countersink Bore-Straight Sides
- Thread Provision [AFEW]
- Unthreaded
- Top Countersink Included Angle In Deg [BQTN]
- 30.0
Weapon Systems (WSDC) 2815-00-365-2275
DLA Procurement Analysis 2815-00-365-2275
Management Data 2815-00-365-2275
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- TG
- AF SICA RESIDUAL MMAC-WR-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
