2815-00-277-2919
Piston Ring
2815002772919 002772919 CADH8A 32730 MADG5BPC18-19 10ADE5APC18-19 13ADD5APC18-19 15ADD5APC18-19 7ADD5APC18-19 ADE8A MADG5APC18-19 ADH8A MADH8A
A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL. View more Piston Ring
November 2023
22
Marketplace 2815-00-277-2919
Request a Quotation from participating marketplace vendors
Related Documents 2815-00-277-2919 5+ Documents (More...)
-19 ADH8A MADH8A A circular, single or multipiece item, metallic or nonmetallic in composition, designed
(Identification) 1/3 NSN 2815-00-277-2919 (Identification) 2/3 NSN 2815-00-277-2919 (Identification
-14-416-6459 Brin D'antenne 1355144166459 144166459 Part NumberManufacturerStatusAM13JFL9A2-2-32730
enable JavaScript in your web browser . 3040-12-198- 2540Fluessigkeits Kopf3040121982540 121982540 2-32730
Created on 10 Jun End Cap 5825993010257 993010257,32730 12-198-2539 Part NumberManufacturerStatus2-32730
day Upgrade your Account Upgrade 5996-00-802-6086Audio Frequency Amplifier5996008026086 008026086 32730
enable JavaScript in your web browser . 3040-12-198-2539Fluessigkeits Kopf3040121982539 121982539 2-32730
in your web browser . 3040-12-189-5374Transmission Fluid Cooler3040121895374 121895374 AM13JFL9A2-2-32730
enable JavaScript in your web browser . 3040-12-198- 2539Fluessigkeits Kopf3040121982539 121982539 2-32730
fsc-5310/us 5310-00-690-0192 Washer 5310006900192 006900192,32730 Amplifier5996008026086 008026086 32730
Restrictions 2815-00-277-2919
2815-00-277-2919 is a Piston Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2815-00-277-2919
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2815-00-277-2919
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- US Air Force (FGGC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FGAX
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 2815-00-277-2919
- Part Number
- Manufacturer
- Status
- 32730
- Manufacturer
- 75370 - Kaydon Ring & Seal Inc (Active)
- Primary Buy
- Primary Buy
- MADG5BPC18-19
- 82796 - Coltec Industries Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- CADH8A
- 72447 - Dana Commercial Vehicle (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10ADE5APC18-19
- 82796 - Coltec Industries Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 13ADD5APC18-19
- 82796 - Coltec Industries Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 15ADD5APC18-19
- 82796 - Coltec Industries Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 7ADD5APC18-19
- 82796 - Coltec Industries Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- ADE8A
- 82796 - Coltec Industries Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MADG5APC18-19
- 82796 - Coltec Industries Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- ADH8A
- 82796 - Coltec Industries Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- CADH8A
- 82796 - Coltec Industries Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MADH8A
- 58786 - Moparts Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- CADH8A
- 7PZX0 - Fairbanks Morse, Llc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 2815-00-277-2919
- Characteristic
- Specifications
- FIIG
- Specifications
- A08400
- Cross-Sectional Shape Style [AAGR]

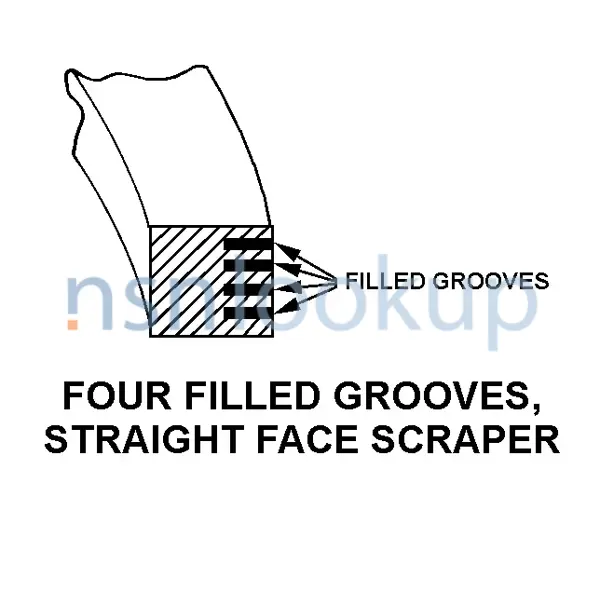

- Four Filled Grooves, Straight Face Scraper
