2815-00-273-0600
Piston Ring
2815002730600 002730600 65326 9263-2 4972 H65326 H9263-2
A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL. View more Piston Ring
January 2023
9
Marketplace 2815-00-273-0600
Request a Quotation from participating marketplace vendors
Related Documents 2815-00-273-0600 5+ Documents (More...)
(Identification) 1/3 NSN 2815-00-273-0600 (Identification) 2/3 NSN 2815-00-273-0600 (Identification
RING,PISTON 2 EA NS Request Quotation Updated Every Day 65326 RQST NE Updated Every Day 9263-2 RQST
Piston Ring 2815210038143 210038143,65326 Details... 65326 for $1 a day Upgrade your Account Upgrade
https//www.nsnlookup.com /fsg-28/fsc-2815/us 2815-00-273-0600 Piston Ring 2815002730600 002730600,65326
how to enable JavaScript in your web browser . 2815-21-003-8143Piston Ring2815210038143 210038143 65326
//www.nsnlookup.com /fsg-28/fsc-2815/ca 2815-21-003-8143 Piston Ring 2815210038143 210038143,65326 65326
Banjo X 18mm Male "O" Ring STK NE $419.94 Distributor Buy Now Subscribe to View Vendor Details... 65326
//www.nsnlookup.com /fsg-41/fsc-4140/us 4140-01-544-3312 Tubeaxial Fan 4140015443312015443312 3911-65326
//www.nsnlookup.com /fsg-41/fsc-4140/us 4140-01-544-3312 Tubeaxial Fan 4140015443312015443312 3911-65326
for $1 a day Upgrade your Account Upgrade 4140-01-544-3312Tubeaxial Fan4140015443312 0154433123911-65326
Restrictions 2815-00-273-0600
2815-00-273-0600 is a Piston Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2815-00-273-0600
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2815-00-273-0600
- NASA (G160)
- Effective Date:
- 1 Apr 1991
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 2815-00-273-0600
- Part Number
- Manufacturer
- Status
- 65326
- Manufacturer
- 15434 - Cummins Inc. (Active)
- Primary Buy
- Primary Buy
- 9263-2
- 15434 - Cummins Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4972
- 77220 - Dana Corp Engine Products Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- H65326
- 63734 - Kaitlin Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- H65326
- 15434 - Cummins Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- H9263-2
- 15434 - Cummins Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2815-00-273-0600
- Characteristic
- Specifications
- FIIG
- Specifications
- A08400

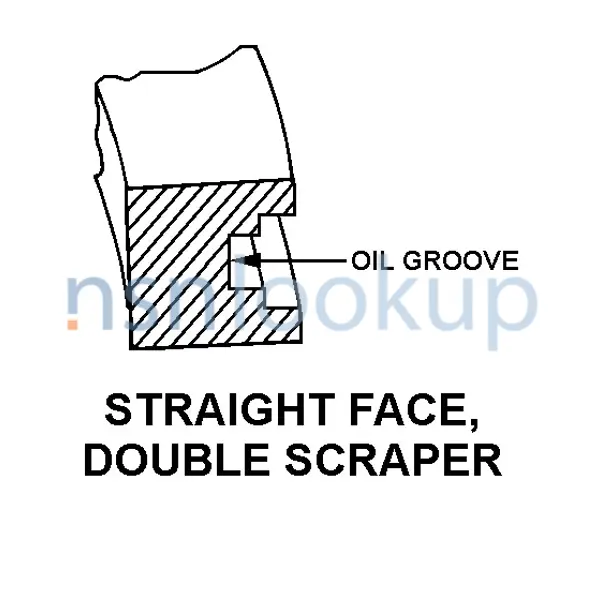

- Cross-Sectional Shape Style [AAGR]
- Straight Face, Double Scraper
- Fsc Application Data [ZZZV]
- Piston,Diesel Engine
- Material [MATT]
- Iron Overall
- Oil Passage Type And Quantity [CQKZ]
- 1 Groove Outside Periphery
- Joint Style [ADTE]
- Vertical Joint
- Radial Wall Thickness [ACXF]
- 0.1800 Inches Minimum And 0.1900 Inches Maximum
- Ring Style [ACXD]
- Concentric
- Overall Width [ACXJ]
- 0.1860 Inches Minimum And 0.1865 Inches Maximum
- Standard Bore Diameter [ACXZ]
- 4.875 Inches
Similar Supply Items to 2815-00-273-0600
Freight Information 2815-00-273-0600
2815-00-273-0600 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126700. A Sub NMFC of X. It has a NMFC Description of PISTON RINGS,IRON. 2815-00-273-0600 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64230 which rates the freight between FCL and LCL. 2815-00-273-0600 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2815-00-273-0600 is not classified as a special type of cargo when transported by water. 2815-00-273-0600 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2815-00-273-0600
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-21260, Preservative and Break-in Lubricating Oil, Internal Combustion Engine, Grade 10, 30 or 50
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
