2815-00-192-8764
Piston Ring
2815001928764 001928764 291-50190
A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL. View more Piston Ring
May 2023
9
Marketplace 2815-00-192-8764
Request a Quotation from participating marketplace vendors
Related Documents 2815-00-192-8764 4+ Documents (More...)
RING,PISTON 1 EA NS Request Quotation Updated Every Day 2815-00-192-8764 RQST NE Updated Every Day 2815
-00-192-8764 RQST Updated Every Day 2815-00-192-8764 RQST NE Related Documents 2815-00-192-8764 5+ Documents
vendors Request Updated Every Day 2805-99-201-1802 https//www.nsnlookup.com /fsg-28/fsc-2815/us 2815-00-192-8764
Piston Ring 2815001928764 001928764,291-50190 Upgrade for $1 a day Upgrade your Account Upgrade
Piston Ring 2815001928764 001928764,291-50190 a Quotation from participating marketplace vendors
Request Subscribe to View Vendor Details... 291-50190 291-50190 A circular, single or multipiece item
or multipiece item, metallic or nonmetallic in https//www.nsnlookup.com /fsg-28/fsc-2815/us 2815-00-192-8764
Piston Ring 2815001928764 001928764,291-50190 a Quotation from participating marketplace vendors
Restrictions 2815-00-192-8764
2815-00-192-8764 is a Piston Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2815-00-192-8764
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2815-00-192-8764
- US Navy (N9BC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Apr 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2815-00-192-8764
- Part Number
- Manufacturer
- Status
- 291-50190
- Manufacturer
- K0160 - Lister Petter Ltd (Active)
- Primary Buy
- Primary Buy
Datasheet 2815-00-192-8764
- Characteristic
- Specifications
- FIIG
- Specifications
- A08400

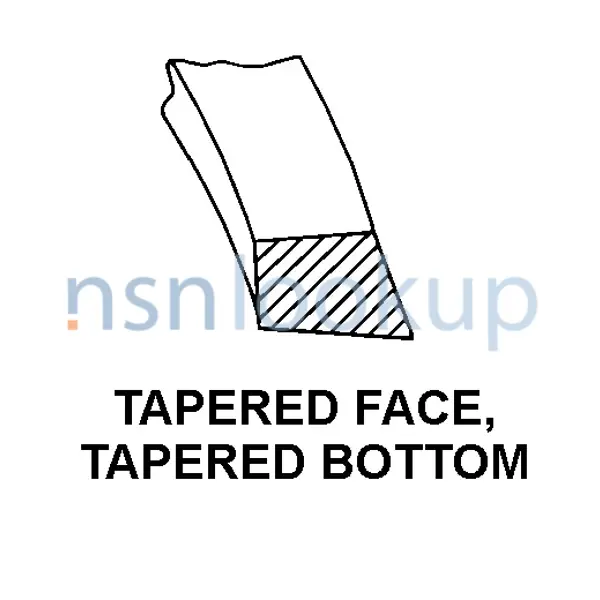

- Cross-Sectional Shape Style [AAGR]
- Tapered Face, Tapered Bottom
- Material [MATT]
- Iron Overall
- Joint Style [ADTE]
- Vertical Joint
- Radial Wall Thickness [ACXF]
- 0.1540 Inches Minimum And 0.1610 Inches Maximum
- Ring Style [ACXD]
- Concentric
- Overall Width [ACXJ]
- 0.1240 Inches Minimum And 0.1250 Inches Maximum
- Standard Bore Diameter [ACXZ]
- 4.000 Inches
DLA Procurement Analysis 2815-00-192-8764
Management Data 2815-00-192-8764
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 2815-00-192-8764
Freight Information 2815-00-192-8764
2815-00-192-8764 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126700. A Sub NMFC of X. It has a NMFC Description of PISTON RINGS,IRON. 2815-00-192-8764 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 2815-00-192-8764 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64230 which rates the freight between FCL and LCL. 2815-00-192-8764 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 2815-00-192-8764 is not classified as a special type of cargo when transported by water. 2815-00-192-8764 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2815-00-192-8764
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 2815-00-192-8764 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
