2815-00-150-7407

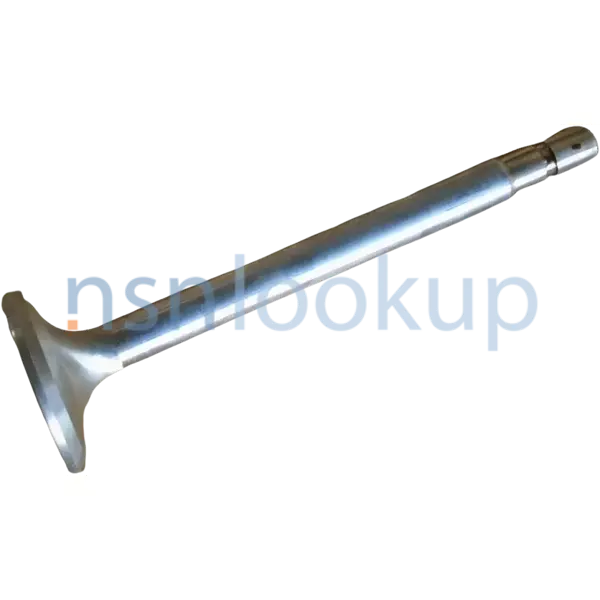

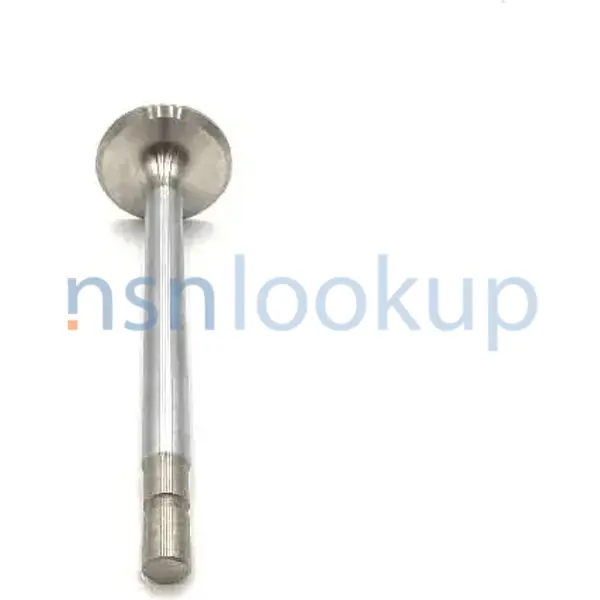

Engine Poppet Valve
2815001507407 001507407 11610010 V73065M1 42011 B00759-00
A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine. View more Engine Poppet Valve
Managed by United States
NSN Created on 17 Aug 1970
Data Last Changed
November 2023
November 2023
NATO Update Count
28
28
NATO Data Quality
Marketplace 2815-00-150-7407
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 2815-00-150-7407 5+ Documents (More...)
11610010 V73065M1 42011 B00759-00 A mushroom or tulip-shaped item having a circular head with a conical
United States (US) 4. 2815-00-150-7407 Marketplace Restrictions Approved Sources Datasheet Management
,ENGINE 1 EA NS Request Quotation Subscribe to View Vendor Details... 42011 VALVE,POPPET,ENGINE 20 EA
United States (US) 4. 2815-00-150-7407 Marketplace Restrictions Approved Sources Datasheet Management
,ENGINE 1 EA NS Request Quotation Subscribe to View Vendor Details... 42011 VALVE,POPPET,ENGINE 20 EA
https//www.nsnlookup.com
/fsg-31/fsc-3120/es
/fsg-31/fsc-3120/es
3120-33-001-0117 Sleeve Bushing 3120330010117 330010117
to enable JavaScript in your web browser . 3120-33-001-0117Sleeve Bushing3120330010117 330010117 35-42011
//www.nsnlookup.com /fsg-31/fsc-3120/es 3120-33-001-6445 Sleeve Bushing 3120330016445330016445 35-42011
Engine Poppet Valve 2815001507407 001507407, 6445Sleeve Bushing3120330016445 330016445 35-42011
//www.nsnlookup.com /fsg-31/fsc-3120/es 3120-33-001-6445 Sleeve Bushing 3120330016445330016445 35-42011
Engine Poppet Valve 2815001507407 001507407, 6445Sleeve Bushing3120330016445 330016445 35-42011
https//www.nsnlookup.com
/fsg-31/fsc-3120/es
/fsg-31/fsc-3120/es
3120-33-001-6445 Sleeve Bushing 3120330016445 330016445
to enable JavaScript in your web browser . 3120-33-001-6445Sleeve Bushing3120330016445 330016445 35-42011
www.nsnlookup.com /fsg-31/fsc-3120/es 3120-33-001-6445 https//www.nsnlookup.com /fsg-28/fsc-2815/us 2815-00-150-7407
Engine Poppet Valve 2815001507407 001507407, Vendor Details... 42011 VALVE,POPPET,ENGINE 20 EA
www.nsnlookup.com /fsg-31/fsc-3120/es 3120-33-001-6445 https//www.nsnlookup.com /fsg-28/fsc-2815/us 2815-00-150-7407
Engine Poppet Valve 2815001507407 001507407, Vendor Details... 42011 VALVE,POPPET,ENGINE 20 EA
day Upgrade your Account Upgrade 2990-12-339-4477Exhaust Muffler2990123394477 123394477 TYPE DAS-16 42011
MUFFLER,EXHAUST 17 EA NS Request Quotation Subscribe to View Vendor Details... 42011 MUFFLER,EXHAUST
1 EA NS Request Quotation Subscribe to View Vendor Details... 42011 MUFFLER,EXHAUST 20 EA NS Request
MUFFLER,EXHAUST 17 EA NS Request Quotation Subscribe to View Vendor Details... 42011 MUFFLER,EXHAUST
1 EA NS Request Quotation Subscribe to View Vendor Details... 42011 MUFFLER,EXHAUST 20 EA NS Request
https//www.nsnlookup.com
/fsg-59/fsc-5995/uk
/fsg-59/fsc-5995/uk
5995-99-715-7726 Wiring Harness 5995997157726 997157726
enable JavaScript in your web browser . 5995-99-715-7726Wiring Harness5995997157726 997157726 WD4182-42011
-6044 WD4182-42011 An item consisting of two or more individually insulated conductors (solid, stranded
-6044WD4182-42011 An item consisting of two or more individually https//www.nsnlookup.com /fsg-99/fsc
-6044 WD4182-42011 An item consisting of two or more individually insulated conductors (solid, stranded
-6044WD4182-42011 An item consisting of two or more individually https//www.nsnlookup.com /fsg-99/fsc
Restrictions 2815-00-150-7407
2815-00-150-7407 is a Engine Poppet Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2815-00-150-7407
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2815-00-150-7407
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FGGC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FGAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Feb 1998
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Oct 1999
Approved Sources 2815-00-150-7407
- Part Number
- Manufacturer
- Status
- 11610010
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 42011
- 92856 - Eaton Corp Engine Components Div (Obsolete)
- Original Design
- Original Design
- V73065M1
- D0985 - Federal-Mogul Valvetrain Gmbh (Active)
- Secondary Buy
- Secondary Buy
- B00759-00
- D0985 - Federal-Mogul Valvetrain Gmbh (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2815001507407
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2815001507407
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2815-00-150-7407
- Characteristic
- Specifications
- FIIG
- Specifications
- A11200
- Distance From Groove To Stem End [ALZG]
- 1.1440 Inches Minimum And 1.2700 Inches Maximum
- Carbon Relief Groove [ALYZ]
- Not Included
- Chamfer Length [AAZP]
- 0.0300 Inches Nominal
- Groove Width [ABGF]
- 0.0730 Inches Nominal
- Head Height [AASU]
- 0.2430 Inches Nominal
- Metallic Hardness Rating And Location [ASXJ]
- 32.0 Rockwell C Minimum Stem
- Metallic Hardness Rating And Location [ASXJ]
- 32.0 Rockwell C Minimum Head Err-100
- Metallic Hardness Rating And Location [ASXJ]
- 60.0 Shore Scleroscope Minimum Tip Err-100
- Minor Outside Diameter [ADNA]
- 0.4280 Inches Minimum And 0.4420 Inches Maximum
- Minor Diameter Length [AGRA]
- 0.1560 Inches Minimum And 0.1660 Inches Maximum
- Neck Radius [ALZB]
- 0.5000 Inches Nominal
- Material And Location [ANNQ]
- Steel,Ms-201,Trw Mechanical Products Div. Head
- Material And Location [ANNQ]
- Steel,Ms-201,Trw Mechanical Products Div. Stem
- Material And Location [ANNQ]
- Steel,Ms-41,Trw Mechanical Products Div. Tip
- Seat Angle In Deg [AJFY]
- 45.0
- Outside Diameter [ABKV]
- 2.1820 Inches Minimum And 2.1920 Inches Maximum
Weapon Systems (WSDC) 2815-00-150-7407
DLA Procurement Analysis 2815-00-150-7407
- Last Stock Position:
- 1647 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2815-00-150-7407
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- TG
- AF SICA RESIDUAL MMAC-WR-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 2815-00-150-7407
2815-15-109-8791 2815-15-119-1604 2815-14-499-4707 2815-14-300-6336 2815-15-101-7611 2815-14-262-1906 2805-14-350-4019 2815-99-915-1481 2815-12-198-4472 2815-99-433-4912 2815-12-389-4496 2815-14-502-6559 2815-12-360-3371 2815-15-179-1424 2815-99-460-0251 2815-12-335-6222 2815-19-004-8002 2815-14-558-8511
Freight Information 2815-00-150-7407
2815-00-150-7407 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 2815-00-150-7407 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 2815-00-150-7407 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2815-00-150-7407 is not classified as a special type of cargo when transported by water. 2815-00-150-7407 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2815-00-150-7407
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- MIL-PRF-121, Greaseproof, Waterproof Barrier
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- MIL-PRF-121, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Open Solicitations 2815-00-150-7407 1 Records
Procurement History 2815-00-150-7407 4 Records
Contracting Technical Data File (CTDF) 2815-00-150-7407 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
