2810-00-293-3767
Piston Pin
2810002933767 002933767 91311
A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW. View more Piston Pin
January 2023
19
Marketplace 2810-00-293-3767
Request a Quotation from participating marketplace vendors
Related Documents 2810-00-293-3767 5+ Documents (More...)
Piston Pin 2810002933767 002933767,91311 Documents 2810-00-293-3767 5+ Documents ( More... ) https https
https//www.nsnlookup.com /fsg-28/fsc-2810/us 2810-00-293-3767 Piston Pin 2810002933767 002933767,91311
129574-91311 An instrument designed to measure and indicate pressure and vacuum, on one dial having
Piston Pin 2810002933767 002933767,91311 in your web browser . 6515-33-004-3575Surgical Absorbable
www.nsnlookup.com /fsg-53/fsc-5340/fr 5340-14-441-6382 Seal Retaining Plate 5340144416382144416382 1-91311
Piston Pin 2810002933767 002933767,91311 Request Quotation Updated Every Day 2810-00-293- https
129574-91311 An instrument designed to measure and indicate pressure and vacuum, on one dial having
Piston Pin 2810002933767 002933767,91311 Upgrade for $1 a day Upgrade your Account Upgrade 2810
NumberManufacturerStatus6311ZZC3E 53035 - Nsk Corp https//www.nsnlookup.com /fsg-28/fsc-2810/us 2810-00-293-3767
Piston Pin 2810002933767 002933767,91311 Secondary Buy RNCC 5 RNVC 2 DAC 6 DX-91311 https https
Restrictions 2810-00-293-3767
2810-00-293-3767 is a Piston Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2810-00-293-3767
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2810-00-293-3767
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 2810-00-293-3767
- Part Number
- Manufacturer
- Status
- 91311
- Manufacturer
- 00198 - Pratt & Whitney Canada Corp (Active)
- Primary Buy
- Primary Buy
- 91311
- 77445 - Rtx Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2810-00-293-3767
- Characteristic
- Specifications
- FIIG
- Specifications
- A09500
- Distance From End To Groove Center [ANTT]
- 0.0880 Inches Minimum And 0.0980 Inches Maximum
- Body Length [ADAQ]
- 4.1550 Inches Minimum And 4.1650 Inches Maximum

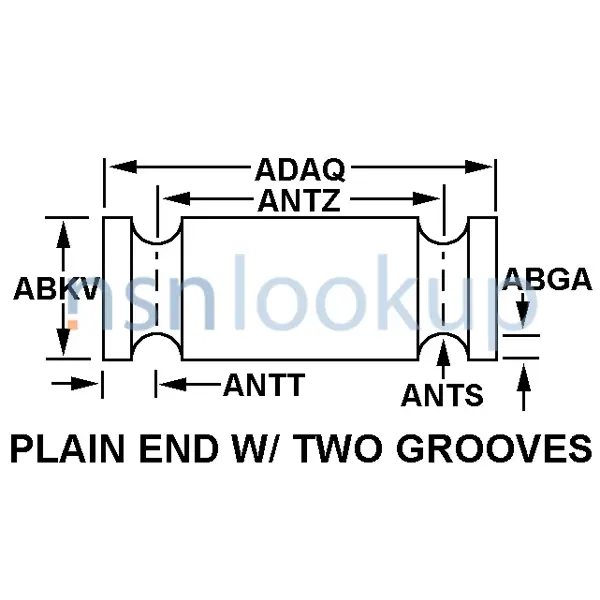

- Body Style [AAQL]
- Plain End W/Two Grooves
- Bore Smallest Diameter [AGWJ]
- 0.8900 Inches Nominal
- Bore Style [ANTP]
- Tapered Bore
- Casehardening Indicator [AASG]
- Not Casehardened
- Distance Between Groove Centers [ANTZ]
- 3.9740 Inches Nominal
- Groove Depth [ABGA]
- 0.0587 Inches Nominal
- Material [MATT]
- Steel Comp 4640
- Metallic Hardness Rating [AETC]
- 47.0 Minimum Rockwell C And 50.0 Maximum Rockwell C
- Outside Diameter [ABKV]
- 1.37225 Inches Minimum And 1.37275 Inches Maximum
- Fsc Application Data [ZZZV]
- Acft Eng R1830
- Largest Bore Diameter [AGWK]
- 1.0000 Inches Nominal
- Material Document And Classification [MDCL]
- Ams 6312 Assn Std Single Material Response
- Radial Groove Radius [ANTS]
- 0.048 Inches Nominal
- Taper Length [ABND]
- 1.2690 Inches Nominal
NATO Stock Numbers Related to 2810-00-293-3767
Freight Information 2810-00-293-3767
2810-00-293-3767 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 2810-00-293-3767 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2810-00-293-3767 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 2810-00-293-3767 is not classified as a special type of cargo when transported by water. 2810-00-293-3767 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
