2810-00-118-9499
Valve Spring Retainer Lock
2810001189499 001189499 17018
A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers. View more Valve Spring Retainer Lock
January 2023
20
Marketplace 2810-00-118-9499
Request a Quotation from participating marketplace vendors
Related Documents 2810-00-118-9499 5+ Documents (More...)
United States (US) 4. 2810-00-118-9499 Marketplace Restrictions Approved Sources Datasheet Management
Day 2810-00-118-9499 RQST Updated Every Day 2810-00-118-9499 RQST NE Related Documents 2810-00-118-9499
BEZEL,INSTRUMENT MOUNTING 170 EA NS Request Quotation Subscribe to View Vendor Details... 17018 BEZEL
-002-023 17018-02-23 Managed by Germany NSN Created on 19 Apr 1984 Data Last Changed January 2023 NATO
-02 NumberManufacturerStatus17018-002-006 D2029 - Hydro Systems Kg (Active) Primary Buy -002-014 17018
https//www.nsnlookup.com /fsg-28/fsc-2810/us 2810-00-118-9499 Valve Spring Retainer Lock 2810001189499
/fsg-61/fsc-6150/us
-000 A0-17018-000 An item consisting of two or more individually insulated conductors (solid, stranded
-000 RQST NE Updated Every Day A0-17018-000 RQST NE Updated Every Day 6150-01-530-9207 RQST NE Updated
8415/au 8415-66-153-7418 Extreme Cold Weather Drawers 8415661537418 8415-0097DEF(AUST)81969-327868-17018
99-423-8306 By- Safety Cap Tool 1355994238306 994238306 747-5018 Part NumberManufacturerStatus3990/17018
Restrictions 2810-00-118-9499
2810-00-118-9499 is a Valve Spring Retainer Lock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2810-00-118-9499
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2810-00-118-9499
- Germany (ZG01)
- Effective Date:
- 1 Nov 2011
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 2810-00-118-9499
- Part Number
- Manufacturer
- Status
- 17018
- Manufacturer
- 00198 - Pratt & Whitney Canada Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 2810-00-118-9499
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-H
- Bottom Countersink Included Angle In Deg [BQTP]
- 60.0
- Casehardening Indicator [AASG]
- Not Casehardened
- Material [MATT]
- Copper Alloy
- Minimum Inside Diameter [BKKZ]
- 0.340 Inches
- Outside Included Angle In Deg [BRQJ]
- 15.0
- Fsc Application Data [ZZZV]
- Engine,Aircraft,Reciprocating
- Largest Top Countersink Diameter [BQTH]
- 0.383 Inches Minimum And 0.387 Inches Maximum
- Largest Bottom Countersink Diameter [BQTJ]
- 0.383 Inches Minimum And 0.387 Inches Maximum
- Largest Outside Diameter [AGWM]
- 0.615 Inches Minimum And 0.617 Inches Maximum
- Overall Height [ABKW]
- 0.371 Inches Minimum And 0.373 Inches Maximum

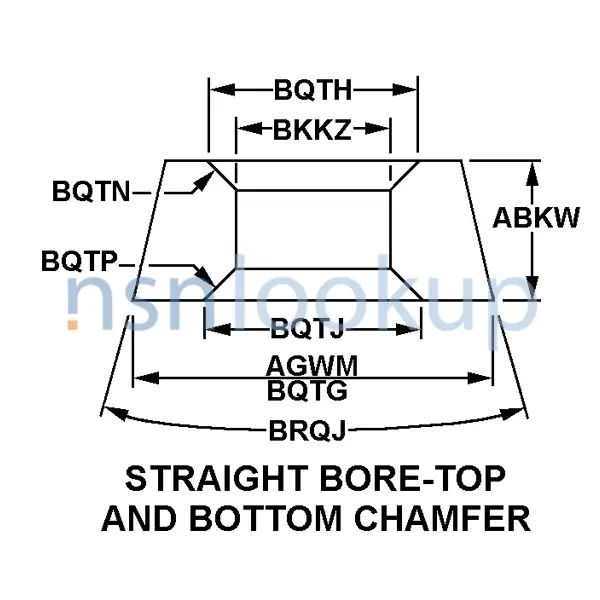

- Style Designator [STYL]
- Straight Bore-Top And Bottom Chamfer
- Thread Provision [AFEW]
- Unthreaded
- Top Countersink Included Angle In Deg [BQTN]
- 60.0
Similar Supply Items to 2810-00-118-9499
Freight Information 2810-00-118-9499
2810-00-118-9499 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 2810-00-118-9499 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2810-00-118-9499 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 2810-00-118-9499 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2810-00-118-9499 is not classified as a special type of cargo when transported by water. 2810-00-118-9499 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
