2805-00-962-8431
Valve Spring Retainer Lock
2805009628431 009628431 634985
A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers. View more Valve Spring Retainer Lock
May 2023
4
Marketplace 2805-00-962-8431
Request a Quotation from participating marketplace vendors
Related Documents 2805-00-962-8431 2+ Documents (More...)
Updated Every Day 2805-00-962-8431 RQST NE Related Documents 2805-00-962-8431 2+ Documents ( More...
) https//www.nsnlookup.com /fsg-28/fsc-2805/us 2805-00-962-8431 Valve Spring Retainer Lock 2805009628431
123847254,634985 6625-12-384-7254 2+ Documents https//www.nsnlookup.com /fsg-28/fsc-2805/us 2805-00-962-8431
Valve Spring Retainer Lock 2805009628431 day Upgrade your Account Upgrade 2805-00-962-8431Valve
Restrictions 2805-00-962-8431
2805-00-962-8431 is a Valve Spring Retainer Lock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2805-00-962-8431
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2805-00-962-8431
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 2805-00-962-8431
- Part Number
- Manufacturer
- Status
- 634985
- Manufacturer
- 11083 - Caterpillar Inc (Active)
- Primary Buy
- Primary Buy
- 634985
- 73782 - Towmotor Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2805-00-962-8431
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-H
- Distance From Bottom To First Ridge Center [BRPX]
- 0.187 Inches Nominal
- Casehardening Indicator [AASG]
- Not Casehardened
- Distance Between First And Second Ridge Centers [BRPR]
- 0.105 Inches Nominal
- First Ridge Width [BRPZ]
- 0.055 Inches Nominal
- First Ridge Radius [BRPN]
- 0.170 Inches Nominal
- Material [MATT]
- Steel
- Minimum Inside Diameter [BKKZ]
- 0.344 Inches
- Inside Included Angle In Deg [BRQH]
- 92.0
- Largest Inside Diameter [AGRU]
- 0.400 Inches Nominal
- Largest Outside Diameter [AGWM]
- 0.545 Inches Nominal
- Second Ridge Radius [BRPP]
- 0.170 Inches Nominal
- Outside Included Angle In Deg [BRQJ]
- 20.0
- Overall Height [ABKW]
- 0.370 Inches Nominal

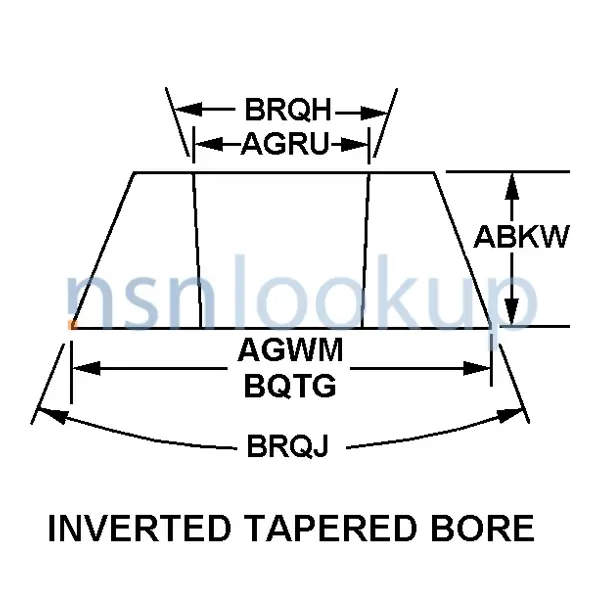

- Style Designator [STYL]
- Inverted Tapered Bore
- Thread Provision [AFEW]
- Unthreaded
DLA Procurement Analysis 2805-00-962-8431
Management Data 2805-00-962-8431
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 2805-00-962-8431
Freight Information 2805-00-962-8431
2805-00-962-8431 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019700. A Sub NMFC of X. It has a NMFC Description of AUTO SYSTEMS LATCH R LOCK. 2805-00-962-8431 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50130 which rates the freight between FCL and LCL. 2805-00-962-8431 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2805-00-962-8431 is not classified as a special type of cargo when transported by water. 2805-00-962-8431 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2805-00-962-8431
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 2805-00-962-8431 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
