2805-00-847-2296
Engine Poppet Valve Tappet
2805008472296 008472296 911776R2 911776R3 677541C1 606492C1
A cylindrically shaped metal item designed to transmit intermittent motion from the cam lobe on a shaft or cam ring, to the engine poppet valve. It may be mechanically or hydraulically operating, and may include adjusting devices. View more Engine Poppet Valve Tappet
May 2023
19
Marketplace 2805-00-847-2296
Request a Quotation from participating marketplace vendors
Related Documents 2805-00-847-2296 1+ Documents (More...)
TAPPET,ENGINE POPPET VALVE 2 EA NS Request Quotation Subscribe to View Vendor Details... 911776R3
Day 911776R3 RQST NE Updated Every Day 677541C1 RQST NE Updated Every Day 606492C1 RQST NE Updated Every
Restrictions 2805-00-847-2296
2805-00-847-2296 is a Engine Poppet Valve Tappet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2805-00-847-2296
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2805-00-847-2296
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- US Air Force (FUGC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FUAX
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2805-00-847-2296
- Part Number
- Manufacturer
- Status
- 911776R2
- Manufacturer
- 89346 - Navistar Intl Corp Truck Br Ohio (Active)
- Primary Buy
- Primary Buy
- 911776R3
- 45RP7 - Dressta North America Ltd (Active)
- Secondary Buy
- Secondary Buy
- 911776R3
- 92679 - Navistar Intl Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 677541C1
- 92679 - Navistar Intl Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 606492C1
- 92679 - Navistar Intl Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2805-00-847-2296
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-F
- Operation Method [APHE]
- Hydraulic
- Material And Location [ANNQ]
- Steel Overall
- Casehardening Indicator [AASG]
- Casehardened
- Casehardened Location [ALWP]
- Overall

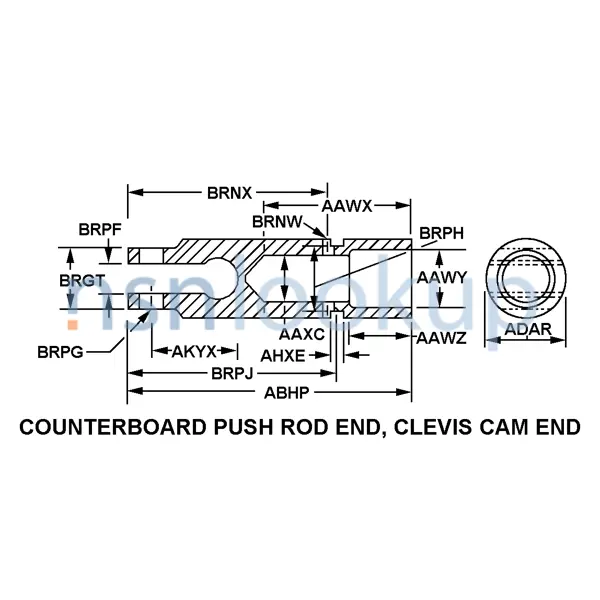

- Style Designator [STYL]
- Counterboard Push Rod End, Clevis Cam End
- Concentric Hole Diameter [AAXC]
- 0.815 Inches Nominal
- Overall Length [ABHP]
- 2.433 Inches Nominal
- Body Outside Diameter [ADAR]
- 0.995 Inches Nominal
- Cam End Diameter [BRNM]
- 1.000 Inches Nominal
- Adjustability [APCS]
- Nonadjustable
DLA Procurement Analysis 2805-00-847-2296
Management Data 2805-00-847-2296
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 2805-00-847-2296
Freight Information 2805-00-847-2296
2805-00-847-2296 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 125720. A Sub NMFC of X. It has a NMFC Description of MINING STAMP MILL CAMS,DIES MORTARS. 2805-00-847-2296 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63730 which rates the freight between FCL and LCL. 2805-00-847-2296 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2805-00-847-2296 is not classified as a special type of cargo when transported by water. 2805-00-847-2296 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2805-00-847-2296
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- --
- --
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 2805-00-847-2296 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
