2805-00-540-5299
Internal Combustion Engine Piston
2805005405299 005405299 DB213SP40 1632109 220455AS040 00182004-4 F162A4171E040 F162A04171E40
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
May 2023
May 2023
NATO Update Count
29
29
NATO Data Quality
Marketplace 2805-00-540-5299
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 2805-00-540-5299 3+ Documents (More...)
DB213SP40 1632109 220455AS040 00182004-4 F162A4171E040 F162A04171E40 Managed by United States NSN Created
(Identification) 1/2 NSN 2805-00-540-5299 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 2805-00-540-5299 RQST Updated Every Day 2805-00-540-5299 RQST NE Related Documents
(Identification) 1/2 NSN 2805-00-540-5299 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 2805-00-540-5299 RQST Updated Every Day 2805-00-540-5299 RQST NE Related Documents
your web browser . 5935-14-498-9807Electrical Receptacle Connector5935144989807 144989807 1632 109 1632109
Internal Combustion Engine Piston 005405299 Account Upgrade 2805-00-540-5299Internal Combustion
Engine Piston2805005405299 005405299 DB213SP40 1632109 Electrical Receptacle Connector 144989807 your
Internal Combustion Engine Piston 005405299 Account Upgrade 2805-00-540-5299Internal Combustion
Engine Piston2805005405299 005405299 DB213SP40 1632109 Electrical Receptacle Connector 144989807 your
Restrictions 2805-00-377-5644 DEMIL: B | DEMILI : | https//www.nsnlookup.com /fsg-28/fsc-2805/us 2805-00-540-5299
Internal Combustion Engine Piston 005405299 AssyUOMTechnical DocumentQuantative ExpressionUS Marine
Internal Combustion Engine Piston 005405299 AssyUOMTechnical DocumentQuantative ExpressionUS Marine
Restrictions 2805-00-540-5299
2805-00-540-5299 is a Internal Combustion Engine Piston that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2805-00-540-5299
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2805-00-540-5299
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZCT
- US Air Force (FUGC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FUAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC01
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2805-00-540-5299
- Part Number
- Manufacturer
- Status
- DB213SP40
- Manufacturer
- 66289 - Wisconsin Motors Llc (Active)
- Primary Buy
- Primary Buy
- 1632109
- 12204 - Chrysler Realty Company Llc (Active)
- Secondary Buy
- Secondary Buy
- 220455AS040
- 1ML14 - Brinkley Technology Group Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1632109
- 93334 - Atwood Fence Co Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 00182004-4
- 64104 - Dresser, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- F162A4171E040
- 14351 - Teledyne Continental Motors (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 220455AS040
- 28265 - Hercules Engine Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- F162A04171E40
- 14351 - Teledyne Continental Motors (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2805-00-540-5299
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-C
- Distance Between Pin Bosses [AXPM]
- 1.380 Inches Nominal
- Distance From Pin Hole Center To Extreme Top [AXPK]
- 2.000 Inches Nominal
- Carbon Groove [BQBL]
- Not Included
- Diameter [ABMZ]
- 3.478 Inches Nominal
- Finished Size Designation [AXFR]
- Oversize
- Head Style [AASK]
- Flat
- Material [MATT]
- Aluminum Alloy
- Oil Groove [AXPH]
- Not Included
- Oil Passage Type [ACXM]
- Hole
- Fsc Application Data [ZZZV]
- Engine,Gasoline,Reciprocating
- Pin Hole Bushing [AXPL]
- Not Included
- Pin Type For Which Designed [AXPQ]
- Floating
- Pinhole Diameter [ACXU]
- 0.8596 Inches Nominal
- Pin [AXPP]
- Included
- Retaining Ring Groove [AXPN]
- Included
- Ring Groove Diameter [AXGD]
- 3.085 Inches Nominal And 3.085 Inches Nominal And 3.085 Inches Nominal
- Ring Groove Quantity [AXFZ]
- 4
- Ring Groove Width [AXGB]
- 0.0970 Inches Nominal And 0.0979 Inches Nominal And 0.1570 Inches Nominal And 0.1576 Inches Nominal
- Ring [AXPR]
- Not Included
- Skirt Bottom Cutaway Feature [AXFX]
- Not Included
- Skirt Type [AXFT]
- Solid

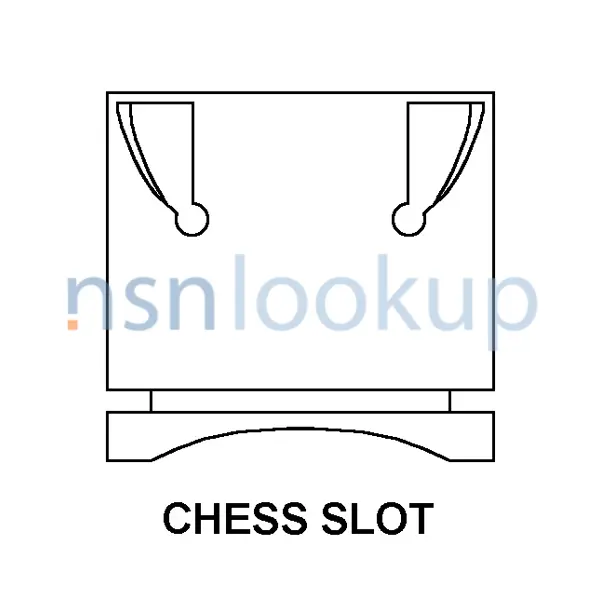

- Skirt Slot Style [CXSP]
- Chess Slot
- Overall Height [ABKW]
- 3.500 Inches Nominal
- Oversize [AXFS]
- 0.040 Inches Nominal
- Weight [WGHT]
- 17.0 Ounces
- Surface Finish [AGYE]
- Finished
- Surface Treatment [SFTT]
- Tin
Weapon Systems (WSDC) 2805-00-540-5299
DLA Procurement Analysis 2805-00-540-5299
Management Data 2805-00-540-5299
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 2805-00-377-5644
- 4
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SU
- AF SICA RESIDUAL MMAC-OO-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 2805-00-540-5299
2815-12-304-9253 2805-27-008-6018 2815-99-746-0877 2815-21-798-4846 2805-14-538-7953 2815-33-158-1205 2990-99-207-6632 2805-27-015-9406 2815-33-126-3788 2805-99-405-7338 2990-99-764-3480 2805-12-171-2710 2805-21-871-6354 2815-14-329-3910 2805-15-007-7506 2805-27-050-0326 2805-14-538-4736 2815-15-152-5309
Freight Information 2805-00-540-5299
2805-00-540-5299 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 120800. A Sub NMFC of Z. It has a NMFC Description of ENGINES, INTERNAL COMBUSTION, NOI. 2805-00-540-5299 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 61410 which rates the freight between FCL and LCL. 2805-00-540-5299 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2805-00-540-5299 is not classified as a special type of cargo when transported by water. 2805-00-540-5299 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2805-00-540-5299
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-21260, Preservative and Break-in Lubricating Oil, Internal Combustion Engine, Grade 10, 30 or 50
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 2805-00-540-5299 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
