2805-00-424-2802
Piston Ring
2805004242802 004242802 DC112AS20
A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL. View more Piston Ring
January 2023
9
Marketplace 2805-00-424-2802
Request a Quotation from participating marketplace vendors
Related Documents 2805-00-424-2802 1+ Documents (More...)
2805-00-424-2802 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-28/fsc-2805/us 2805-00-424-2802
2805-00-424-2802 (Identification RQST NE Updated Every Day 2805-00-424-2802 RQST Updated Every Day 2805
Restrictions 2805-00-424-2802
2805-00-424-2802 is a Piston Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2805-00-424-2802
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2805-00-424-2802
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 2805-00-424-2802
- Part Number
- Manufacturer
- Status
- DC112AS20
- Manufacturer
- 66289 - Wisconsin Motors Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 2805-00-424-2802
- Characteristic
- Specifications
- FIIG
- Specifications
- A08400
- Bore Diameter Oversize [ACYA]
- 0.020 Inches

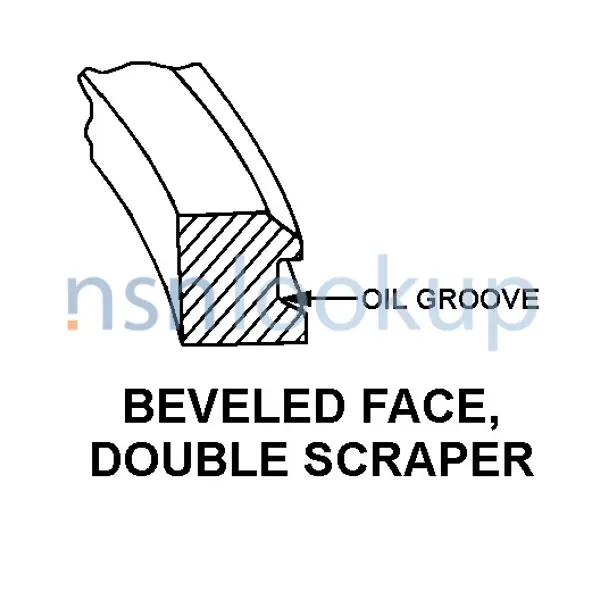

- Cross-Sectional Shape Style [AAGR]
- Beveled Face, Double Scraper
- Material [MATT]
- Steel Overall
- Oil Passage Type And Quantity [CQKZ]
- 1 Groove Top
- Joint Style [ADTE]
- Diagonal Joint
- Radial Wall Thickness [ACXF]
- 0.1350 Inches Minimum And 0.1450 Inches Maximum
- Ring Style [ACXD]
- Concentric
- Overall Width [ACXJ]
- 0.1860 Inches Minimum And 0.1870 Inches Maximum
- Standard Bore Diameter [ACXZ]
- 3.250 Inches
Similar Supply Items to 2805-00-424-2802
Freight Information 2805-00-424-2802
2805-00-424-2802 has freight characteristics.. 2805-00-424-2802 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
