2805-00-277-2940
Piston Ring
2805002772940 002772940 47115A
A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL. View more Piston Ring
May 2023
3
Marketplace 2805-00-277-2940
Request a Quotation from participating marketplace vendors
Related Documents 2805-00-277-2940 2+ Documents (More...)
BUY NE FedMall Updated Every Day 2805-00-277-2940 RQST NE Updated Every Day 2805-00-277-2940 RQST
Updated Every Day 2805-00-277-2940 RQST NE Related Documents 2805-00-277-2940 2+ Documents ( More...
Documents 5930-01-435-0054 5+ Documents ( More... https//www.nsnlookup.com /fsg-28/fsc-2805/us 2805-00-277-2940
Piston Ring 2805002772940 002772940,47115A Upgrade for $1 a day Upgrade your Account Upgrade 2805
Restrictions 2805-00-277-2940
2805-00-277-2940 is a Piston Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2805-00-277-2940
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2805-00-277-2940
- US Navy (N9BC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 2805-00-277-2940
- Part Number
- Manufacturer
- Status
- 47115A
- Manufacturer
- 1ML14 - Brinkley Technology Group Llc (Active)
- Primary Buy
- Primary Buy
- 47115A
- 28265 - Hercules Engine Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2805-00-277-2940
- Characteristic
- Specifications
- FIIG
- Specifications
- A08400

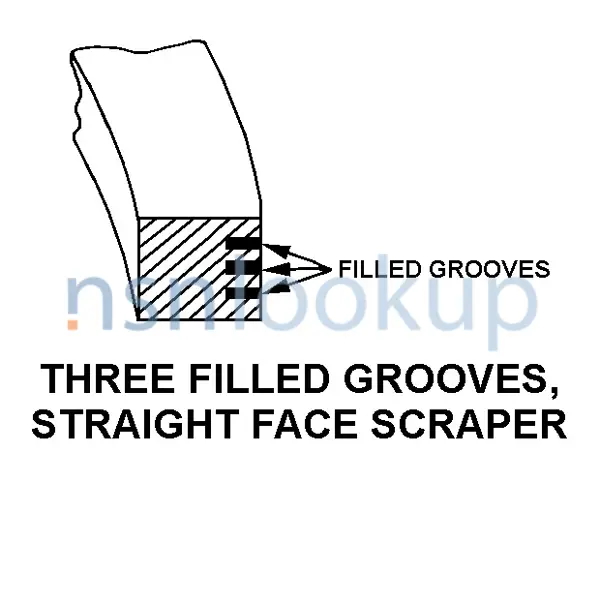

- Cross-Sectional Shape Style [AAGR]
- Three Filled Grooves, Straight Face Scraper
- Material [MATT]
- Iron Overall
- Joint Style [ADTE]
- Vertical Joint
- Radial Wall Thickness [ACXF]
- 0.1500 Inches Nominal
- Ring Style [ACXD]
- Concentric
- Overall Width [ACXJ]
- 0.1235 Inches Minimum And 0.1240 Inches Maximum
- Standard Bore Diameter [ACXZ]
- 3.4375 Inches
- Surface Treatment [SFTT]
- Nickel Silver Overall
DLA Procurement Analysis 2805-00-277-2940
Management Data 2805-00-277-2940
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 2805-00-277-2940
Freight Information 2805-00-277-2940
2805-00-277-2940 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126700. A Sub NMFC of X. It has a NMFC Description of PISTON RINGS,IRON. 2805-00-277-2940 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 2805-00-277-2940 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64230 which rates the freight between FCL and LCL. 2805-00-277-2940 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 2805-00-277-2940 is not classified as a special type of cargo when transported by water. 2805-00-277-2940 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 2805-00-277-2940 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
