2805-00-275-3055
Piston Pin
2805002753055 002753055 22238 P955 22238BSTD 83222 22238B P937 W9318 22238-B W-265 U953677
A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW. View more Piston Pin
November 2023
21
Marketplace 2805-00-275-3055
Request a Quotation from participating marketplace vendors
Related Documents 2805-00-275-3055 5+ Documents (More...)
-00-275-3055 Piston Pin 2805002753055 002753055,22238,P955 22238P95522238BSTD8322222238BP937W931822238
Every Day 2805-00-275-3055 RQST NE Related ) Primary Buy RNCC 3 RNVC 2 DAC 2 22238-B 1ML14 - Brinkley
https//www.nsnlookup.com /fsg-43/fsc-4320/uk 4320-99-075-6142 Power Driven Hydraulic Pumping Unit,P937
https//www.nsnlookup.com /fsg-43/fsc-4320/uk 4320-99-075-6142 Power Driven Hydraulic Pumping Unit,P937
https//www.nsnlookup.com /fsg-53/fsc-5310/es 5310-33-209-8946 Flat Washer 5310332098946 332098946 83222
Upgrade your Account Upgrade 4470-00-689-5893Valve Plunger4470006895893 006895893820-438377982919-2M1-83222
Piston Pin 2805002753055 002753055,22238,P955 -83222.2 DM83222 8100281 1315-12-305-9220 1315-12
002753055,22238,P955 -83222.2 DM83222 8100281 1315-12-305-9220 1315-12-306-9245 1315-12-309-4813 8140
Restrictions 2805-00-275-3055
2805-00-275-3055 is a Piston Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2805-00-275-3055
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2805-00-275-3055
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2805-00-275-3055
- Part Number
- Manufacturer
- Status
- 22238
- Manufacturer
- 1ML14 - Brinkley Technology Group Llc (Active)
- Primary Buy
- Primary Buy
- P955
- 53581 - Grand Rapids Sectional Equipment Co (Obsolete)
- Primary Buy
- Primary Buy
- 22238BSTD
- 1ML14 - Brinkley Technology Group Llc (Active)
- Primary Buy
- Primary Buy
- 22238-B
- 1ML14 - Brinkley Technology Group Llc (Active)
- Primary Buy
- Primary Buy
- 83222
- 36024 - Libby Power Systems, Llc (Active)
- Secondary Buy
- Secondary Buy
- 22238B
- 89749 - Clark Material Handling Company (Active)
- Secondary Buy
- Secondary Buy
- P937
- 59875 - Eaton Corp (Active)
- Secondary Buy
- Secondary Buy
- U953677
- 89749 - Clark Material Handling Company (Active)
- Secondary Buy
- Secondary Buy
- P937
- 78557 - Toledo Pickling & Steel Sales (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- W9318
- 76255 - Mcquay-Norris Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 22238-B
- 28265 - Hercules Engine Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 22238BSTD
- 28265 - Hercules Engine Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- W-265
- 83087 - Gould Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 22238
- 28265 - Hercules Engine Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 22238B
- 12603 - Clark Equipment Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- U953677
- 12603 - Clark Equipment Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2805-00-275-3055
- Characteristic
- Specifications
- FIIG
- Specifications
- A09500
- Distance From End To Slot Center [ANTW]
- 1.750 Inches Minimum And 1.766 Inches Maximum
- Body Length [ADAQ]
- 3.5000 Inches Minimum And 3.5156 Inches Maximum

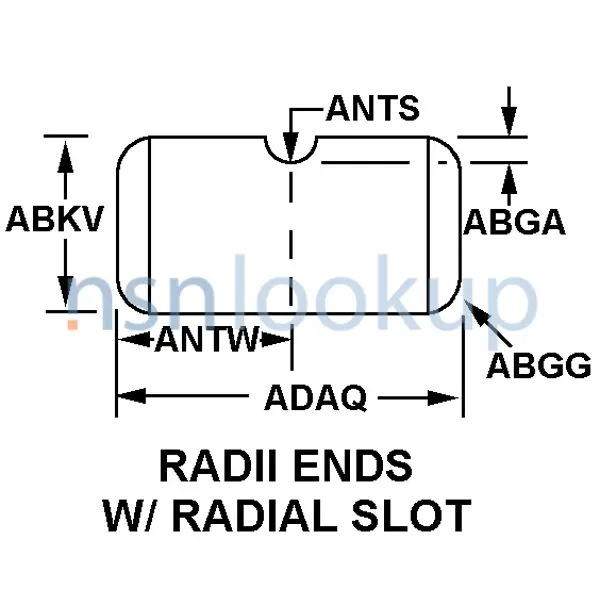

- Body Style [AAQL]
- Radii Ends W/Radial Slot
- Bore Smallest Diameter [AGWJ]
- 0.3750 Inches Nominal
- Bore Style [ANTP]
- Inside Chamfer, Tapered And Counterbored
- Casehardening Indicator [AASG]
- Casehardened
- Counterbore Depth [AAWZ]
- 0.188 Inches Nominal
- Countersink Angle In Deg [AATA]
- 30.0
- Groove Depth [ABGA]
- 0.0920 Inches Nominal
- Material [MATT]
- Steel Comp 1019
- Metallic Hardness Rating [AETC]
- 65.7 Minimum Rockwell C And 71.8 Maximum Rockwell C
- Outside Diameter [ABKV]
- 0.99950 Inches Minimum And 0.99970 Inches Maximum
- Fsc Application Data [ZZZV]
- Engine,Gasoline,Nonaircraft
- Largest Bore Diameter [AGWK]
- 0.7812 Inches Nominal
- Material Document And Classification [MDCL]
- Fed Std 66 Fed Std Single Material Response Or Aisi 1019 Assn Std Single Material Response Or Sae 1019 Assn Std Single Material Response
- Radius [ABGG]
- 0.312 Inches Nominal
- Radial Groove Radius [ANTS]
- 0.188 Inches Nominal
- Taper Length [ABND]
- 1.3125 Inches Nominal
Similar Supply Items to 2805-00-275-3055
Freight Information 2805-00-275-3055
2805-00-275-3055 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 2805-00-275-3055 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2805-00-275-3055 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 2805-00-275-3055 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2805-00-275-3055 is not classified as a special type of cargo when transported by water. 2805-00-275-3055 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
