2805-00-274-3461

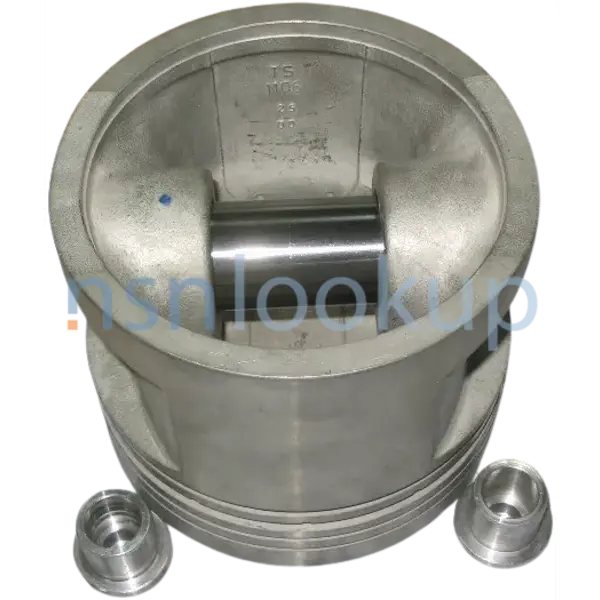

Internal Combustion Engine Piston
2805002743461 002743461 525122-010 525166 7410353
INC: 16509 Internal Combustion Engine Piston
March 2025
26
Marketplace 2805-00-274-3461
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 2805-00-274-3461 5+ Documents (More...)
Every Day 2805-00-274-3461 RQST NE Updated Every Day 2805-00-274-3461 RQST Updated Every Day 2805-00
/fsg-28/fsc-2805/us 2805-00-274-3461 Internal Combustion Engine Piston 002743461 525122-0105251667410353
www.nsnlookup.com /fsg-59/fsc-5930/dk 5930-22-620-2534 Pressure Switch 5930226202534226202534 017-525166
Internal Combustion Engine Piston 002743461 Account Upgrade 2805-00-274-3461Internal Combustion
www.nsnlookup.com /fsg-59/fsc-5930/dk 5930-22-620-2534 Pressure Switch 5930226202534226202534 017-525166
enable JavaScript in your web browser . 5930-22-620-2534Pressure Switch5930226202534 226202534017-525166
SM-B-525166 METER,ARBITRARY SCALE 23 EA NS Request Quotation Updated Every Day 6625-00-110-9881 RQST
METER,ARBITRARY SCALE 23 EA NS Request https//www.nsnlookup.com /fsg-28/fsc-2805/us 2805-00-274-3461
Internal Combustion Engine Piston 002743461 Upgrade your Account Upgrade 2805-00-274-3461Internal
Combustion Engine Piston2805002743461 002743461 525122 to View Vendor Details... 7410353 PISTON,INTERNAL
Restrictions 2805-00-274-3461
2805-00-274-3461 is a Internal Combustion Engine Piston that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2805-00-274-3461
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2805-00-274-3461
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 2001
Approved Sources 2805-00-274-3461
- Part Number
- Manufacturer
- Status
- 525122-010
- Manufacturer
- 02978 - Renk America Llc (Active)
- Primary Buy
- Primary Buy
- 525166
- 02978 - Renk America Llc (Active)
- Primary Buy
- Primary Buy
- 7410353
- 19207 - U S Army Tank Automotive Command (Active)
- Secondary Buy
- Secondary Buy
Datasheet 2805-00-274-3461
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-C
- Distance From Pin Hole Center To Extreme Top [AXPK]
- 3.263 Inches Minimum And 3.268 Inches Maximum
- Carbon Groove [BQBL]
- Not Included
- Cut Depth [AXFW]
- 0.155 Inches Nominal
- Diameter [ABMZ]
- 5.750 Inches Nominal
- Distance Between Pin Bosses [AXPM]
- 2.000 Inches Nominal
- Finished Size Designation [AXFR]
- Oversize
- Head Style [AASK]
- Concave
- Material [MATT]
- Aluminum
- Oil Groove [AXPH]
- Not Included
- Oil Passage Type [ACXM]
- Hole
- Retaining Ring Groove [AXPN]
- Not Included
- Ring Groove Diameter [AXGD]
- 5.169 Inches Minimum And 5.179 Inches Maximum 3Rd Ring
- Ring Groove Diameter [AXGD]
- 5.169 Inches Minimum And 5.179 Inches Maximum 4Th Ring
- Ring Groove Diameter [AXGD]
- 5.264 Inches Minimum And 5.274 Inches Maximum 2Nd Ring
- Ring Groove Diameter [AXGD]
- 5.301 Inches Minimum And 5.311 Inches Maximum 1St Ring
- Ring Groove Quantity [AXFZ]
- 4
- Ring Groove Width [AXGB]
- 0.0980 Inches Minimum And 0.0990 Inches Maximum 1St Ring
- Ring Groove Width [AXGB]
- 0.0980 Inches Minimum And 0.0990 Inches Maximum 2Nd Ring
- Ring Groove Width [AXGB]
- 0.1880 Inches Minimum And 0.1890 Inches Maximum 4Th Ring
- Ring Groove Width [AXGB]
- 0.1890 Inches Minimum And 0.1900 Inches Maximum 3Rd Ring
- Ring [AXPR]
- Not Included
- Skirt Bottom Cutaway Feature [AXFX]
- Included
- Skirt Type [AXFT]
- Solid
- Overall Height [ABKW]
- 4.855 Inches Minimum And 4.895 Inches Maximum
- Oversize [AXFS]
- 0.010 Inches Nominal
- Pin Hole Bushing [AXPL]
- Not Included
- Pin Type For Which Designed [AXPQ]
- Floating
- Pinhole Diameter [ACXU]
- 1.3760 Inches Nominal
- Pin [AXPP]
- Included
- Special Features [FEAT]
- Furnished W/2 Piston Pin Plugs
- Ring Groove Position [AXGA]
- Unable To Decode
- Surface Finish [AGYE]
- Finished
Similar Supply Items to 2805-00-274-3461
Freight Information 2805-00-274-3461
2805-00-274-3461 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 2805-00-274-3461 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2805-00-274-3461 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 2805-00-274-3461 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 2805-00-274-3461 is not classified as a special type of cargo when transported by water. 2805-00-274-3461 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
