2805-00-118-9083
Valve Tappet Adjusting Screw
2805001189083 001189083 1162
An externally threaded screw-like device with a hexagon, square, slotted or any other type drive end. The other end may have a spherical ball, socket or other type of machined surface. It may have a concentric hole along the longitudinal centerline and a hole perpendicular to the axis joining the concentric hole for lubrication. It is specifically designed to be used as a means for adjusting engine poppet valve tappet clearances and may be furnished with a lock nut. View more Valve Tappet Adjusting Screw
January 2023
12
Marketplace 2805-00-118-9083
Request a Quotation from participating marketplace vendors
Related Documents 2805-00-118-9083 2+ Documents (More...)
Every Day 2805-00-118-9083 RQST NE Related Documents 2805-00-118-9083 1+ Documents ( More... ) https
//www.nsnlookup.com /fsg-28/fsc-2805/us 2805-00-118-9083 Valve Tappet Adjusting Screw 2805001189083 1162
Restrictions 2805-00-118-9083
2805-00-118-9083 is a Valve Tappet Adjusting Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 2805-00-118-9083
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 2805-00-118-9083
- Part Number
- Manufacturer
- Status
- 1162
- Manufacturer
- 55948 - Botoman Mfg Co Inc (Obsolete)
- Original Design
- Original Design
- 1162
- 70188 - Franklin Engine Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2805-00-118-9083
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-M
- Casehardening Indicator [AASG]
- Casehardened
- End Spherical Radius [BQTD]
- 0.125 Inches Nominal
- First End Thread Length [ATKZ]
- 0.125 Inches Nominal
- Material [MATT]
- Steel
- Second End Thread Length [ATLF]
- 0.250 Inches Nominal
- Overall Length [ABHP]
- 0.715 Inches Nominal

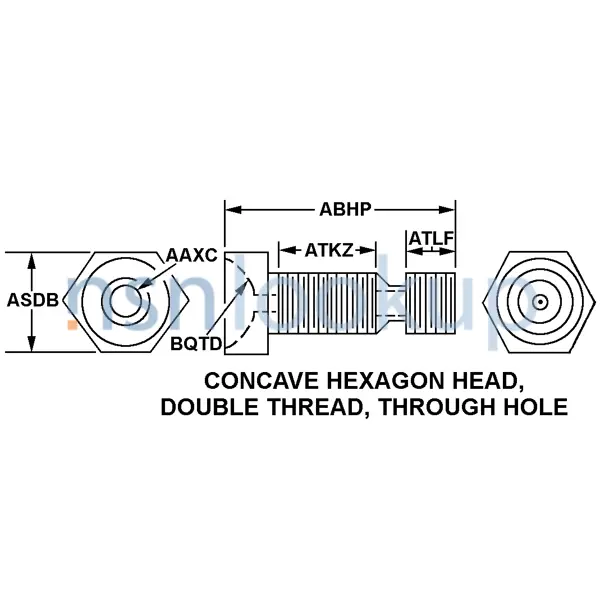

- Style Designator [STYL]
- Concave Hexagon Head, Double Thread, Through Hole
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Series [BZRR]
- Unf
- Thread Size [ABUJ]
- 0.438-20
Similar Supply Items to 2805-00-118-9083
Freight Information 2805-00-118-9083
2805-00-118-9083 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 2805-00-118-9083 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 2805-00-118-9083 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 2805-00-118-9083 is not classified as a special type of cargo when transported by water. 2805-00-118-9083 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2805-00-118-9083
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-21260, Preservative and Break-in Lubricating Oil, Internal Combustion Engine, Grade 10, 30 or 50
- --
- --
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
