2640-00-255-9916
Tire Valve Extension
2640002559916 002559916 7742A
A metal, or a combination metal and rubber tube, designed to be fitted to a pneumatic tire valve stem, to increase overall length. View more Tire Valve Extension
January 2023
12
Marketplace 2640-00-255-9916
Request a Quotation from participating marketplace vendors
Related Documents 2640-00-255-9916 1+ Documents (More...)
United States (US) 4. 2640-00-255-9916 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 2640-00-255-9916 RQST Updated Every Day 2640-00-255-9916 RQST NE Related Documents
Restrictions 2640-00-255-9916
2640-00-255-9916 is a Tire Valve Extension that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 2640-00-255-9916
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2640-00-255-9916
- Italy (ZR01)
- Effective Date:
- 1 Feb 1994
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Nov 2003
Approved Sources 2640-00-255-9916
- Part Number
- Manufacturer
- Status
- 7742A
- Manufacturer
- 27783 - Schrader-Bridgeport International (Active)
- Primary Buy
- Primary Buy
- 7742A
- 53477 - Scovill Inc Schrader Bellows Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete

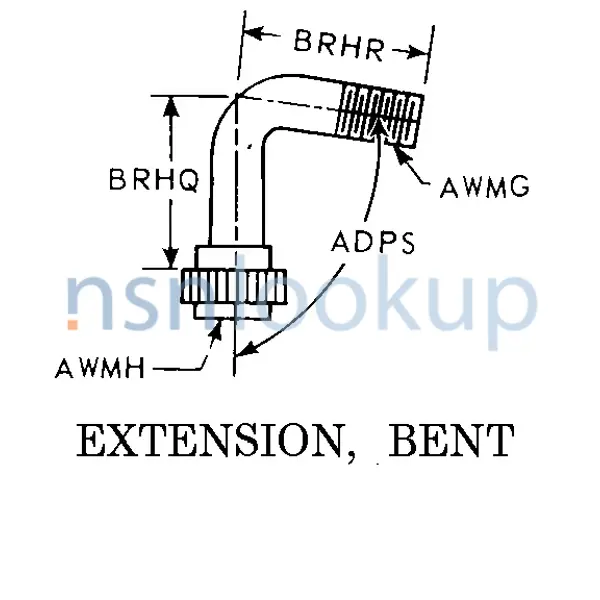

Datasheet 2640-00-255-9916
- Characteristic
- Specifications
- FIIG
- Specifications
- T318-G
- Design Type [APGF]
- Rigid-Metal
- Style Designator [STYL]
- Extension, Bent
- Inside Angle In Deg [ADPS]
- 84.500
- External Thread Size [AWMG]
- 0.302-32
- Internal Thread Size [AWMH]
- 0;311-32
- Effective Height [BRHQ]
- 1.000 Inches Nominal
- Distance From Center To End [BRHR]
- 1.250 Inches Nominal
- Valve Core Accommodation [BRHH]
- Not Included
- Bore Size Designation [BRHJ]
- Standard
- Furnished Items And Quantity [AKYN]
- Cap Valve-1,Core Extension-1
Management Data 2640-00-255-9916
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 1997
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- V
- Discontinued Without Replacement
- V
Navy
- Cognizance:
- 9A
Similar Supply Items to 2640-00-255-9916
Freight Information 2640-00-255-9916
2640-00-255-9916 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 188320. A Sub NMFC of X. It has a NMFC Description of VALVES PNEUMATIC TIRES. 2640-00-255-9916 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. 2640-00-255-9916 is rated as class 100 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 92610 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 584 for ocean manifesting and military sealift. 2640-00-255-9916 is not classified as a special type of cargo when transported by water. 2640-00-255-9916 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2640-00-255-9916
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 2.0" H x 0.5" W x 0.5" L
- --
- --
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 2.6" H x 0.9" W x 0.7" L
- --
- --
- --
- Any Suitable Process
- 2.6" H x 0.9" W x 0.7" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- 100
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
