2590-00-999-2340

Nonrotating Shaft Eye Bracket

2590009992340 009992340 5125488 PC5125488

A rigid metal item usually fabricated from steel castings and/or welded steel pieces and designed with one or more hole(s) in line to accompany and hold, align, or support a nonrotating mechanical shaft. It has mounting holes for fastening to a supporting member or main body. It may have provision to accommodate a pin or threaded fastener to hold the shaft in a fixed position. View more Nonrotating Shaft Eye Bracket

2590-00-999-2340 BRACKET,EYE,NONROTATING SHAFT 2590009992340 009992340

Managed by United States
NSN Created on 18 Apr 1966
Data Last Changed
November 2023
NATO Update Count
38
NATO Data Quality
2590-00-999-2340 BRACKET,EYE,NONROTATING SHAFT 2590009992340 009992340 1/1

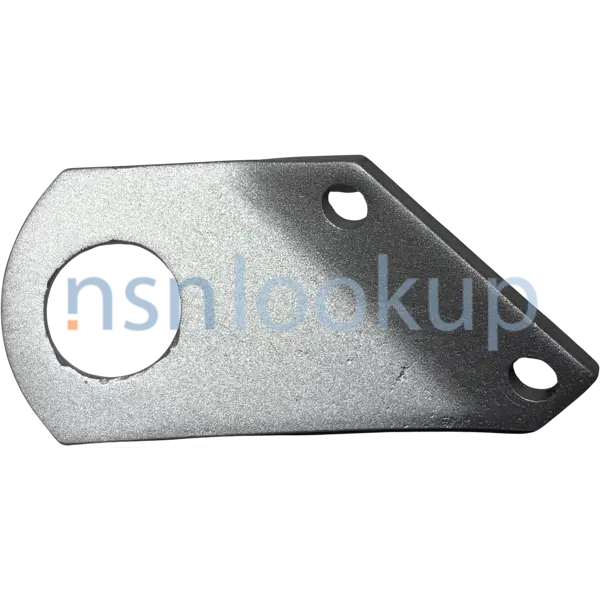

NSN 2590-00-999-2340 (Generic Image) 1/1

2590-00-999-2340 Stock and Availability Marketplace 2590-00-999-2340

2590-00-999-2340 Related Documents Related Documents 2590-00-999-2340 3+ Documents (More...)

5995-37-512-5488 5995375125488 375125488 is a definite length of cable, radio frequency having one or both ends processed and/or terminated in fittings which provide for connection to other items. includes multiple cable assemblies in a common jacket or shield. excludes items having branches or forks and lead, test. see also cable assembly, radio frequency, branched.
5305-00-512-5488 5305005125488 005125488 is an externally threaded fastener whose threaded portion is of one nominal diameter. the head has an internal socket or multiple spline for use with an inserted driver. a locking feature may be incorporated in the design of the head or threads. excludes items with bevel (conical) heads. see bolt, internal wrenching. excludes screw, shoulder; and screw, machine.
5310-01-512-5488 5310015125488 015125488 is a nut, circular in shape, which may have wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery or in the face opposite the bearing surface. for items having a thickness (or height) exceeding two times the outside diameter, use post, electrical-mechanical equipment. see also nut (1), plain, knurled. (when height or thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.)

2590-00-999-2340 Demil Restrictions 2590-00-999-2340

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: U | EDC: | ADPEC:

2590-00-999-2340 is a Nonrotating Shaft Eye Bracket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

2590-00-999-2340 HTS and ScheduleB Import and Export 2590-00-999-2340

2590-00-999-2340 End Users End Users 2590-00-999-2340

US Army (A920)
Effective Date:
1 Jun 2006
Former MOE Rule:
A181
Supplementary Receivers:
AZ
US Coast Guard (C911)
Effective Date:
1 Jun 2006
Former MOE Rule:
C001
US Air Force (FGGC)
Effective Date:
1 Jun 2006
Former MOE Rule:
FGAX
US Marine Corps (MC40)
Effective Date:
1 Jun 2006
Former MOE Rule:
MC01
US Navy (N9BC)
Effective Date:
1 Jun 2006
Former MOE Rule:
N9CD
Supplementary Collaborators:
HDKE
Lithuania (WI01)
Effective Date:
1 May 2001
Brazil (YA01)
Effective Date:
1 Dec 2001
Spain (YB01)
Effective Date:
1 Feb 1994
Morocco (YP01)
Effective Date:
1 Sep 2011
Malaysia (YW01)
Effective Date:
1 Sep 2005
Australia (ZA01)
Effective Date:
1 Apr 1991
Belgium (ZB01)
Effective Date:
1 Apr 1991
Canada (ZC01)
Effective Date:
1 Apr 1991
France (ZF01)
Effective Date:
1 Jun 2015
Germany (ZG01)
Effective Date:
1 Apr 1991
Republic of Korea (ZH01)
Effective Date:
1 Apr 1991
United Kingdom (ZK01)
Effective Date:
10 Nov 2010
Netherlands (ZN01)
Effective Date:
1 Apr 1991
Portugal (ZP01)
Effective Date:
1 Feb 2013
Norway (ZT01)
Effective Date:
1 Apr 1991
Greece (ZU01)
Effective Date:
1 Jan 1994
Turkey (ZW01)
Effective Date:
1 Aug 1993

2590-00-999-2340 Manufacturers Approved Sources 2590-00-999-2340

2590-00-999-2340 Technical Data Datasheet 2590-00-999-2340

Characteristic
Specifications
FIIG
A524A0
Material [MATT]
Steel
Bore Inside Diameter [BCXD]
1.205 Inches Nominal
Overall Length [ABHP]
5.210 Inches Nominal
Width [ABGL]
2.765 Inches Nominal
Overall Height [ABKW]
0.325 Inches Nominal
Bolt Hole Quantity [AECS]
2
Bolt Hole Size [BCXK]
0.400 In.
Special Features [FEAT]
Enter To Center Distance Between Bolt Holes: 1.970 In. Between Centers

2590-00-999-2340 Weapon Systems (WSDC) Weapon Systems (WSDC) 2590-00-999-2340

2590-00-999-2340 Stock, Inventory and Procurement DLA Procurement Analysis 2590-00-999-2340

Last Stock Position:
439 In Stock
DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

2590-00-999-2340 Management Data Management Data 2590-00-999-2340

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Oct 2022
Department of the Navy (DN)
EA
Subscribe
1
Oct 2021
US Coast Guard (GP)
EA
Subscribe
1
Oct 2020
Department of the Air Force (DF)
EA
Subscribe
1
Oct 2019
Department of the Army (DA)
EA
Subscribe
1

Army Army

Materiel Category and Inventory Manager:
J
Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity:
2
Stock Fund Secondary Items
Management Inventory Segment:
2
Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
Weapons System / End Item / Homogeneous Group:
00
DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements:
X
Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force Air Force

Fund:
SF
Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
Budget:
9
57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
Price Validation Code:
N
The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ā€œLā€ or ā€œFā€, then it must be evaluated locally where purchased or fabricated.
Expendability
Recoverability
Repairability:
N
Expendable. Condemn at User. Stock Fund (except Munitions).

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps Marine Corps

Stores Account:
1
Stock Fund Account Item
Combat Essentiality:
5
Critical Repair Part to a Combat Essential End Item
Echelon Management:
B2
Operational Test:
No Special Procedures

2590-00-999-2340 Related Items NATO Stock Numbers Related to 2590-00-999-2340

2590-00-999-2340 Freight Data Freight Information 2590-00-999-2340

2590-00-999-2340 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093600. A Sub NMFC of X. It has a NMFC Description of BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC. 2590-00-999-2340 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 2590-00-999-2340 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 2590-00-999-2340 is not classified as a special type of cargo when transported by water. 2590-00-999-2340 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

2590-00-999-2340 Packaging Data Packaging Data 2590-00-999-2340

Responsible Activity
Packaging Data Source
Primary Inventory Control Activity (PICA)
--

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation
--
--
Bare Metal Item
Over 10lb
Less than 85G
No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying
1
5.2" H x 2.8" W x 0.3" L
--
--
--
--
Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking
--
--
--
--
--
No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container
See Method of Preservation
--

2590-00-999-2340 Procurement History Procurement History 2590-00-999-2340 1 Records

Contract
Date
CAGE
Quantity
Net Price
Std Price
SPM7LX08D9028382M
30 Jan 2013
Subscribe
278
Subscribe
Subscribe

2590-00-999-2340 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 2590-00-999-2340 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
