2590-00-116-5243

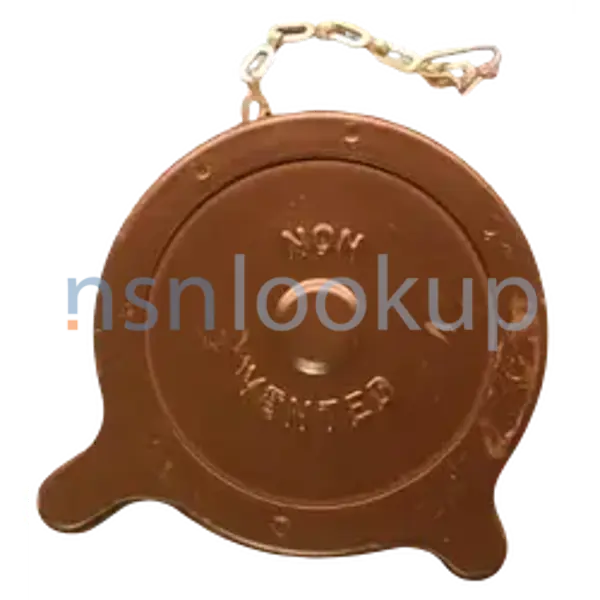

Filler Opening Cap
2590001165243 001165243 MS53075 AAI3566 AAH3560 MS53075-2 AAH3566
A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified). View more Filler Opening Cap
November 2023
39
Marketplace 2590-00-116-5243
Request a Quotation from participating marketplace vendors
Related Documents 2590-00-116-5243 5+ Documents (More...)
MS53075-1 CAP,FILLER OPENING 47 EA NS Request Quotation Subscribe to View Vendor Details... 10-0247-1
Filler Opening Cap 2590001165243 001165243 for $1 a day Upgrade your Account Upgrade 2590-00-116
Filler Opening Cap 2590001165243 001165243 2590-00-116-5243 2590001165243 001165243 is a part basically
Filler Opening Cap 2590001165243 001165243 2590-00-116-5243 2590001165243 001165243 is a part basically
MS53075-2 CAP,FILLER OPENING 1 EA NS Request Quotation Updated Every Day 2910-00-111-5191 RQST Updated
MS53075-2 CAP,FILLER OPENING 1 EA NS Request Quotation Updated Every Day 2910-00-844-0817 RQST Updated
Restrictions 2590-00-116-5243
2590-00-116-5243 is a Filler Opening Cap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2590-00-116-5243
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2590-00-116-5243
- US Army (A920)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AJ
- US Air Force (FGGC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FGAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Apr 2008
- Australia (ZA01)
- Effective Date:
- 1 Aug 2004
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Mar 2007
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1998
- United Kingdom (ZK01)
- Effective Date:
- 1 Oct 1996
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 2010
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2590-00-116-5243
- Part Number
- Manufacturer
- Status
- MS53075-2
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MS53075
- 96906 - Military Standards (Active)
- Incomplete Standard
- Incomplete Standard
- AAI3566
- 78225 - Stant Mfg Co Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AAH3560
- 78225 - Stant Mfg Co Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AAH3566
- 78225 - Stant Mfg Co Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2590-00-116-5243
- Characteristic
- Specifications
- FIIG
- Specifications
- A083A0
- Cam Quantity [AGEX]
- 3
- Features Provided [CBBL]
- Submersible
- Filler Neck Diameter For Which Designed [CQST]
- 3.312 Inches Nominal
- Gripping Accommodation Type [ABEZ]
- Knurled
- Material [MATT]
- Steel Overall
- Retaining Device Length [AJQT]
- 7.000 Inches Nominal
- Retaining Device Type [AGEZ]
- Chain
- Outside Diameter [ABKV]
- 4.625 Inches Nominal
- Overall Height [ABKW]
- 0.875 Inches Nominal
- Special Markings [MARK]
- Non Vented
- Style Designator [STYL]
- Outside Cam Type
- Surface Treatment [SFTT]
- Cadmium Overall
- System For Which Designed [AGEJ]
- Nonpressurized
DLA Procurement Analysis 2590-00-116-5243
- Last Stock Position:
- 220 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2590-00-116-5243
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 2910
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2910
- X
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- TG
- AF SICA RESIDUAL MMAC-WR-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 2590-00-116-5243
Freight Information 2590-00-116-5243
2590-00-116-5243 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 116430. A Sub NMFC of Z. It has a NMFC Description of CAPS,ENGINE RADIATOR. 2590-00-116-5243 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 20415 which rates the freight between FCL and LCL. 2590-00-116-5243 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2590-00-116-5243 is not classified as a special type of cargo when transported by water. 2590-00-116-5243 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2590-00-116-5243
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.6" H x 4.6" W x 0.9" L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.6" H x 4.6" W x 0.9" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 2590-00-116-5243 1 Records
Contracting Technical Data File (CTDF) 2590-00-116-5243 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
