2540-00-752-4313

Pintle Hook Latch

2540007524313 007524313 7524313 801780 1274487 T62-0

A metal safety device designed for securing a towing pintle lock or dog in either the open or closed position. View more Pintle Hook Latch

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
May 2023

NATO Update Count
33

NATO Data Quality

STYL Style 2 for 2540-00-752-4313 1/1 — NSN 2540-00-752-4313 (Identification) 1/1

Marketplace 2540-00-752-4313

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

T-620 LATCH,PINTLE HOOK 4 EA NS

Subscribe to View Vendor Details...

T620 LATCH,PINTLE HOOK 3 EA NS

Subscribe to View Vendor Details...

1274487 LATCH,PINTLE HOOK 39 EA NS

Subscribe to View Vendor Details...

T620 LATCH,PINTLE HOOK 221 EA NS

Subscribe to View Vendor Details...

1274487 LATCH,PINTLE HOOK 39 EA SN

2540-00-752-4313 RQST NE

Updated Every Day

2540-00-752-4313 RQST

Updated Every Day

2540-00-752-4313 RQST NE

Related Documents 2540-00-752-4313 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-25/fsc-2540/us

2540-00-752-4313 Pintle Hook Latch 2540007524313 007524313

7524313 801780 1274487 T62-0 A metal safety device designed for securing a towing pintle lock or dog
PINTLE HOOK 39 EA SN Request Quotation Updated Every Day 7524313 RQST NE Updated Every Day T62-0 RQST
NE Updated Every Day 2540-00-752-4313 RQST NE Updated Every Day 2540-00-752-4313 RQST Updated Every

https//www.nsnlookup.com
/fsg-66/fsc-6680/dk

6680-22-254-2940 Carrier 6680222542940 222542940,801780

a day Upgrade your Account Upgrade 5930-01-057-8424Toggle Switch5930010578424 010578424 644221001 801780
$1 a day Upgrade your Account Upgrade 1680-00-607-8654Air Handle Assembly1680006078654 006078654 801780
7524313 801780 Special Purpose Cable Assembly Approved Sources 5995-99- https//www.nsnlookup.com /fsg

https//www.nsnlookup.com
/fsg-84/fsc-8405/it

8405-15-106-8963 Tenda Telo Mimetico 8405151068963 151068963

in your web browser . 8405-15-106-8963Tenda Telo Mimetico8405151068963 151068963 2/20533-14.06.76-T62/0
JavaScript in your web browser . 8405-15-104-5797Uomo Uniforme8405151045797 151045797 2/20533-14.06.76-T62/0
Pintle Hook Latch 2540007524313 007524313 Carrier 6680222542940 222542940,801780 instructions https

https//www.nsnlookup.com
/fsg-59/fsc-5930/us

5930-01-057-8424 Toggle Switch 5930010578424 010578424

a day Upgrade your Account Upgrade 5930-01-057-8424Toggle Switch5930010578424 010578424 644221001 801780
a day Upgrade your Account Upgrade 5930-01-057-8424Toggle Switch5930010578424 010578424644221001 801780
-00-607-8654 Air Handle Assembly 1680006078654 006078654 -0921 Part NumberManufacturerStatusT5173-801780

https//www.nsnlookup.com
/fsg-16/fsc-1680/us

1680-00-607-8654 Air Handle Assembly 1680006078654 006078654

$1 a day Upgrade your Account Upgrade 1680-00-607-8654Air Handle Assembly1680006078654 006078654 801780
$1 a day Upgrade your Account Upgrade 3020-01-007-0968Internal Gear3020010070968 010070968 802554 801780
day Upgrade your Account Upgrade 2540-00-752-4313Pintle Hook Latch2540007524313 007524313 7524313 801780

Restrictions 2540-00-752-4313

2540-00-752-4313 is a Pintle Hook Latch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.

Import and Export 2540-00-752-4313

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 2540-00-752-4313

US Air Force (FGGC)
Effective Date:: 1 Sep 2005
Former MOE Rule:: FGAX; AMC 1 AMSC G IMC Z IMCACTY TG

Austria (WB01)
Effective Date:: 1 Feb 2005

Spain (YB01)
Effective Date:: 1 Feb 1994

Israel (YD01)
Effective Date:: 1 Jul 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Nov 2008

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Jul 1995

Turkey (ZW01)
Effective Date:: 1 Sep 2001

Approved Sources 2540-00-752-4313

Datasheet 2540-00-752-4313

Characteristic
Specifications
FIIG: T268-F
Material [MATT]: Steel Comp 8630 Or Steel Comp 4130
Pintle Type For Which Designed [BPBT]: Manual
Material Document And Classification [MDCL]: Fed Std 66, Comp 8630 Fed Std 1St Material Response And Fed Std 66, Comp 4130 Fed Std 2Nd Material Response
Pivot Pin Hole Diameter [AKYJ]: 0.498 Inches Minimum And 0.502 Inches Maximum
Overall Height [ABKW]: 1.375 Inches Nominal
Overall Length [ABHP]: 3.094 Inches Nominal
Overall Width [ABMK]: 2.375 Inches Nominal
Width At Pivot Pin Hole [BPCH]: 0.687 Inches Nominal

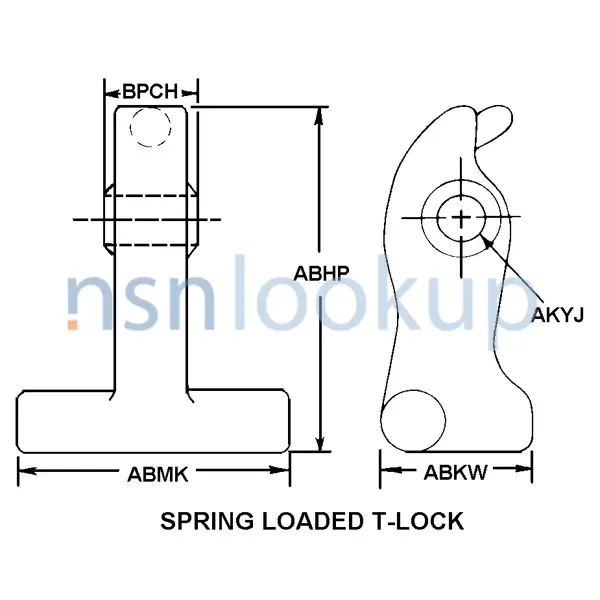

Style Designator [STYL]: Spring Loaded T-Lock
Threaded Pivot Pin Locking Hole [BPBW]: Not Included

Subscribe
View Data

DLA Procurement Analysis 2540-00-752-4313

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 2540-00-752-4313

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1
Nov 2007: US Marine Corps (DM); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; V; Discontinued W/O Replacement

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Marine Corps

Stores Account:

1: Stock Fund Account Item

Echelon Management:

C2

Operational Test:

: No Special Procedures

Similar Supply Items to 2540-00-752-4313

Freight Information 2540-00-752-4313

2540-00-752-4313 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093880. A Sub NMFC of X. It has a NMFC Description of CATCHES/LATCHES METAL NOI. 2540-00-752-4313 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49120 which rates the freight between FCL and LCL. 2540-00-752-4313 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2540-00-752-4313 is not classified as a special type of cargo when transported by water. 2540-00-752-4313 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 2540-00-752-4313

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; --; --; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
