2540-00-134-4979
Pintle Hook Latch
2540001344979 001344979 11609012
A metal safety device designed for securing a towing pintle lock or dog in either the open or closed position. View more Pintle Hook Latch
May 2023
8
Marketplace 2540-00-134-4979
Request a Quotation from participating marketplace vendors
Related Documents 2540-00-134-4979 5+ Documents (More...)
BUY NE FedMall Updated Every Day 2540-00-134-4979 RQST NE Updated Every Day 2540-00-134-4979 RQST Updated
Every Day 2540-00-134-4979 RQST NE Related Documents 2540-00-134-4979 5+ Documents ( More... ) https
001344979 204-4333 2540-33-206-0446 2540-01-278-6267 2540-14-555-2277 202-7440 2540 2540-33-202-7440
526-0434 2540001344979 001344979 204-4333 2540-33-206-0446 2540-01-278-6267 2540-14-555-2277 https//
Pintle Hook Latch 2540001344979 001344979 Pintle Hook Latch 2540332027440332027440 993621732 204
-4333 2540-33-206-0446 2540-01-278-6267 2540-14-555-2277 2540-33-202-7440 526-0434 2540001344979 001344979
001344979 204-4333 2540-33-206-0446 2540-01-278-6267 2540-14-555-2277 202-7440 2540-14-526-0434 2540002410584
Hook Latch 2540145552277145552277 Hook Latch 2540145260434 145260434 202-7440 2540-14-526 -0434 2540001344979
001344979 204-4333 2540-33-206-0446 2540-01-278-6267 2540-14-555-2277 202-7440 2540-14-526-0434 2540002410584
fsc-2540/fr 2540-14-526-0434 Pintle Hook Latch 2540145260434145260434 202-7440 2540-14-526-0434 2540001344979
Restrictions 2540-00-134-4979
2540-00-134-4979 is a Pintle Hook Latch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 2540-00-134-4979
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2540-00-134-4979
- US Air Force (FGGC)
- Effective Date:
- 1 Sep 2005
- United States of America (ZZ)
Approved Sources 2540-00-134-4979
- Part Number
- Manufacturer
- Status
- 11609012
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 2540-00-134-4979
- Characteristic
- Specifications
- FIIG
- Specifications
- T268-F
- Material [MATT]
- Steel Comp 4150 Or Steel, Fed Std 66, Comp 5150 Or Steel, Fed Std 66, Comp 6150
- Pintle Type For Which Designed [BPBT]
- Manual
- Locking Pin Hole Diameter [BPCN]
- 0.281 Inches Nominal
- Material Document And Classification [MDCL]
- Fed Std 66, Comp 4150 Fed Std 1St Material Response
- Overall Height [ABKW]
- 1.906 Inches Nominal
- Overall Length [ABHP]
- 3.235 Inches Nominal
- Overall Width [ABMK]
- 2.500 Inches Nominal
- Pivot Pin Hole Diameter [AKYJ]
- 0.752 Inches Minimum And 0.754 Inches Maximum
- Width At Pivot Pin Hole [BPCH]
- 1.093 Inches Nominal

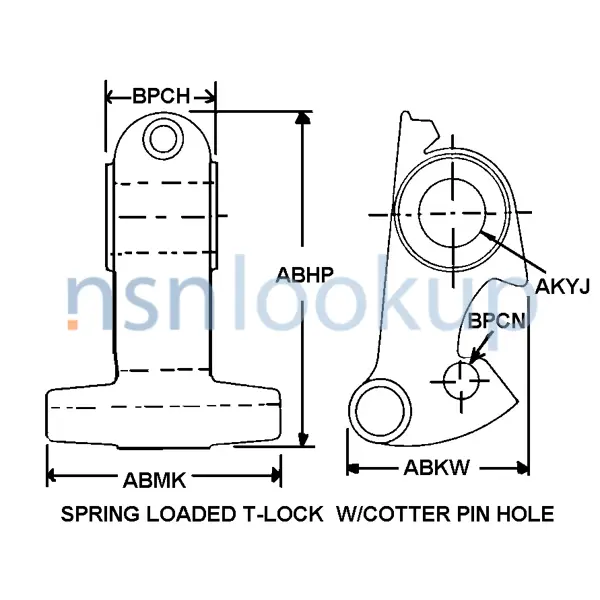

- Style Designator [STYL]
- Spring Loaded T-Lock W/Cotter Pin Hole
- Threaded Pivot Pin Locking Hole [BPBW]
- Not Included
DLA Procurement Analysis 2540-00-134-4979
Management Data 2540-00-134-4979
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 2540-00-134-4979
Freight Information 2540-00-134-4979
2540-00-134-4979 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093880. A Sub NMFC of X. It has a NMFC Description of CATCHES/LATCHES METAL NOI. 2540-00-134-4979 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49120 which rates the freight between FCL and LCL. 2540-00-134-4979 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 2540-00-134-4979 is not classified as a special type of cargo when transported by water. 2540-00-134-4979 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 2540-00-134-4979 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
