2530-01-417-8450

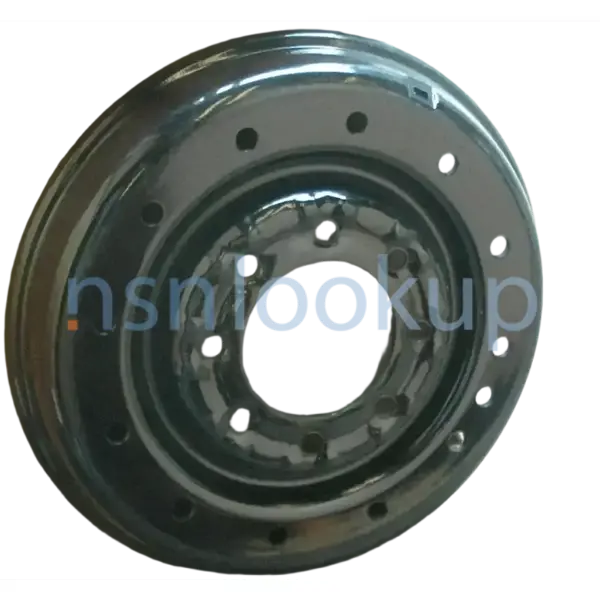

Pneumatic Tire Wheel Rim

2530014178450 014178450 91428EBKBC 91428 12460178 EC12460178B1 X91428 2530PL0777035

A circular metal item designed to mount on a WHEEL, PNEUMATIC TIRE to support and retain the tire. It may be of one piece or it may include a RING, LOCK, AUTOMOTIVE WHEEL; RING, SIDE, AUTOMOTIVE WHEEL; or RING, SIDE AND LOCK, AUTOMOTIVE WHEEL. For items with provisions for mounting on a separate hub capable of turning on a central axis, see WHEEL (as modified). View more Pneumatic Tire Wheel Rim

Managed by United States

NSN Created on 16 Aug 1995

Data Last Changed
November 2023

NATO Update Count
28

NATO Data Quality

STYL Style 15 for 2530-01-417-8450 1/1 — NSN 2530-01-417-8450 (Identification) 1/1

Marketplace 2530-01-417-8450

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

12460178 RIM,WHEEL,PNEUMATIC TIRE 1 EA NS

Subscribe to View Vendor Details...

EC12460178B1 RIM,WHEEL,PNEUMATIC TIRE 2 EA NS

Subscribe to View Vendor Details...

91428 RIM,WHEEL,PNEUMATIC TIRE 4583 EA NS

914-28 RIM,WHEEL,PNEUMATIC TIRE 703 EA NS

Subscribe to View Vendor Details...

12460178 RIM 5 EA NS

EC12460178B1 RIM 183 EA NS

12460178 RIM 1 EA NS

EC12460178B1 RIM 2 EA NS

Subscribe to View Vendor Details...

12460178 RIM,WHEEL,PNEUMATIC TIRE RQST NS

Subscribe to View Vendor Details...

2530-01-417-8450 RIM WHEEL PNEUMATIC 2 EA NS

Subscribe to View Vendor Details...

EC1246017881 RIM,WHEEL,PNEUMATIC TIRE 88 EA NS

Subscribe to View Vendor Details...

12460178 RIM,WHEEL,PNEUMATIC TIRE 254 EA NS

Subscribe to View Vendor Details...

2530-01-417-8450 RIM,WHEEL,PNEUMATIC TIRE 247 EA NS

Subscribe to View Vendor Details...

1549159 RIM,WHEEL,PNEUMATIC TIRE 2 EA NS

014178450.2530 RIM,WHEEL,PNEUMATIC TIRE 124 EA NS

Subscribe to View Vendor Details...

2530-01-417-8450 RIM,WHEEL,PNEUMATIC TIRE 2 EA NS

12460178 RIM,WHEEL,PNEUMATIC TIRE 17 EA NS

91428EBKBC RIM,WHEEL,PNEUMATIC TIRE 118 EA NS

Subscribe to View Vendor Details...

2530-01-417-8450 RIM,WHEEL,PNEUMATIC TIRE 3 EA NS

Updated Every Day

2530-01-417-8450 RQST NE

Updated Every Day

2530-01-417-8450 RQST

Updated Every Day

2530-01-417-8450 RQST NE

Restrictions 2530-01-417-8450

2530-01-417-8450 is a Pneumatic Tire Wheel Rim that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 2530-01-417-8450

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 2530-01-417-8450

US Army (A920)
Effective Date:: 1 Jun 2006
Former MOE Rule:: A181
Supplementary Receivers:: AZCL; AMC 3 AMSC B IMC Z IMCACTY AZ

US Air Force (FGGC)
Effective Date:: 1 Jun 2006
Former MOE Rule:: FGAX; AMC 3 AMSC B IMC Z IMCACTY TG

US Marine Corps (MC40)
Effective Date:: 1 Jun 2006
Former MOE Rule:: MC01; AMC 3 AMSC B IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Jun 2006
Former MOE Rule:: N9CD
Supplementary Collaborators:: GT; AMC 3 AMSC B IMC Z IMCACTY GH

Lithuania (WI01)
Effective Date:: 1 Jun 2004

Slovenia (WL01)
Effective Date:: 1 Feb 2005

Poland (WP01)
Effective Date:: 1 Jun 2011

Spain (YB01)
Effective Date:: 1 Sep 2009

Columbia (YC01)
Effective Date:: 1 Jul 2015

Canada (ZC01)
Effective Date:: 1 Jun 2011

Portugal (ZP01)
Effective Date:: 1 Feb 2013

Denmark (ZS01)
Effective Date:: 1 Jul 2000

Greece (ZU01)
Effective Date:: 1 Jun 2006

Turkey (ZW01)
Effective Date:: 1 Apr 2002

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 May 2010

Approved Sources 2530-01-417-8450

Part Number
Manufacturer
Status
12460178: 19207 - U S Army Tank Automotive Command (Active); Source Control; RNCC 1 RNVC 2 MEDALS DAC A
91428EBKBC: 41885 - Hayes Wheels Intl Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
91428: 1S0R6 - Hayes Lemmerz International Inc. (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
12460178: 34623 - Am General Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
EC12460178B1: 34623 - Am General Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
X91428: 41885 - Hayes Wheels Intl Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
2530PL0777035: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 2530-01-417-8450

Characteristic
Specifications
FIIG: T307-C
End Item Identification [AGAV]: 2320-01-380-8604;Utility Truck
Bolt Circle Diameter [ABKG]: 6.500 Inches Nominal
Tire Diameter For Which Designed [CDLX]: 16.500 Inches
Overall Width [ABMK]: 8.250 Inches Nominal
Special Features [FEAT]: Outer Rim,Topcoat Black;Max.Tire Pressure 50 Psi;Max.Load 3850 Lbs.
Style Designator [STYL]: Curved Base

Weapon Systems (WSDC) 2530-01-417-8450

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 2530-01-417-8450

Last Stock Position:: 608 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 2530-01-417-8450

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Nov 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 2530-01-417-8450

2530-66-151-1190 2530-14-438-8086 2530-27-037-9186 2530-12-195-5927 2530-33-153-9660 2530-14-455-3172 2530-14-555-6878 1630-14-383-6081 2530-14-376-5856 2530-27-037-7934 1630-14-349-1673 2530-15-008-2523 2530-19-002-8681 2530-15-009-8421 2530-27-032-2150 2530-15-178-7679 2530-15-154-4067 2530-14-544-9182

Freight Information 2530-01-417-8450

2530-01-417-8450 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 020020. A Sub NMFC of X. It has a NMFC Description of AUTO WHEEL PARTS ETC. 2530-01-417-8450 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 09200 which rates the freight between FCL and LCL. 2530-01-417-8450 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 885 for ocean manifesting and military sealift. 2530-01-417-8450 is not classified as a special type of cargo when transported by water. 2530-01-417-8450 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 2530-01-417-8450

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 18.0" H x 18.0" W x 4.0" L; --; --; Preservative Coating Only; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: MIL-PRF-16173, Grade 4, corrosion preventive, solvent cutback, cold application, transparent, non-tacky; --; --; --; ASTM-D5118, Type CF, Class Domestic, Double Wall, Corrugated Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --; No Requirement

Contracting Technical Data File (CTDF) 2530-01-417-8450 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
