2530-01-286-3257

Brake Shoe Parts Kit

2530012863257 012863257 A3-3222-S-2021 T-4602-7ABB 12356898 A1-3222-S-1423 5705696 PS9184 5705696-WE KIT9184 T-4819K A1-3222-S-1423X

A collection of items consisting of one or more LINING, FRICTION and brake shoe frame(s) with or without fastening devices such as rivets, bolts, nuts, bonding agents, and the like. For kits with additional items, see PARTS KIT, SHOE BRAKE. For assembled items, see BRAKE SHOE; BRAKE SHOE SET, INTERNALLY ACTUATED. See also LINING SET, FRICTION; BRAKE LINING KIT. View more Brake Shoe Parts Kit

Managed by United States

NSN Created on 30 Sep 1988

Data Last Changed
November 2023

NATO Update Count
22

NATO Data Quality

2530-01-286-3257 PARTS KIT,BRAKE SHOE 2530012863257 012863257 1/1 — 2530-01-286-3257 Photo 1/1

Product Information 2530-01-286-3257

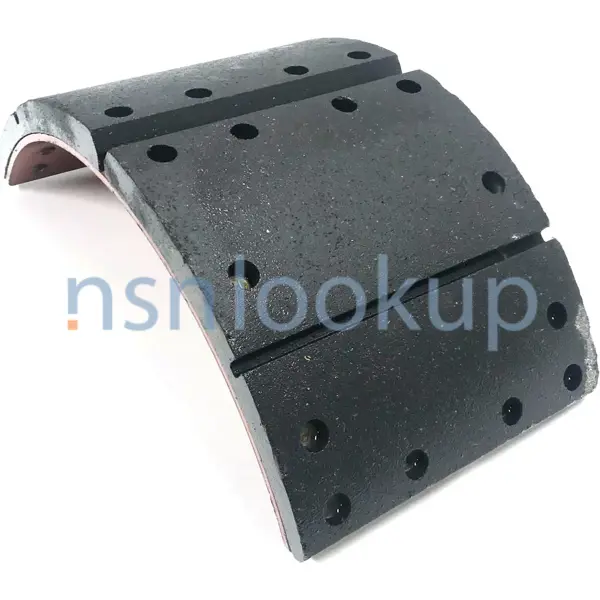

Service Brake Shoe for M939A1 and M939A2 Series 5-Ton Trucks with Wedge Air Brakes

NSN is for a Single Shoe
2 required per wheel, 4 required per axle
Friction Lining Material is Metallic
Drum Diameter is 15 inches
Drum Width is 7 inches

Fits 5 Ton Military Trucks:

M939, M939A1, M939A2, M923, M923A1, M923A2, M925, M925A1, M925A2, M927, M927A1, M927A2, M929, M929A1, M929A2, M930, M930A1, M930A2, M931, M931A1, M931A2
