2530-01-158-8471

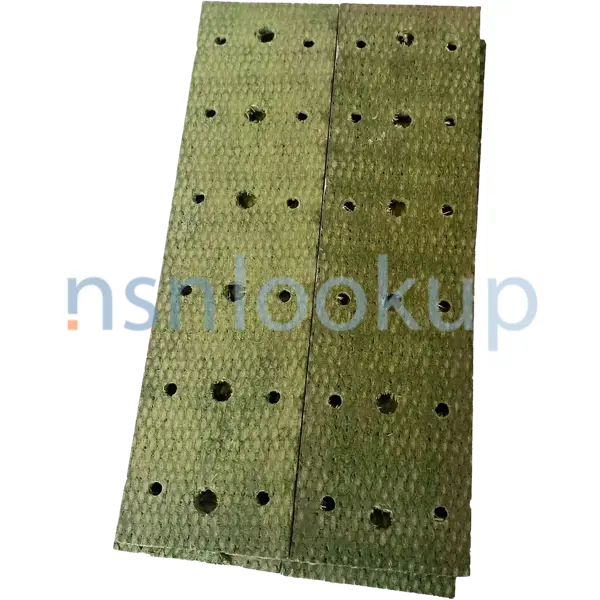

Friction Lining
2530011588471 011588471 8756542-1 M6548-8756542
A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION. View more Friction Lining
January 2023
17
Marketplace 2530-01-158-8471
Request a Quotation from participating marketplace vendors
Related Documents 2530-01-158-8471 1+ Documents (More...)
Restrictions 2530-01-158-8471
2530-01-158-8471 is a Friction Lining that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 2530-01-158-8471
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2530-01-158-8471
- Spain (YB01)
- Effective Date:
- 1 Mar 1999
- Singapore (YJ01)
- Effective Date:
- 1 Dec 1995
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
Approved Sources 2530-01-158-8471
- Part Number
- Manufacturer
- Status
- 8756542-1
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- M6548-8756542
- 92582 - Universal Friction Composites Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 8756542-1
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 2530-01-158-8471
- Characteristic
- Specifications
- FIIG
- Specifications
- A230A0
- Friction Lining Material [AJKJ]
- Lining W/Inserted Brass Wire
- Fabrication Method [AARN]
- Woven
- Strengthening Feature [ADZK]
- Interwoven Wire
- Application Type [AJMJ]
- Oil
- Lining Style [AJKK]
- Segment Plain
- Width [ABGL]
- 2.750 Inches Nominal
- Thickness [ABNM]
- 0.250 Inches Nominal
- Arc Length [AJKW]
- 10.250 Inches Nominal
- Special Features [FEAT]
- 0.375 In. Dia 6 Holes Thru; 0.234 In. Thru 0.406 In. Dia C-Bore 12 Holes
NATO Stock Numbers Related to 2530-01-158-8471
Freight Information 2530-01-158-8471
2530-01-158-8471 has freight characteristics managed by the Netherlands.. 2530-01-158-8471 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
