2530-00-938-8155
Automotive Wheel Side Ring
2530009388155 009388155 6610GX 41856E6 F1024M
A one-piece metal device designed to fit the outer circumference of a wheel or wheel rim. It is held in position by a locking ring or has self-locking features for positioning and retaining a pneumatic tire. It may also be split and/or held by bolts and studs. View more Automotive Wheel Side Ring
May 2023
15
Marketplace 2530-00-938-8155
Request a Quotation from participating marketplace vendors
Related Documents 2530-00-938-8155 2+ Documents (More...)
RING,SIDE,AUTOMOTIVE WHEEL 2 EA NS Request Quotation Updated Every Day 2530-00-938-8155 RQST NE
Updated Every Day 2530-00-938-8155 RQST Updated Every Day 2530-00-938-8155 RQST NE Related Documents
Request Quotation Updated Every Day 2530-01-052-2930 https//www.nsnlookup.com /fsg-25/fsc-2530/us 2530-00-938-8155
Automotive Wheel Side Ring 2530009388155 Quotation Updated Every Day 2530-00-938-8155 RQST NE https
Restrictions 2530-00-938-8155
2530-00-938-8155 is a Automotive Wheel Side Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 2530-00-938-8155
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2530-00-938-8155
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FGGC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FGAX
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Greece (ZU01)
- Effective Date:
- 1 Jun 2006
Approved Sources 2530-00-938-8155
- Part Number
- Manufacturer
- Status
- F1024M
- Manufacturer
- 1DX04 - Rim & Wheel Service Inc Of Columbus (Active)
- Primary Buy
- Primary Buy
- F1024M
- 73842 - Goodyear Tire And Rubber Co The (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2530009388155
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 6610GX
- 45152 - Oshkosh Corp (Active)
- Advisory Reference
- Advisory Reference
- 41856E6
- 09386 - Alliedsignal Inc Alliedsignal (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 2530-00-938-8155
- Characteristic
- Specifications
- FIIG
- Specifications
- T307-B

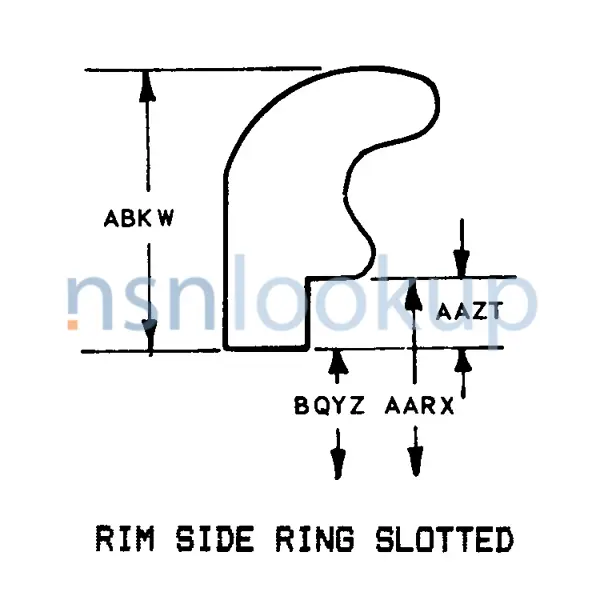

- Cross-Sectional Shape Style [AAGR]
- Rim Side Ring Slotted
- Inside Diameter [AARX]
- 25.851 Inches Nominal
- Slot Depth [AAZT]
- 0.900 Inches Nominal
- Overall Height [ABKW]
- 1.984 Inches Nominal
- Inside Circumference [BQYZ]
- 75.558 Inches Nominal
- Design Type [APGF]
- Endless Snap-On
- Size Designator [AJXE]
- 24X10
- Leverage Slot [CDLT]
- Not Included
DLA Procurement Analysis 2530-00-938-8155
Management Data 2530-00-938-8155
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- NU
- Tactical Vehicles
Heavy Equipment Transporter (HET), M746, M747, M911
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 2530-00-938-8155
Freight Information 2530-00-938-8155
2530-00-938-8155 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 020020. A Sub NMFC of X. It has a NMFC Description of AUTO WHEEL PARTS ETC. 2530-00-938-8155 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 09200 which rates the freight between FCL and LCL. 2530-00-938-8155 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2530-00-938-8155 is not classified as a special type of cargo when transported by water. 2530-00-938-8155 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2530-00-938-8155
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 26.0" H x 26.0" W x 2.0" L
- --
- --
- Physical Protection
- Any Suitable Process
- 26.0" H x 26.0" W x 2.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 2530-00-938-8155 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
