2530-00-882-4784

Pneumatic Tire Wheel Assembly

2530008824784 008824784 A-A-59494/3 61222 AA59494/03-001 C4079 MS24324-1 A-A-59494 A-A-59494-0C0 R8-3-75 R8375

INC: 80956

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
37

NATO Data Quality

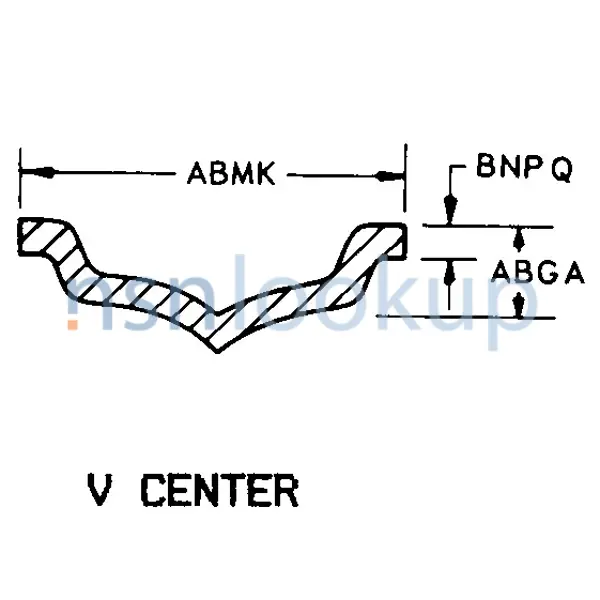

AJUP Style 16 for 2530-00-882-4784 1/1 — NSN 2530-00-882-4784 (Identification) 1/1

Marketplace 2530-00-882-4784

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

A-A-59494-0C0 WHEEL ASSEMBLY,PNEUMATIC TIRE 20 EA NS

A-A-59440/3-011 WHEEL ASSEMBLY,PNEUMATIC TIRE 5 EA NS

Subscribe to View Vendor Details...

2530-00-882-4784 WHEEL ASSEMBLY,PNEUMATIC TIRE 2 EA NS

Subscribe to View Vendor Details...

008824784.2530 WHEEL ASSEMBLY,PNEUMATIC TIRE 4 EA NS

Updated Every 15 Minutes

2530-00-882-4784 BUY NE

Updated Every Day

2530-00-882-4784 RQST NE

Updated Every Day

2530-00-882-4784 RQST

Updated Every Day

2530-00-882-4784 RQST NE

Restrictions 2530-00-882-4784

2530-00-882-4784 is a Pneumatic Tire Wheel Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

End Users 2530-00-882-4784

US Army (A920)
Effective Date:: 1 Jun 2006
Former MOE Rule:: A181
Supplementary Receivers:: BDCT; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FGGC)
Effective Date:: 1 Jun 2006
Former MOE Rule:: FGAX; AMC 1 AMSC G IMC Z IMCACTY TG

US Navy (N9BC)
Effective Date:: 1 Jun 2006
Former MOE Rule:: N9CD
Supplementary Collaborators:: GTKE; AMC 1 AMSC G IMC Z IMCACTY GH

Poland (WP01)
Effective Date:: 1 Nov 2006

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Jul 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Feb 1996

Portugal (ZP01)
Effective Date:: 1 Jul 1996

Italy (ZR01)
Effective Date:: 1 Dec 2007

Greece (ZU01)
Effective Date:: 1 Apr 2008

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 2530-00-882-4784

Part Number
Manufacturer
Status
AA59494/03-001: 58536 - Federal Commercial Item Description (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
A-A-59494/3: 58536 - Federal Commercial Item Description (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
C4079: 96787 - Stewart Avionics Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MS24324-1: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
A-A-59494: 58536 - Federal Commercial Item Description (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
A-A-59494-0C0: 58536 - Federal Commercial Item Description (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
R8-3-75: 08999 - Savoy Mfg Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
R8375: 08999 - Savoy Mfg Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
61222: 03990 - Ingersoll-Rand Company (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 2530-00-882-4784

Characteristic
Specifications
FIIG: A613S0
Design Form [ARJD]: Disk
Design Type [APGF]: Divided Wheel
Disk Type [BPLM]: Double
Groove Depth [ABGA]: 0.731 Inches Minimum And 0.867 Inches Maximum
Hole Location [BFYT]: Located 17/32 In. From Center Of Rim
Hub Characteristic [CFJH]: Demountable
Hub [ASBL]: Not Included
End Item Identification [AGAV]: Grumman A-10 Aircraft
Mounting Bolt Circle Diameter [AFFL]: 4.500 Inches Nominal
Mounting Hole Diameter [ABTB]: 0.406 Inches Nominal
Mounting Hole Quantity [ABTJ]: 5
Mounting Type For Which Designed [BCNX]: Single Tire
Lightening Hole [BXSJ]: Not Included
Pilot Hole Diameter [AHEG]: 3.375 Inches Nominal
Rim Style [AJUP]: V Center
Overall Width [ABMK]: 4.630 Inches Nominal
Special Features [FEAT]: Metal Thickness 0.125 In. If Aluminum Alloy,Or 0.1196 In. If Steel
Tire Rim Nominal Diameter [CFHQ]: 8.000 Inches
Tire [CFHR]: Not Included
Valve Hole Shape [CDMC]: Round

Weapon Systems (WSDC) 2530-00-882-4784

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 2530-00-882-4784

Last Stock Position:: 131 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 2530-00-882-4784

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Department of the Navy (DN); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Feb 2020: Department of the Air Force (DF); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 2530-00-882-4784

Freight Information 2530-00-882-4784

2530-00-882-4784 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 197592. A Sub NMFC of Z. It has a NMFC Description of WHEELS NOI. 2530-00-882-4784 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 96684 which rates the freight between FCL and LCL. 2530-00-882-4784 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 885 for ocean manifesting and military sealift. 2530-00-882-4784 is not classified as a special type of cargo when transported by water. 2530-00-882-4784 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 2530-00-882-4784

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Preservative Coating Only; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: MIL-PRF-16173, Grade 1, Corrosion Preventive, Solvent Cutback, Cold Application, Hard Film; --; --; --; ASTM - D5118, Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: Any Suitable Fiber Box

Contracting Technical Data File (CTDF) 2530-00-882-4784 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
