2530-00-852-4135
Hydraulic Brake Master Cylinder Push Rod
2530008524135 008524135 10886090
An item in the form of a rod with one end designed to mate with the socket of a PISTON, HYDRAULIC BRAKE, MASTER CYLINDER, the other end designed to connect with various forms of rod connectors. View more Hydraulic Brake Master Cylinder Push Rod
November 2023
37
Marketplace 2530-00-852-4135
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 2530-00-852-4135 1+ Documents (More...)
United States (US) 4. 2530-00-852-4135 Marketplace Restrictions Approved Sources Datasheet Management
Quotation Updated Every Day 2530-00-852-4135 RQST NE Updated Every Day 2530-00-852-4135 RQST Updated
Restrictions 2530-00-852-4135
2530-00-852-4135 is a Hydraulic Brake Master Cylinder Push Rod that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 2530-00-852-4135
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2530-00-852-4135
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Sep 2011
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 2003
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Feb 2002
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 2530-00-852-4135
- Part Number
- Manufacturer
- Status
- 10886090
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 2530008524135
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2530008524135
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 10886090
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 2530-00-852-4135
- Characteristic
- Specifications
- FIIG
- Specifications
- T129-M

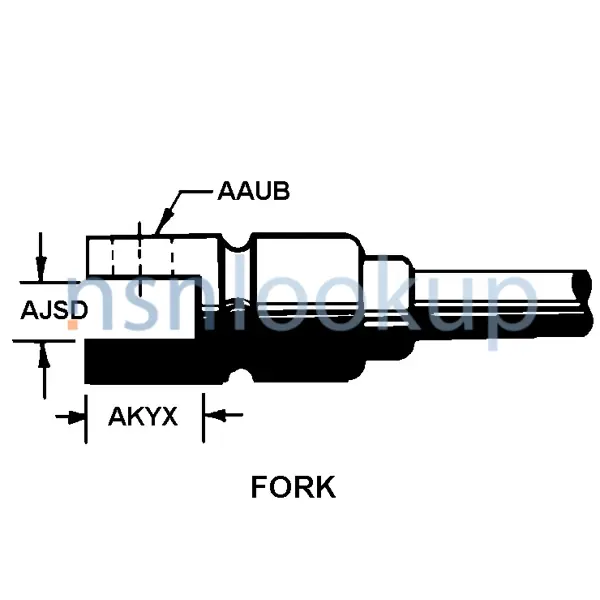

- Fork Span Width [AJSD]
- 0.312 Inches Nominal
- Fork Depth [AKYX]
- 0.937 Inches Nominal
- Hole Diameter [AAUB]
- 0.375 Inches Minimum And 0.380 Inches Maximum
- Material [MATT]
- Steel
- Fsc Application Data [ZZZV]
- Brake System,Carrier Personnel,Armoured
- Link Rod Connecting End Style [ADBY]
- Fork
- Piston Socket End Style [ADBZ]
- Sperical
- Rod Diameter [AZBJ]
- 0.375 Inches Nominal
- Overall Length [ABHP]
- 3.155 Inches Nominal
Weapon Systems (WSDC) 2530-00-852-4135
DLA Procurement Analysis 2530-00-852-4135
- Last Stock Position:
- 40 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2530-00-852-4135
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 2530-00-852-4135
Freight Information 2530-00-852-4135
2530-00-852-4135 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 094140. A Sub NMFC of X. It has a NMFC Description of CLEVISES IRON/STEEL. 2530-00-852-4135 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. 2530-00-852-4135 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49240 which rates the freight between FCL and LCL. 2530-00-852-4135 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 2530-00-852-4135 is not classified as a special type of cargo when transported by water. 2530-00-852-4135 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2530-00-852-4135
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x 4.0" W x 2.0" L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.0" H x 4.0" W x 2.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 2530-00-852-4135 2 Records
Contracting Technical Data File (CTDF) 2530-00-852-4135 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
