2530-00-799-0022

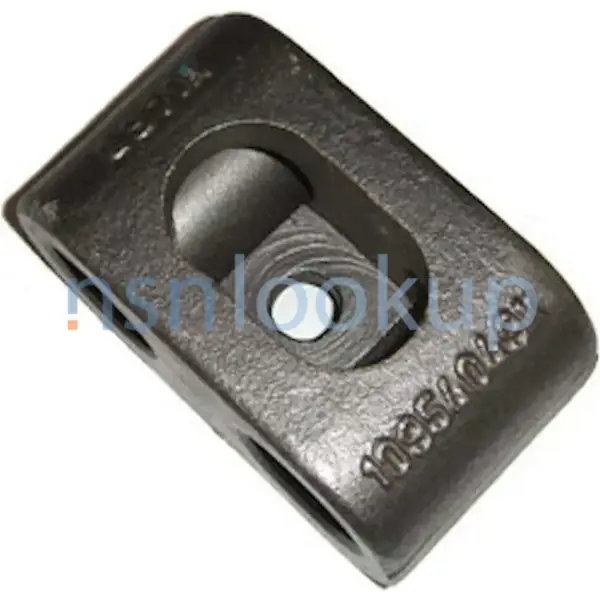

Connecting Track Shoe Link
2530007990022 007990022 10954049
An item of various cross sectional shapes which may be of solid or hollow construction. It is designed for the purpose of connecting two or more track shoes. View more Connecting Track Shoe Link
March 2025
38
Marketplace 2530-00-799-0022
Request a Quotation from participating marketplace vendors
Related Documents 2530-00-799-0022 1+ Documents (More...)
. 10954049 LINK,TRACK SHOE,CONNECTING RQST NS Request Quotation Subscribe to View Vendor Details... 10954049
/us 2530-00-799-0022 Connecting Track Shoe Link 2530007990022 10954049 An item of various cross sectional
Restrictions 2530-00-799-0022
2530-00-799-0022 is a Connecting Track Shoe Link that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. The Demilitarization Program Office (DDPO) will provide instructions for demilitarization of this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 2530-00-799-0022
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2530-00-799-0022
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC40)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC01
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2004
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Nov 2004
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Apr 2002
Approved Sources 2530-00-799-0022
- Part Number
- Manufacturer
- Status
- 10954049
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 10954049
- G0036 - Genikh Michanourgiki S.A. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 2530007990022
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 10954049
- G1508 - G.M.C. Abee Texnikwn Ergwn (Active)
- Related NATO Reproduction
- Related NATO Reproduction
Datasheet 2530-00-799-0022
- Characteristic
- Specifications
- FIIG
- Specifications
- A521U0
- End Item Identification [AGAV]
- Truck,Van M109 Series
- Material [MATT]
- Steel
- Link Distance Between Hole Centers [AWWX]
- 2.030 Inches Minimum And 2.040 Inches Maximum
- Overall Length [ABHP]
- 3.812 Inches Nominal
- Special Features [FEAT]
- Forging 4140, 8645 Or 8745 Grade D Per Spec Mil-S-46172; W/Two Holes 1.129 In. Plus Or Minus 0.003 In. Dia; H 2.188 In.
DLA Procurement Analysis 2530-00-799-0022
Management Data 2530-00-799-0022
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 2530-00-799-0022
Freight Information 2530-00-799-0022
2530-00-799-0022 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019097. A Sub NMFC of Z. It has a NMFC Description of AUTO PARTS BODY. 2530-00-799-0022 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 08910 which rates the freight between FCL and LCL. 2530-00-799-0022 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2530-00-799-0022 is not classified as a special type of cargo when transported by water. 2530-00-799-0022 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2530-00-799-0022
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.5" H x 2.5" W x 2.5" L
- --
- --
- Preservative Coating Only
- Any Suitable Process
- 4.5" H x 2.5" W x 2.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 4, corrosion preventive, solvent cutback, cold application, transparent, non-tacky
- --
- --
- --
- ASTM - D5118, Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 2530-00-799-0022 2 Records
Contracting Technical Data File (CTDF) 2530-00-799-0022 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
