2530-00-759-2934
Friction Lining
2530007592934 007592934 G4 A6356
A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION. View more Friction Lining
May 2023
4
Marketplace 2530-00-759-2934
Request a Quotation from participating marketplace vendors
Related Documents 2530-00-759-2934 5+ Documents (More...)
G4 LINING,FRICTION 1 EA NS Request Quotation FedMall Updated Every 15 Minutes 2530-00-759-2934 BUY NE
FedMall Updated Every Day 2530-00-759-2934 RQST NE Updated Every Day 2530-00-759-2934 RQST Updated Every
Friction Lining 2530007592934 007592934,G4 for $1 a day Upgrade your Account Upgrade 2530-00-759
-2934Friction Lining2530007592934 007592934 G4 A6356 your web browser . 6515-99-210-4148Chalazion Clamp6515992104148
your Account Upgrade 6660-00-751-9864Ink Assembly Reservoir6660007519864 007519864 306356-00-7 11406 A6356
Friction Lining 2530007592934 007592934,G4 for $1 a day Upgrade your Account Upgrade 2530-00-759
fsg-40/fsc-4010/ca 4010-21-876-1723 Wire Rope 4010218761723218761723,G4 15-150-5843 Testina 'G4' 6220151505843
fsg-40/fsc-4010/ca 4010-21-876-1693 Wire Rope 4010218761693218761693,G4 15-150-5843 Testina 'G4' 6220151505843
Restrictions 2530-00-759-2934
2530-00-759-2934 is a Friction Lining that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 2530-00-759-2934
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2530-00-759-2934
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 2530-00-759-2934
- Part Number
- Manufacturer
- Status
- G4
- Manufacturer
- 30177 - Iwc Llc (Active)
- Primary Buy
- Primary Buy
- A6356
- 30177 - Iwc Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 2530-00-759-2934
- Characteristic
- Specifications
- FIIG
- Specifications
- A230A0
- Application Type [AJMJ]
- Dry
- Attachment Method [CTPJ]
- Riveted
- Circular Pattern Hole Type And Quantity [CTCX]
- 4 Counterbored Inner Securing Circle
- Circular Pattern Hole Type And Quantity [CTCX]
- 4 Counterbored Outer Securing Circle
- Fabrication Method [AARN]
- Molded
- Features Provided [CBBL]
- Rigid Friction Lining

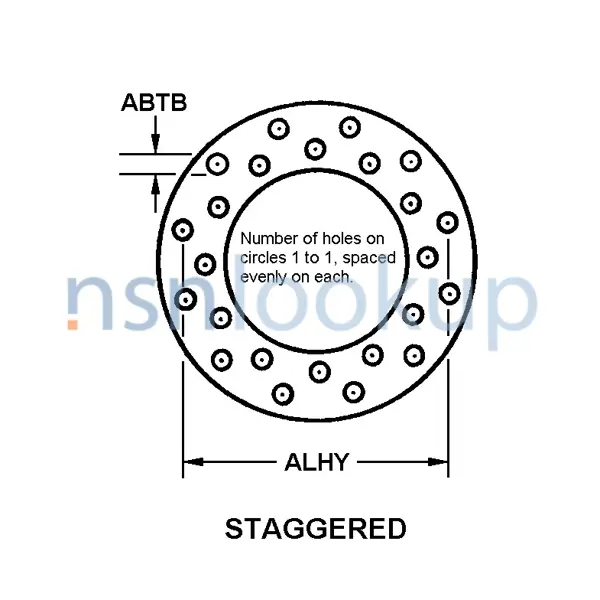

- Hole Arrangement Style [ABRB]
- Staggered
- Minor Diameter [AGJR]
- 4.390 Inches Nominal
- Mounting Hole Circle Diameter [ALHY]
- 5.625 Inches Nominal And 5.125 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.125 Inches Nominal
- Lining Style [AJKK]
- Clutch Disk
- Major Diameter [AAZR]
- 6.500 Inches Nominal
- Strengthening Feature [ADZK]
- Internally Molded-In Reinforcement
- Supplementary Features [SUPP]
- 3This Item Has Been Reviewed For Asbestos Material. The Current Approved Source, Cage 30177, Has Indicated Their Part Number Contained Asbestos Prior To1984. They Continue To Manufacture The Same Part Number Without Asbestos Material After 1984
- Surface Condition And Location [CQHT]
- One Side Ground
- Thickness [ABNM]
- 0.125 Inches Nominal
DLA Procurement Analysis 2530-00-759-2934
Management Data 2530-00-759-2934
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- R
- Refer To 1 Previously Contain
- 1 PREVIOUSLY CONTAIN
- R
- Defense Logistics Agency (DS)
- I
- R
- Refer To 2 Ed Asbestos, See S
- 2 ED ASBESTOS, SEE S
- R
- Defense Logistics Agency (DS)
- I
- R
- Refer To 3 Upplementary Featu
- 3 UPPLEMENTARY FEATU
- R
- Defense Logistics Agency (DS)
- I
- R
- Refer To 4 Res
- 4 RES
- R
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 2530-00-759-2934
Freight Information 2530-00-759-2934
2530-00-759-2934 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 014640. A Sub NMFC of X. It has a NMFC Description of BRAKE BLOCKS / BRAKE LININGS. 2530-00-759-2934 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 06410 which rates the freight between FCL and LCL. 2530-00-759-2934 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 585 for ocean manifesting and military sealift. 2530-00-759-2934 is not classified as a special type of cargo when transported by water. 2530-00-759-2934 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2530-00-759-2934
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 5lb to 7.5lb, all dimensions less than 24"
- Above 110G
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 2530-00-759-2934 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
