2530-00-701-3976

Solid Rubber Tire Wheel

2530007013976 007013976 TL2530-0007 7013976 28036 5L32748

A wheel with an integral or removable rim having or designed to mount a solid rubber tire. View more Solid Rubber Tire Wheel

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
May 2023

NATO Update Count
41

NATO Data Quality

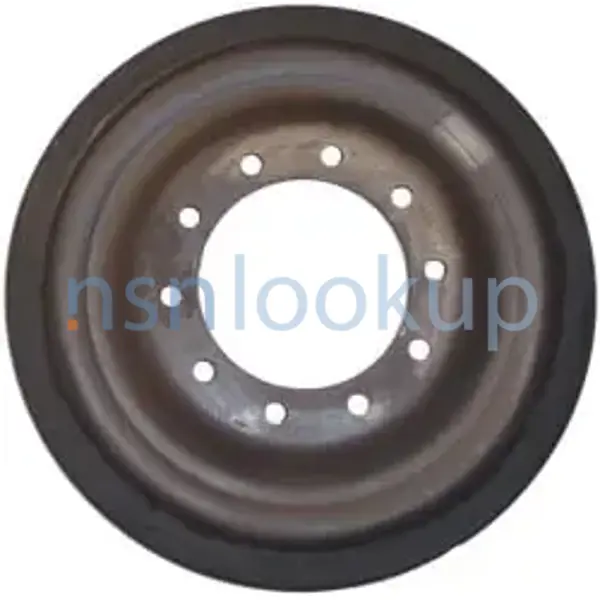

2530-00-701-3976 WHEEL,SOLID RUBBER TIRE 2530007013976 007013976 1/1 — NSN 2530-00-701-3976 (Generic Image) 1/1

Marketplace 2530-00-701-3976

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

2530-00-701-3976 WHEEL,SOLID RUBBER TIRE 333 EA NS

28036 WHEEL,SOLID RUBBER TIRE 101 EA NS

Subscribe to View Vendor Details...

2530-00-701-3976 WHEEL,SOLID RUBBER TIRE 1 EA NS

Subscribe to View Vendor Details...

7013976 WHEEL,SOLID RUBBER TIRE 60 EA NS

2803-6 WHEEL,SOLID RUBBER TIRE 3 EA NS

7013976 WHEEL,SOLID RUBBER TIRE 60 EA NS

Subscribe to View Vendor Details...

7013976 WHEEL,SOLID RUBBER TIRE 25 EA NS

Updated Every Day

2530-00-701-3976 RQST NE

Related Documents 2530-00-701-3976 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-25/fsc-2530/us

2530-00-701-3976 Solid Rubber Tire Wheel 2530007013976,

TL2530-0007 7013976 28036 5L32748 A wheel with an integral or removable rim having or designed to mount
United States (US) 4. 2530-00-701-3976 Marketplace Restrictions Approved Sources Datasheet Management
WHEEL,SOLID RUBBER TIRE 333 EA NS Request Quotation 28036 WHEEL,SOLID RUBBER TIRE 101 EA NS Request

https//www.nsnlookup.com
/fsg-76/fsc-7690/nz

7690-98-200-3221 Identification Marker 7690982003221 982003221

JavaScript in your web browser . 7690-98-200-3221Identification Marker7690982003221 982003221 AFTS 28036
JavaScript in your web browser . 7690-98-200-3221Identification Marker7690982003221 982003221AFTS 28036
98-204-8594 Cap And Holder Asse 1305982048594 982048594 200-3221 Part NumberManufacturerStatusAFTS 28036

https//www.nsnlookup.com
/fsg-13/fsc-1305/uk

1305-99-701-8285 Bandoleer 1305997018285 997018285

enable JavaScript in your web browser . 1305-99-701-8285Bandoleer1305997018285 997018285 UK/SC/5409-28036
28036 Managed by United Kingdom NSN Created on 28 Sep 1994 Data Last Changed January 2023 NATO Update
E3816/28036 A component which determines the mode of operation of one or more power supplies. -00-920

https//www.nsnlookup.com
/fsg-61/fsc-6130/uk

6130-99-781-9692 Power Supply Control 6130997819692 997819692

JavaScript in your web browser . 6130-99-781-9692Power Supply Control6130997819692 997819692 3816/28036
E3816/28036 A component which determines the mode of operation of one or more power supplies.
Managed by United Kingdom NSN Created on 28 Sep 1994 Data Last Changed January 2023 NATO Update E3816/28036

https//www.nsnlookup.com
/fsg-59/fsc-5905/ca

5905-21-884-9199 Fixed Resistor 5905218849199 218849199

to enable JavaScript in your web browser . 5905-21-884-9199Fixed Resistor5905218849199 218849199 L-28036
tr 5330-27-023-1731 Gasket 5330270231731 270231731,28036 Tape Transport7025123902783 1239027837010-28036
to enable JavaScript in your web browser . 5905-21-884-9199Fixed Resistor5905218849199 218849199L-28036

Restrictions 2530-00-701-3976

2530-00-701-3976 is a Solid Rubber Tire Wheel Demilitarization of this item has been confirmed and is not currently subject to changes. The Demilitarization Program Office (DDPO) will provide instructions for demilitarization of this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 2530-00-701-3976

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 2530-00-701-3976

US Army (A202)
Effective Date:: 1 May 1998
Former MOE Rule:: A203; AMC 1 AMSC G AMSC A IMC E DSOR AI

US Marine Corps (MA5T)
Effective Date:: 1 May 1998
Former MOE Rule:: MC02; AMC 1 AMSC G AMSC 5 IMC E DSOR AI

Austria (WB01)
Effective Date:: 1 Feb 2005

Brazil (YA01)
Effective Date:: 1 Mar 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Jul 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Nov 2008

Belgium (ZB01)
Effective Date:: 1 Jan 1999

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Jul 1995

Turkey (ZW01)
Effective Date:: 1 Nov 2005

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 2530-00-701-3976

Part Number
Manufacturer
Status
7013976: 19207 - U S Army Tank Automotive Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
TL2530-0007: D9478 - Baainbw Technische Lieferbedingungen (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
7013976: B1478 - Varec Nv (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
28036: 33116 - Kelsey-Hayes Co Wheel Drum And Brake (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5L32748: 74188 - The Procter & Gamble Distributing (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
2530007013976: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
2530007013976: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 2530-00-701-3976

Characteristic
Specifications
FIIG: T307-T
Design Type [APGF]: Stamped Disk
Hub Cap Mounting Feature [CFHW]: Not Included
Hub Characteristic [CFJH]: Demountable
Hub [ASBL]: Not Included
Material [MATT]: Steel
Mounting Bolt Circle Diameter [AFFL]: 11.250 Inches Nominal
Mounting Hole Quantity [ABTJ]: 10
Mounting Hole Diameter [ABTB]: 0.928 Inches Minimum And 0.948 Inches Maximum
Offset Distance From Rim Centerline To Outside Of Wheel Mounting [CHSS]: 4.484 Inches Nominal
Integral Rim Type [CFJM]: Flat Base
Rim Characteristic [CFJK]: Integral
Rim [ATGL]: Included
Pilot Hole Diameter [AHEG]: 9.005 Inches Minimum And 9.010 Inches Maximum
Tire Arrangement Characteristic [CHSQ]: Single
Tire Characteristic [CHSP]: Integral
Tire Size For Which Designed [CHSR]: 26 By 6
Tire Type [ALRE]: Solid, Flat Tread
Tire [CFHR]: Included
Tread Pattern [AAGC]: Smooth Tread

Management Data 2530-00-701-3976

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Nov 2022: US Marine Corps (DM); EA; Subscribe; 1
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Department of the Army (DA); EA; Subscribe; 1
Nov 2020: Department of the Army (DA); EA; Subscribe; 1
Oct 2020: US Marine Corps (DM); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Army (DA): L; R; Refer To Net Price 698.00; NET PRICE 698.00

Army

Materiel Category and Inventory Manager:

K: Tactical and Support Vehicles, Combat and Automotive Materiel

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

1: Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.

Weapons System / End Item / Homogeneous Group:

LN: Other Weapons Categories
Track and Road Wheels

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Marine Corps

Stores Account:

2: Appropriation Stores Account Secondary Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

22

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 2530-00-701-3976

2530-14-406-0163 2530-14-393-3818 2530-33-136-3654 2530-17-041-5124 2530-13-121-6122 2530-14-309-2066 2530-27-026-4304 2530-12-384-4014 2530-33-136-3539 2530-27-013-0910 2530-14-408-0581 2530-27-026-4334 2530-22-609-2828 2530-27-024-4098 2530-25-124-0308 2530-22-126-6160 2530-27-026-3017 2530-17-104-2421

Freight Information 2530-00-701-3976

2530-00-701-3976 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 197592. A Sub NMFC of Z. It has a NMFC Description of WHEELS NOI. 2530-00-701-3976 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 96684 which rates the freight between FCL and LCL. 2530-00-701-3976 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2530-00-701-3976 is not classified as a special type of cargo when transported by water. 2530-00-701-3976 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 2530-00-701-3976

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); Packaging Data does not meet current MIL-STD-2073-1E

Storage Environment: Unheated General Purpose

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: 26.0" H x 26.0" W x 7.8" L; --; --; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 26.0" H x 26.0" W x 7.8" L; --; --; --; Special Requirements

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: Special Requirement; Special Requirements – see Specific Instructions or Drawings provided; Special Requirements. See Specific Instructions or Drawings Provided; Special Requirements. See Specific Instructions or Drawings Provided; Special requirement – See specific instructions or drawings provided; --

Intermediate Pack Level

Quantity of Unit Packs
Container: --
