2530-00-654-8131

Solid Rubber Tire Wheel

2530006548131 006548131 E7036 31W404 6548131 RB6602-2 380008 N2498

A wheel with an integral or removable rim having or designed to mount a solid rubber tire. View more Solid Rubber Tire Wheel

2530-00-654-8131 WHEEL,SOLID RUBBER TIRE 2530006548131 006548131

Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
January 2023
NATO Update Count
21
NATO Data Quality
2530-00-654-8131 WHEEL,SOLID RUBBER TIRE 2530006548131 006548131 1/1

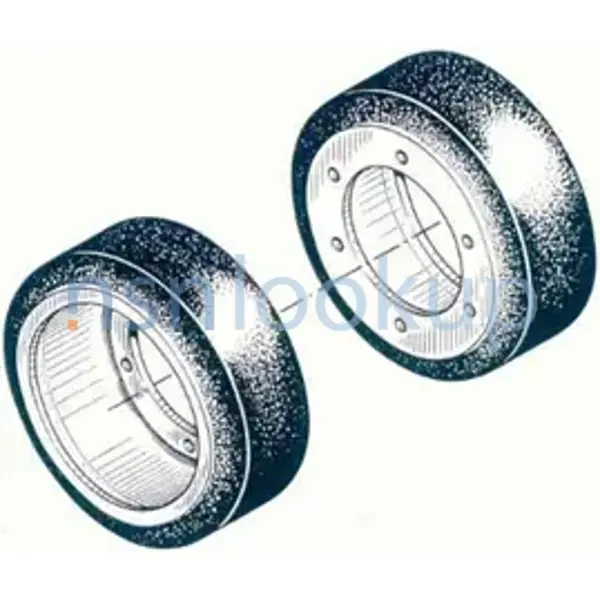

NSN 2530-00-654-8131 (Generic Image) 1/1

2530-00-654-8131 Stock and Availability Marketplace 2530-00-654-8131

2530-00-654-8131 Related Documents Related Documents 2530-00-654-8131 5+ Documents (More...)

United States https//www.nsnlookup.com /cage Bridgestone Americas Tire (CAGE Code 22337) 1963 2530-00-654-8131
N2498 Torex Retail As is a Succeeded(Merged) Manufacturer with the Cage Code N2498.
Wahidullah Ahmadzai Ltd Frequently Asked Questions (FAQ) for CAGE N2498 What is CAGE Code N2498?
Retail As located at Brynsveien 5, 87 Bryn, Oslo, 0667, Norway.Who is CAGE Code N2498?
Cage Code E7036.
Wahidullah Ahmadzai Ltd Frequently Asked Questions (FAQ) for CAGE E7036 What is CAGE Code E7036?
Donald Joseph located at 12 Victoria St, Levin, 5500, New Zealand.Who is CAGE Code E7036?
5961-14-314-7997 5961143147997 143147997 is an active semiconductor device with three or more electrodes. may or may not include mounting hardware and/or heatsink. excludes semiconductor device, diode and semiconductor device, thyristor. for solid state devices which are responsive to visible or infrared radiant energy, see semiconductor device, photo.
206-3202 2+ Documents ( More... ) https//www.nsnlookup.com /cage Hutchins Donald Joseph (CAGE Code E7036
) Supply Items Approved for CAGE E7036 Page 1 of 1 6110-98-206-3202 Power Distribution Panel A2782-15RNCC
-206-3202 New Zealand (ZE) Approved Sources 6110-98-206-3202 Part NumberManufacturerStatusA2782-15 E7036

2530-00-654-8131 Demil Restrictions 2530-00-654-8131

DEMIL: E | DEMILI: 1 | CRITICALITY: X | HMIC: P | PMIC: U | EDC: | ADPEC:

2530-00-654-8131 is a Solid Rubber Tire Wheel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. The Demilitarization Program Office (DDPO) will provide instructions for demilitarization of this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.

2530-00-654-8131 HTS and ScheduleB Import and Export 2530-00-654-8131

2530-00-654-8131 End Users End Users 2530-00-654-8131

Austria (WB01)
Effective Date:
1 Feb 2005
Greece (ZU01)
Effective Date:
1 Jul 1995

2530-00-654-8131 Manufacturers Approved Sources 2530-00-654-8131

2530-00-654-8131 Technical Data Datasheet 2530-00-654-8131

Characteristic
Specifications
FIIG
T307-T
Bearings [AWJQ]
Not Included
Design Type [APGF]
Solid Cast Disk
Hub Cap Mounting Feature [CFHW]
Not Included
Hub Characteristic [CFJH]
Demountable
Hub [ASBL]
Not Included
Material [MATT]
Steel
Mounting Bolt Circle Diameter [AFFL]
7.500 Inches Nominal
Mounting Hole Diameter [ABTB]
0.531 Inches Nominal
Mounting Hole Quantity [ABTJ]
6
Offset Distance From Rim Centerline To Outside Of Wheel Mounting [CHSS]
2.031 Inches Minimum And 2.062 Inches Maximum
Fsc Application Data [ZZZV]
Bogie Roller Track-Half Track Vehicles
Rim Type For Which Designed [CHSN]
Bolted-On
Rim [ATGL]
Not Included
Size Designator [AJXE]
12 By 4-1/8
Pilot Hole Diameter [AHEG]
6.502 Inches Minimum And 6.510 Inches Maximum
Tire Characteristic [CHSP]
Integral
Tire Arrangement Characteristic [CHSQ]
Single
Tire Type [ALRE]
Solid, Flat Tread
Tire [CFHR]
Included
Tread Pattern [AAGC]
Smooth Tread
Wheel Diameter [BCDX]
12.000 Inches Nominal
Wheel Width At Outside Diameter [CFJB]
4.094 Inches Minimum And 4.125 Inches Maximum

2530-00-654-8131 Related Items NATO Stock Numbers Related to 2530-00-654-8131

2530-00-654-8131 Freight Data Freight Information 2530-00-654-8131

2530-00-654-8131 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 197592. A Sub NMFC of Z. It has a NMFC Description of WHEELS NOI. 2530-00-654-8131 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2530-00-654-8131 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 96684 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2530-00-654-8131 is not classified as a special type of cargo when transported by water. 2530-00-654-8131 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
