2530-00-567-2673
Hydraulic Brake Master Cylinder Push Rod
2530005672673 005672673 5450076 FC5280
An item in the form of a rod with one end designed to mate with the socket of a PISTON, HYDRAULIC BRAKE, MASTER CYLINDER, the other end designed to connect with various forms of rod connectors. View more Hydraulic Brake Master Cylinder Push Rod
January 2023
13
Marketplace 2530-00-567-2673
Request a Quotation from participating marketplace vendors
Related Documents 2530-00-567-2673 3+ Documents (More...)
RQST NE Updated Every Day 2530-00-567-2673 RQST Updated Every Day 2530-00-567-2673 RQST NE Related Documents
2530-00-567-2673 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-25/fsc-2530/us 2530-00-567-2673
59/fsc-5996/us 5996-01-009-8855 Radio Frequency Amplifier 5996010098855 AM/6384/AARC-153792-6422-005672673
https//www.nsnlookup.com /fsg-25/fsc-2530/us 2530-00-567-2673 Hydraulic Brake Master Cylinder Push Rod
Restrictions 2530-00-567-2673
2530-00-567-2673 is a Hydraulic Brake Master Cylinder Push Rod that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 2530-00-567-2673
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2530-00-567-2673
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2530-00-567-2673
- Part Number
- Manufacturer
- Status
- 5450076
- Manufacturer
- 76462 - Delco Moraine Div Of General Motors (Obsolete)
- Original Design
- Original Design
- FC5280
- 63477 - Federal Mogul Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2530-00-567-2673
- Characteristic
- Specifications
- FIIG
- Specifications
- T129-M

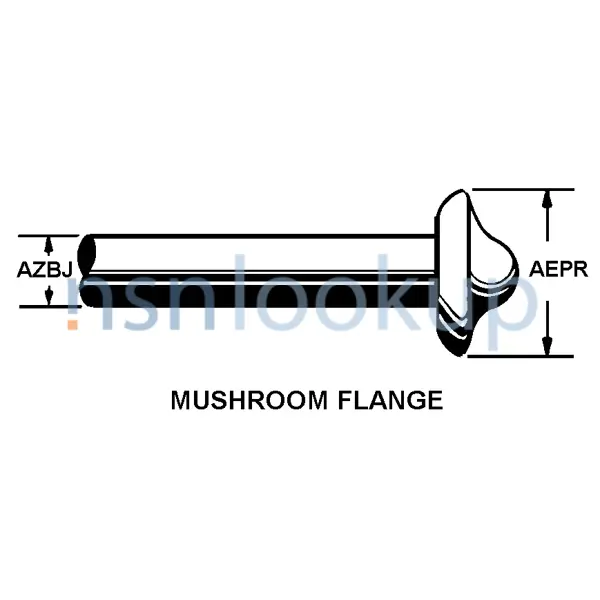

- Flange Outside Diameter [AEPR]
- 0.640 Inches Nominal
- Material [MATT]
- Steel

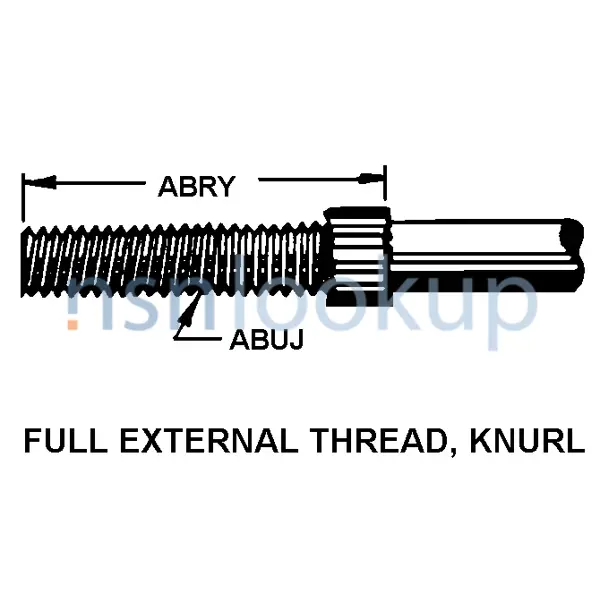

- Length [ABRY]
- 1.600 Inches Nominal
- Rod Diameter [AZBJ]
- 0.345 Inches Nominal
- Overall Length [ABHP]
- 3.750 Inches Nominal
- Thread Size [ABUJ]
- 3/8-24
NATO Stock Numbers Related to 2530-00-567-2673
Freight Information 2530-00-567-2673
2530-00-567-2673 has freight characteristics.. 2530-00-567-2673 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
