2530-00-563-5844

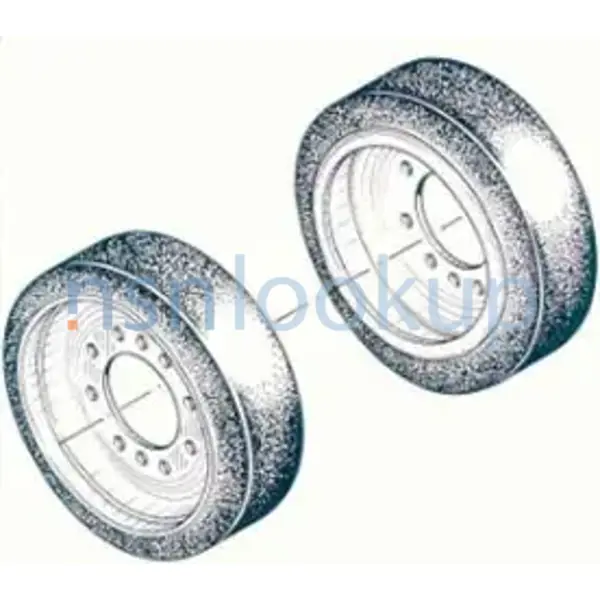

Solid Rubber Tire Wheel
2530005635844 005635844 5635844 L32652
A wheel with an integral or removable rim having or designed to mount a solid rubber tire. View more Solid Rubber Tire Wheel
March 2025
16
Marketplace 2530-00-563-5844
Request a Quotation from participating marketplace vendors
Related Documents 2530-00-563-5844 2+ Documents (More...)
United States (US) 4. 2530-00-563-5844 Marketplace Restrictions Approved Sources Datasheet Management
WHEEL,SOLID RUBBER TIRE 60 EA NS Request Quotation 5635844 WHEEL,SOLID RUBBER TIRE 60 EA NS Request
Restrictions 2530-00-563-5844
2530-00-563-5844 is a Solid Rubber Tire Wheel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. The Demilitarization Program Office (DDPO) will provide instructions for demilitarization of this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 2530-00-563-5844
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2530-00-563-5844
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2530-00-563-5844
- Part Number
- Manufacturer
- Status
- 5635844
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- L32652
- 41885 - Hayes Wheels Intl Inc Akron Opns (Active)
- Secondary Buy
- Secondary Buy
Datasheet 2530-00-563-5844
- Characteristic
- Specifications
- FIIG
- Specifications
- T307-T
- Bearings [AWJQ]
- Not Included
- Design Type [APGF]
- Stamped Disk Type /Spot Weld Construction/
- Hub Characteristic [CFJH]
- Demountable
- Hub Cap Mounting Feature [CFHW]
- Not Included
- Hub [ASBL]
- Not Included
- Material [MATT]
- Steel
- Mounting Bolt Circle Diameter [AFFL]
- 8.745 Inches Minimum And 8.755 Inches Maximum
- Mounting Hole Diameter [ABTB]
- 0.969 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 8
- Offset Distance From Rim Centerline To Outside Of Wheel Mounting [CHSS]
- 1.250 Inches Nominal
- Fsc Application Data [ZZZV]
- Road Wheel For M4 Series Tank
- Integral Rim Type [CFJM]
- Flat Base
- Rim Characteristic [CFJK]
- Integral
- Rim [ATGL]
- Included
- Size Designator [AJXE]
- 20-1/2 By 4.818 By 16-3/4
- Special Features [FEAT]
- 2 Ea 31/32 In. Holes Diametrically Spaced,22-1/2 Deg From Mtg Hole Within Bolt Hole Circle
- Pilot Hole Diameter [AHEG]
- 6.501 Inches Minimum And 6.504 Inches Maximum
- Tread Pattern [AAGC]
- Smooth Tread
- Tire Arrangement Characteristic [CHSQ]
- Single
- Tire Characteristic [CHSP]
- Integral
- Tire [CFHR]
- Included
- Tire Type [ALRE]
- Solid, Flat Tread
Similar Supply Items to 2530-00-563-5844
Freight Information 2530-00-563-5844
2530-00-563-5844 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 197592. A Sub NMFC of Z. It has a NMFC Description of WHEELS NOI. 2530-00-563-5844 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 2530-00-563-5844 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 96684 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2530-00-563-5844 is not classified as a special type of cargo when transported by water. 2530-00-563-5844 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
