2530-00-311-7621
Ball Socket Seat
2530003117621 003117621 1108X50 28DM35 7369965 98897R1 KC5132 9040421
A rigid item, usually circular in shape, having a concave or bevel bearing surface on one end. It is designed to mate with and provide a wear surface for the ball of a ball stud, control rod, arm, or the like. The other end is usually flat, flanged, or offset and is usually designed to mate with a flat surface or spring. Includes metal items having a plastic ball socket insert. See also WASHER, CONCAVE. View more Ball Socket Seat
May 2023
25
Marketplace 2530-00-311-7621
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 2530-00-311-7621 1+ Documents (More...)
RQST NE Updated Every Day 98897R1 RQST NE Updated Every Day 2530-00-311-7621 RQST NE Updated Every Day
2530-00-311-7621 RQST Updated Every Day 2530-00-311-7621 RQST NE Related Documents 2530-00-311-7621
Restrictions 2530-00-311-7621
2530-00-311-7621 is a Ball Socket Seat that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 2530-00-311-7621
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2530-00-311-7621
- US Air Force (FGGC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FGAX
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
Approved Sources 2530-00-311-7621
- Part Number
- Manufacturer
- Status
- 1108X50
- Manufacturer
- 78500 - Meritor Heavy Vehicle Systems, Llc (Active)
- Primary Buy
- Primary Buy
- 28DM35
- 59875 - Eaton Corp (Active)
- Secondary Buy
- Secondary Buy
- 7369965
- 19207 - U S Army Tank Automotive Command (Active)
- Secondary Buy
- Secondary Buy
- 98897R1
- 92679 - Navistar Intl Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- KC5132
- 56442 - Diamond Reo Truck Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 9040421
- 97907 - Terex Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete

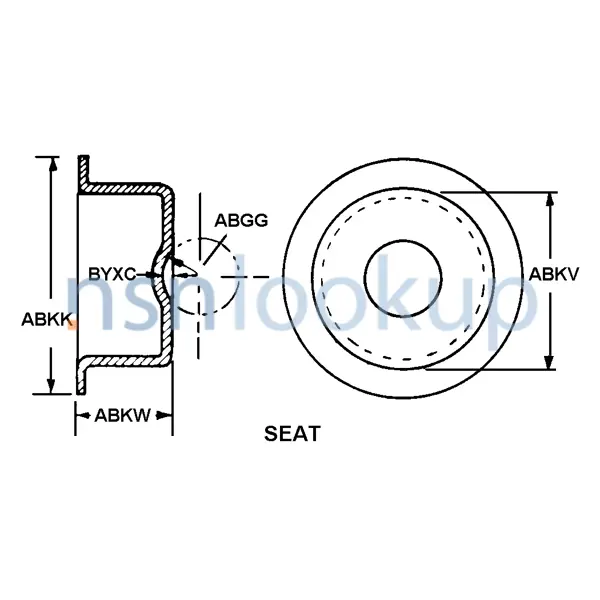

Datasheet 2530-00-311-7621
- Characteristic
- Specifications
- FIIG
- Specifications
- T319-B
- Ball Seat Depth [BYXC]
- 0.094 Inches Nominal
- Flange Diameter [ABKK]
- 2.2350 Inches Minimum And 2.2400 Inches Maximum
- Material Hardness Rating [ALME]
- 57.0 Rockwell C Minimum And 60.0 Rockwell C Maximum
- Material [MATT]
- Steel,Sae 1010 Or 1015 Or Steel,Qq-S-698,Temp 4 Or 5
- Outside Diameter [ABKV]
- 1.625 Inches Nominal
- Radius [ABGG]
- 0.383 Inches Nominal
- Overall Height [ABKW]
- 0.969 Inches Nominal
- Style Designator [STYL]
- Seat
DLA Procurement Analysis 2530-00-311-7621
Management Data 2530-00-311-7621
Air Force
- Fund:
- LP
- Items initially authorized for local purchase
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 2530-00-311-7621
Freight Information 2530-00-311-7621
2530-00-311-7621 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 2530-00-311-7621 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 2530-00-311-7621 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 2530-00-311-7621 is not classified as a special type of cargo when transported by water. 2530-00-311-7621 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 2530-00-311-7621 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
