2530-00-152-2465

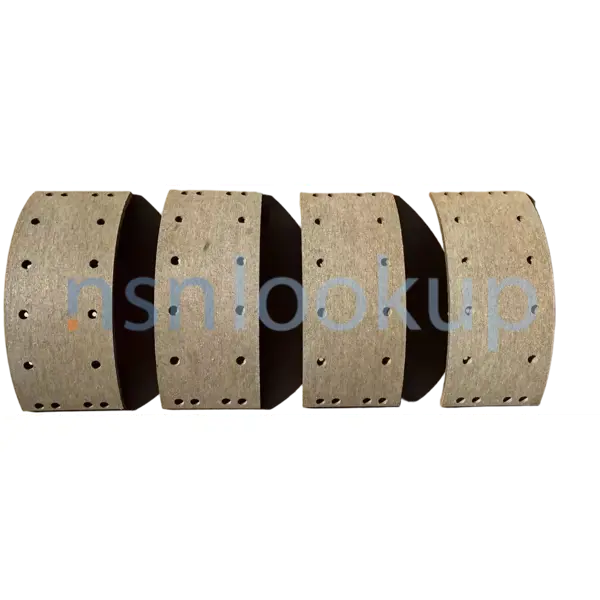

Brake Lining Kit
2530001522465 001522465 5704496 RM4731 FC12737 2510008326043
A collection of items consisting of brake linings of specific size(s) together with rivets and/or bolts for fastening the lining to the original brake shoes. Excludes brake shoe kits containing the assembled brake shoes complete with linings, and also brake lining packaged in sheets or rolls. View more Brake Lining Kit
August 2023
35
Marketplace 2530-00-152-2465
Request a Quotation from participating marketplace vendors
Related Documents 2530-00-152-2465 5+ Documents (More...)
2530-00-832-6043 LINING,UNDRILLED 1024 EA NS Request Quotation Subscribe to View Vendor Details... 5704496
BRAKE LINING KIT 4 EA NS Request Quotation RM4731 BRAKE LINING KIT 4 EA NS Request Quotation Subscribe
Restrictions 2530-00-152-2465
2530-00-152-2465 is a Brake Lining Kit that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). The precious metals content of this item is unknown.
Import and Export 2530-00-152-2465
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2530-00-152-2465
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Air Force (FGGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FGAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Apr 2002
Approved Sources 2530-00-152-2465
- Part Number
- Manufacturer
- Status
- 5704496
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- RM4731
- 82740 - Universal Friction Composites (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- FC12737
- 85117 - Abex Corp Friction Products Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2530001522465
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 2510008326043
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2530-00-152-2465
- Characteristic
- Specifications
- FIIG
- Specifications
- T129-D
- Lining Quantity [AYPJ]
- 4
- Drum Diameter For Which Designed [AYPK]
- 16.495 Inches Nominal
- Lining Width [AYPL]
- 5.500 Inches Nominal
- Lining Thickness [AYPM]
- 0.380 Inches Nominal
- Lining Length [AYPN]
- 15.221 Inches Nominal
- Nonsupply Item [AGKY]
- Fc1273m Lining
- Special Features [FEAT]
- Furnished With 64 Each Rivet Part Number 10896748-1
- Fsc Application Data [ZZZV]
- Lining And Shoe Assembly
Weapon Systems (WSDC) 2530-00-152-2465
DLA Procurement Analysis 2530-00-152-2465
- Last Stock Position:
- 43 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2530-00-152-2465
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- T
- Maintenance Float Secondary Non-depot Reparables
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 2530-00-152-2465
Freight Information 2530-00-152-2465
2530-00-152-2465 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 030020. A Sub NMFC of X. It has a NMFC Description of BRAKE LININGS FLEXIBLE NOI IN PKGS. 2530-00-152-2465 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 14680 which rates the freight between FCL and LCL. 2530-00-152-2465 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 585 for ocean manifesting and military sealift. 2530-00-152-2465 is not classified as a special type of cargo when transported by water. 2530-00-152-2465 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2530-00-152-2465
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 2530-00-152-2465 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
